IceCap K1-100 Pump Output Sleeve
SKU: IP-K1100-OS
- Direct OEM K1-100 Replacement: Factory-original replacement output sleeve designed specifically for the IceCap K1-100 Protein Skimmer.
- Precision Airtight Seal: Connects the output discharge port of the EVAIR-400 skimmer pump to the skimmer body base plate, preventing air-water mixture leaks.
- Flexible Saltwater-Safe Elastomer: Constructed from durable, non-toxic silicone material that maintains elasticity and resists hardening in marine environments.
- Vibration Isolation: Dampens micro-vibrations between the skimmer pump motor and the acrylic skimmer body to ensure ultra-quiet protein skimmer operation.
- Simple Push-Fit Installation: Slides directly onto the pump outlet nozzle and skimmer intake tube without requiring tools, clamps, or adhesives.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.

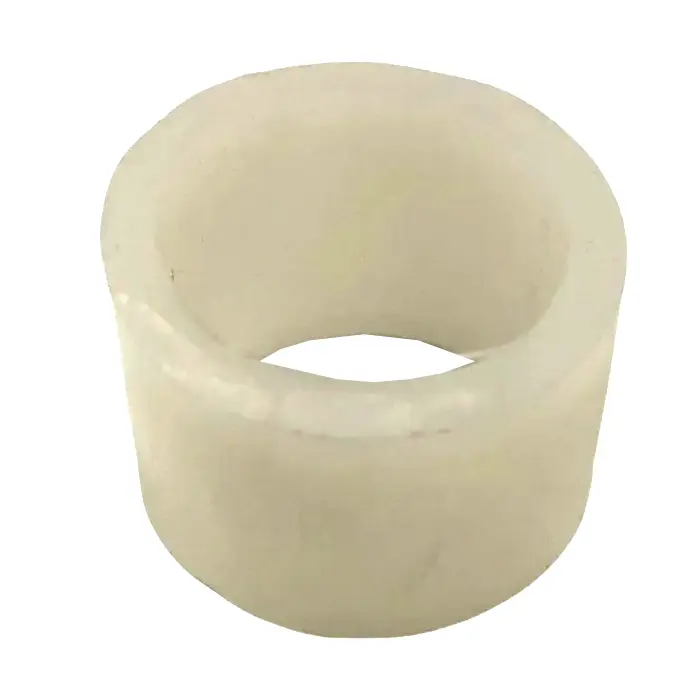

IceCap K1-100 Skimmer Pump Output Sleeve
Maintaining dense microbubble generation and quiet performance in in-sump protein skimmers requires secure, vibration-isolated plumbing connections. The IceCap K1-100 Pump Output Sleeve (SKU: IP-K1100-OS) is the official OEM replacement flexible silicone coupler engineered specifically for the IceCap K1-100 Protein Skimmer.

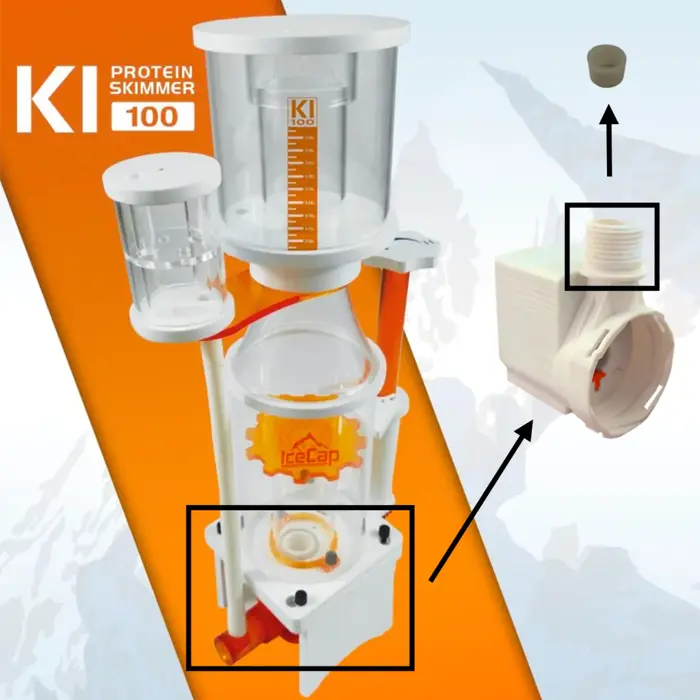

Positioned directly between the top discharge nozzle of the EVAIR-400 skimmer pump and the lower intake port of the bubble diffuser chamber, this flexible sleeve forms an airtight, watertight bridge. Over time, exposure to saltwater, ozone, or frequent maintenance disassemblies can cause original sleeves to stretch, tear, or harden. Installing a fresh IP-K1100-OS output sleeve ensures that 100% of the air-water mixture is directed into the reaction chamber without bypass or chatter noise.
Ideal Replacement Scenario
If your K1-100 skimmer is leaking microbubbles into the sump chamber from around the pump outlet, exhibits excessive pump vibration against the acrylic body, or if the original rubber sleeve was misplaced during pump cleaning, replacing it with the authentic IP-K1100-OS restores optimal performance.
(Note: Package includes (1) IceCap K1-100 Replacement Skimmer Pump Output Sleeve).
What’s Included:
(1) IceCap K1-100 Pump Output Sleeve (IP-K1100-OS)
Technical Specs:
SKU / Factory Part Identifier: IP-K1100-OS
Material: Flexible, High-Grade Saltwater-Safe Elastomeric Silicone
Color: Neutral / Clear White
Fitting Type: Push-Fit Slip Connection
Primary Compatibility: IceCap K1-100 In-Sump Protein Skimmer (EVAIR-400 Pump Outlet)
Installation & Replacement Guidelines:
Turn off power to the skimmer pump and remove the K1-100 protein skimmer from your sump.
Unbolt the skimmer base plate and detach the EVAIR-400 skimmer pump from the lower acrylic housing.
Slide the worn or damaged output sleeve off the pump discharge nozzle.
Clean any organic buildup or debris from the pump outlet and skimmer intake nipple.
Push the new IP-K1100-OS output sleeve onto the pump outlet nozzle until seated firmly, reattach to the skimmer body, and reassemble the base plate.
Pro Tips:
- Moisten Sleeve Ends During Assembly. When installing the new sleeve onto the rigid acrylic ports, dip the ends of the silicone sleeve in fresh reverse osmosis (RO) water. The moisture acts as a temporary lubricant, allowing the sleeve to slide smoothly into place without twisting or binding.
- Inspect During Quarterly Skimmer Cleanings. Check the output sleeve for flexibility every time you pull the EVAIR-400 pump for routine impeller cleaning. Replacing hardened or loose sleeves early prevents microbubble loss and keeps your skimmer running quietly.
