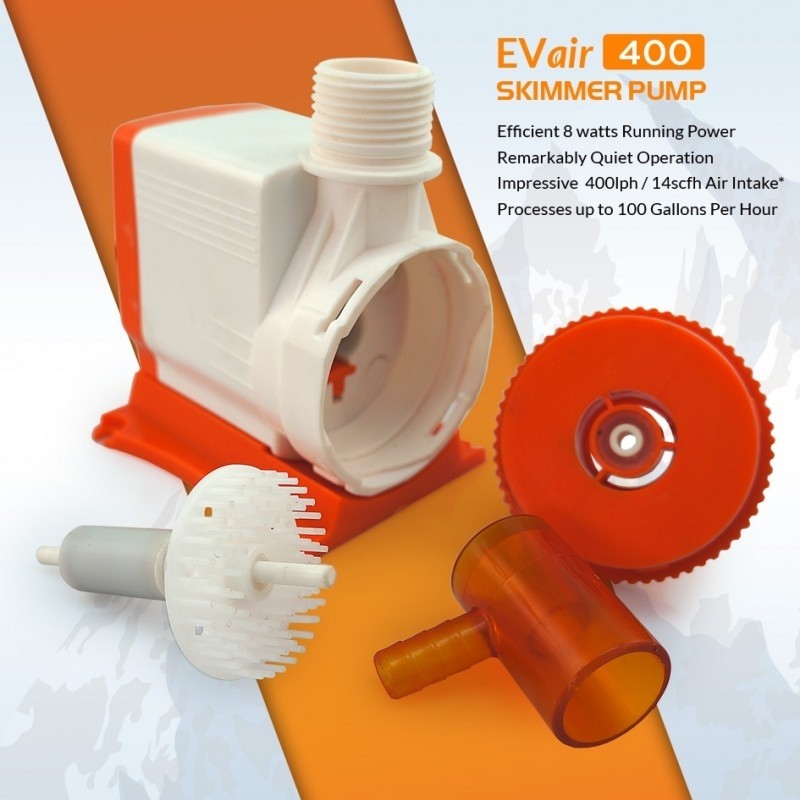

IceCap EVAIR-400 Skimmer Pump with Venturi
SKU: IC-EVAIR-400
- Direct OEM K1 Series Replacement: Factory-original replacement DC needlewheel pump complete with air intake venturi nozzle designed specifically for IceCap K1-100 and K1-130 protein skimmers.
- Compact Low-Voltage DC Motor: Operates on safe, low-voltage DC power for ultra-quiet, energy-efficient performance inside compact in-sump skimmer bodies.
- Integrated Venturi Air Nozzle: Includes the factory-matched air intake nozzle to draw ambient air directly into the water stream before entering the needlewheel chamber.
- Specialized Needlewheel Impeller: High-performance needlewheel impeller chops incoming air and water into fine micro-bubbles for dense foam head creation.
- Easy Maintenance Design: Features a removable front cover and shaft assembly for quick cleaning and mineral deposit removal.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
IceCap EVAIR-400 Skimmer Pump with Venturi (K1-100 / K1-130)
Maintaining crystal-clear water quality and low nutrient levels in marine aquariums depends on continuous, efficient protein skimming. The IceCap EVAIR-400 Skimmer Pump with Venturi (SKU: IC-EVAIR-400) is the official OEM replacement needlewheel motor assembly designed specifically for IceCap K1-100 and IceCap K1-130 Protein Skimmers. Over years of continuous submerged operation, motor windings can fatigue, calcium buildup can wear internal bearings, or electrical line faults can disrupt pump performance.
This factory-original replacement pump restores your K1 series protein skimmer to peak organic extraction capability. Engineered around a low-voltage DC motor block, the pump includes the exact snap-on venturi air nozzle required to create a rich air-water mixture. The specialized needlewheel impeller slices the incoming mixture into millions of microscopic bubbles, building a dense skimmate foam head inside K1-100 and K1-130 reaction chambers.
Ideal Replacement Scenario
If your K1-100 or K1-130 skimmer pump has suffered motor failure, exhibits shaft chatter, or fails to pull air through the venturi despite thorough cleaning, replacing the pump block with the authentic IC-EVAIR-400 restores factory skimming performance.
(Note: Package includes (1) Standalone IceCap EVAIR-400 DC Replacement Pump Block with Needlewheel Impeller and Matching Venturi Air Injection Nozzle).
What’s Included:
(1) IceCap EVAIR-400 Replacement DC Skimmer Pump Block
(1) Factory Needlewheel Impeller Assembly
(1) Snap-On Air Intake Venturi Nozzle
Technical Specs:
SKU / Factory Part Identifier: IC-EVAIR-400
Operating Voltage: Low-Voltage Direct Current (DC)
Motor Type: Needlewheel / Pinwheel DC Skimmer Pump
Air Connection: Barbed Nipple Fits Standard Flexible Air Tubing
Housing Material: Heavy-Duty Saltwater-Safe Molded Polymer
Primary Compatibility: IceCap K1-100 and IceCap K1-130 Protein Skimmers
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Installation & Set-Up Guidelines:
Disconnect power to your skimmer and remove the K1-100 or K1-130 skimmer body from the sump.
Detach the old pump block from the base plate of the skimmer body.
Attach the included venturi air nozzle onto the front suction port of the new IC-EVAIR-400 pump until firmly seated.
Mount the new pump back onto the skimmer body base plate and connect your flexible air silencer hose to the venturi air nipple.
Plug the pump power cord into your controller or power adapter, restore power, and adjust water level settings to establish proper foam height.
Pro TIps:
- Soak in Citric Acid Regularly. Soak the pump motor block and needlewheel impeller in a warm citric acid solution every 2 to 3 months. Dissolving calcium carbonate scale prevents motor drag, reduces operating temperatures, and extends motor lifespan.
- Keep Air Nipple Free of Salt Creep. Because venturis feature narrow air passages, humidity can form salt crust inside the air nipple over time. Periodically run a thin pipe cleaner or warm water through the air intake tube to maintain uninterrupted air draw.
