Octo NK170 Neck Extension
SKU: OCT-NK170
• Maximize organic export and foam stability without the expense of a full skimmer upgrade.
• Adds 3 inches of vertical height to your skimmer neck
• Significantly increases bubble dwell time for more efficient dissolved organic removal
• Precision-cut high-quality acrylic ensures a seamless, leak-free fit with the skimmer body
• Stackable design allows for aggressive tuning of internal water levels and foam dry-out
• Ideal For: SRO-2000ext; XP-2000int; Regal 170 series; Diablo DCS-170
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

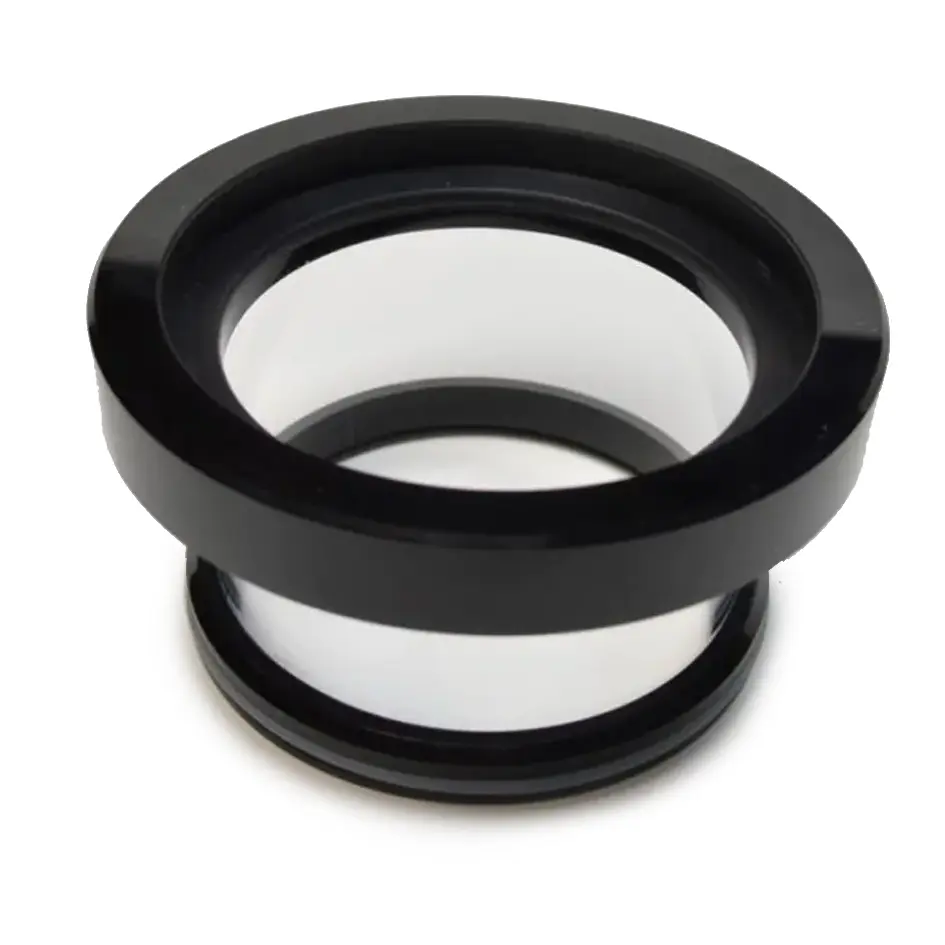

Reef Octopus NK-170 Neck Extension

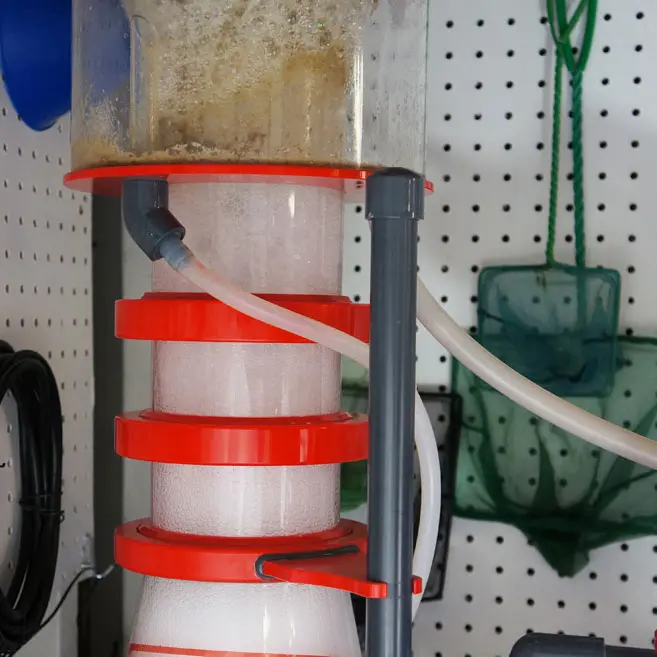

The Reef Octopus NK-170 Neck Extension is a substantial performance modification designed to increase the filtration capacity of your 170-series or 2000-series protein skimmer by adding 3 inches of neck height. This extra vertical space is vital for increasing "dwell time"—the duration air bubbles remain in contact with dissolved organics—resulting in a more stable foam head and a higher concentration of waste in the collection cup.
Crafted from premium cast acrylic, the NK-170 provides the structural integrity and clarity required for high-end reef filtration. It is particularly effective for hobbyists with heavily stocked systems who want to push their existing Regal, SRO, or XP skimmers to handle higher bioloads without purchasing a larger footprint unit. The extension is stackable, giving you the modular freedom to adjust your skimmer's performance based on your specific sump depth and nutrient export goals.
Key Features
• Substantial Height Increase: Adds 3 inches to the neck to facilitate a taller, drier foam column.
• Enhanced Dwell Time: Longer bubble-to-waste contact leads to more efficient protein removal.
• Precision Fit: Specifically engineered for the diameter and sealing requirements of Reef Octopus 170/2000 bodies.
• Premium Build: Manufactured from high-grade acrylic to match the quality of Elite and Regal series skimmers.
• Customizable Performance: Stackable design allows for precise control over foam production.
Ideal For
• Regal 170 Series: Fully compatible with Regal 170-INT, 170-SSS, and 170-EXT models.
• SRO and XP Users: Fits the SRO-2000ext and XP-2000int protein skimmers.
• SSS-1000 and XP-1000 Owners: Fits SSS-1000int and XP-1000sss space-saving models.
• Diablo Users: Directly compatible with the Diablo DCS-170 skimmer.
What's Included:
• NK-170 3-Inch Neck Extension
• Sealing O-ring
Specifications:

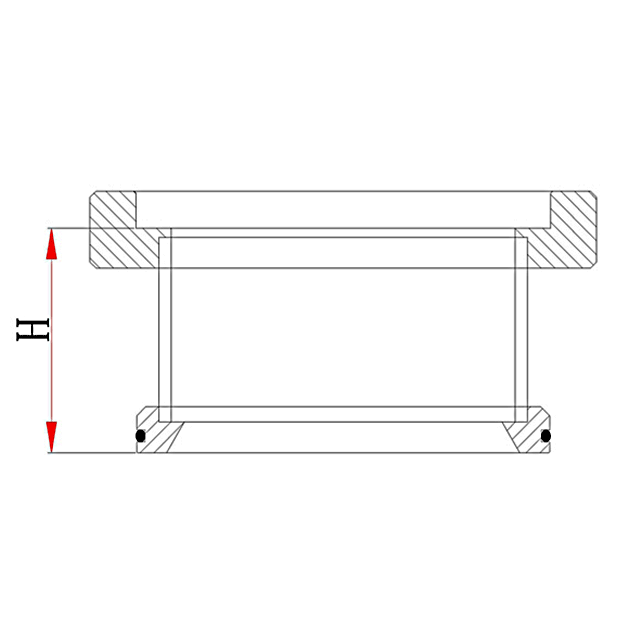

• Height: 3 inches
• Material: High-quality Cast Acrylic
• Model Compatibility: SRO-2000ext, XP-2000int, SSS-1000int, XP-1000sss, Diablo DCS-170, Regal 170(int,sss,ext)
• Warranty: 1-Year Limited Warranty
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Turn off the skimmer pump and remove the collection cup.
- Ensure the O-ring on the extension is clean and properly seated in the groove.
- Align the NK-170 extension with the top of the skimmer body and press down firmly to create a seal.
- Place the collection cup on top of the extension.
- Restart the skimmer and monitor the water level; you may need to open the gate valve to compensate for the added height.
Pro Tips:
Measure your cabinet height before purchase.
Because this is a 3-inch extension, it significantly changes the overall height of your skimmer. Ensure you have at least 4 inches of clearance above the new total height to comfortably remove the collection cup for maintenance.
Lubricate O-rings for a better seal. Applying a small amount of aquarium-safe silicone lubricant to the O-ring will prevent the acrylic from sticking and ensure a leak-proof connection, making it easier to disassemble for deep cleaning later.
Ideal for "Drier" Skimmate. If your skimmer is producing very wet, light-colored waste, adding this 3-inch extension allows the foam more time to shed water as it rises, resulting in a darker, more concentrated skimmate.
