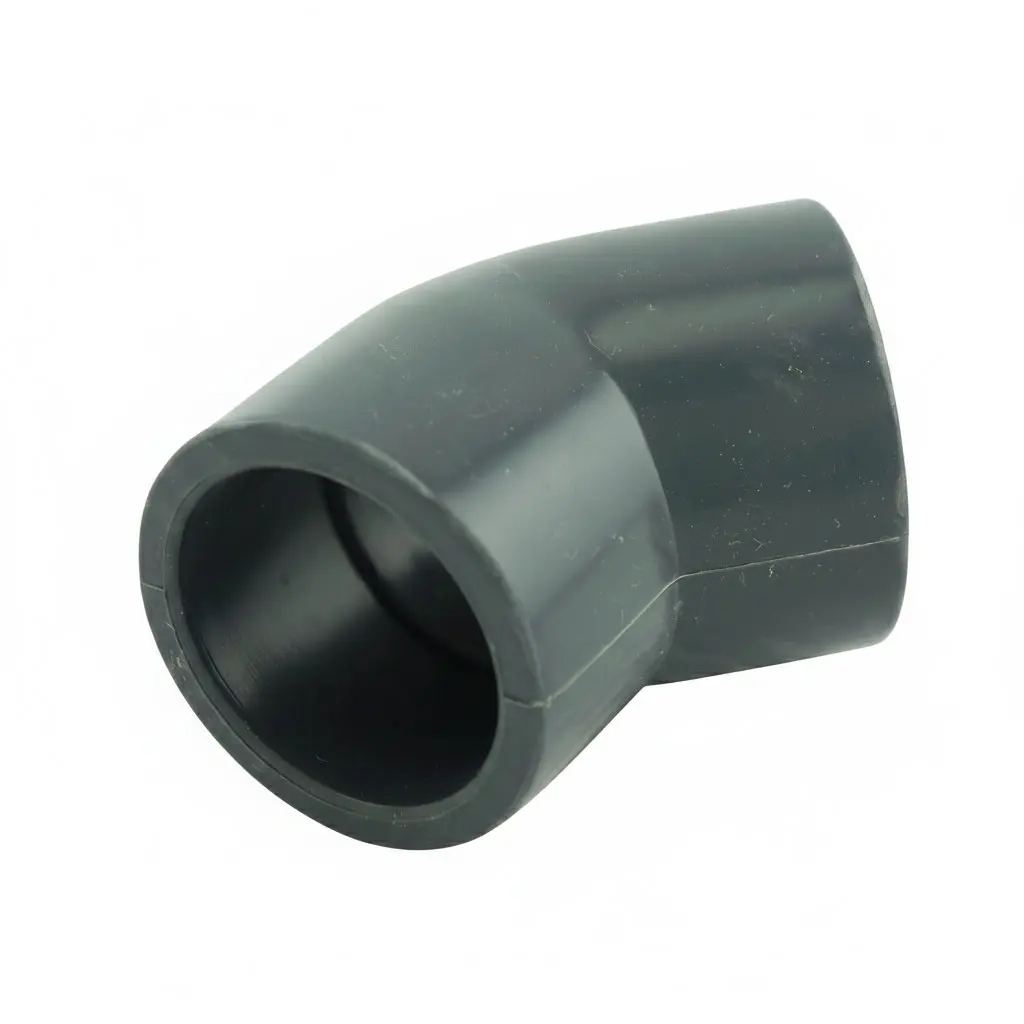

90mm Metric 45° Elbow Fitting
SKU: PVC-EL45-90
- Optimize hydraulic efficiency in large-scale filtration systems by reducing friction and backpressure.
- Precision-molded 45° angle provides a significantly smoother transition for water flow than standard 90° bends.
- Designed for 90mm metric PVC pipe (approx. 3.5" OD), common in commercial Reef Octopus discharge assemblies.
- High-impact, industrial-grade grey PVC construction built for permanent saltwater immersion.
- Deep socket "slip" connections provide a massive surface area for a secure, leak-proof solvent weld.
- Ideal For: Commercial skimmer outlets; large-scale return manifolds; 90mm metric plumbing installations.
90mm Metric 45° Elbow Fitting
The 90mm Metric 45° Elbow is a heavy-duty plumbing component engineered for high-volume water management in professional aquarium, public exhibit, and commercial aquaculture systems. This fitting is specifically sized for 90mm Metric PVC pipe, a diameter standard found on the primary output and recirculating plumbing of large-scale Reef Octopus Commercial protein skimmers.
In large-scale life support engineering, 45-degree elbows are essential for minimizing "head loss"—the energy-sapping resistance created when high-velocity water hits a sharp 90-degree turn. By utilizing a more gradual 45-degree transition, you preserve water velocity, reduce the workload on commercial-grade pumps, and significantly quiet the sound of rushing water in high-diameter pipes. Constructed from industrial-grade, saltwater-safe grey PVC, this elbow features a smooth internal bore to prevent detritus buildup and ensures a permanent, high-strength bond when solvent-welded.
Key Features
True Metric Calibration: Fits 90mm OD metric pipe—essential for maintaining factory Reef Octopus commercial-spec plumbing.
Flow-Optimized Geometry: 45° bend lowers backpressure compared to standard 90° fittings, extending the life of expensive pumps.
Industrial Grade PVC: Thick-walled construction designed to withstand the vibrations and pressures of high-capacity pump rooms.
Corrosion Proof: 100% saltwater safe and chemically inert; will not degrade or leach in marine environments.
Deep Socket Design: Slip x Slip configuration provides a massive surface area for a fail-safe solvent weld.
Ideal For
Commercial Skimmer Modification: Customizing the output of 90mm-diameter Reef Octopus skimmers to manage splash and aeration.
Large-Scale Return Lines: Routing high-volume flow for massive exhibits and public aquarium displays.
Centralized Filtration: Creating professional, low-restriction plumbing manifolds for industrial aquaculture.
Images shown are representative of the product family. Materials, sizes, and configurations may vary.
What’s Included:
(1) 90mm Metric 45° Elbow Fitting

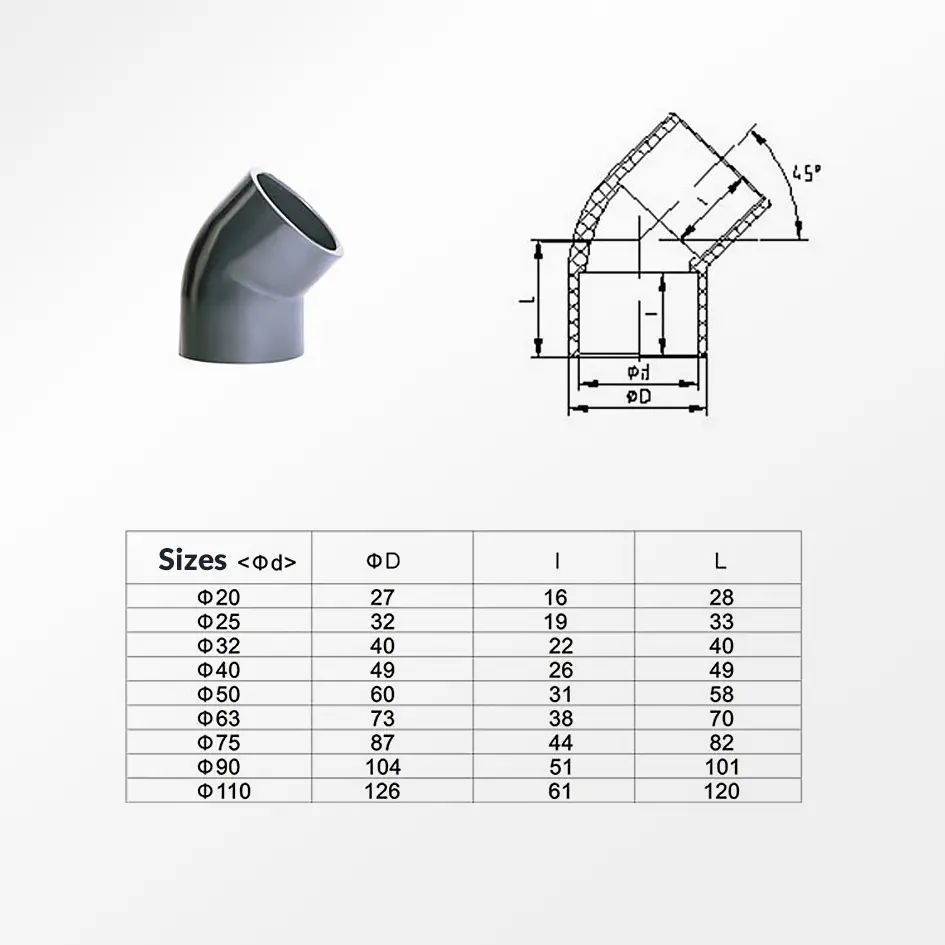

Specifications:
Size: 90mm
Angle: 45 Degrees
Connection Type: Slip x Slip (Socket)
Material: Heavy-duty Grey PVC
Compatibility: 90mm Metric Pipe ONLY
Ensure the 90mm metric pipe is cut perfectly square and deburred using a specialized tool or sandpaper.
Perform a dry-fit of the 45° elbow to verify the alignment of your large-diameter plumbing run.
Apply a generous coat of PVC primer to the pipe end and the internal socket of the fitting.
Apply a liberal layer of heavy-duty PVC solvent cement to both the pipe and the elbow.
Insert the pipe into the fitting and give it a slight quarter-turn to ensure the adhesive is fully distributed.
Hold firmly for 45–60 seconds. Allow a minimum cure time of 4 hours before pressure testing.
Pro Tips
Metric vs. Standard.
A 90mm metric fitting will not fit standard 3-inch or 4-inch USA Schedule 40/80 pipe. 90mm is a specific metric outer diameter (approximately 3.54 inches). Always measure your pipe with a caliper to ensure you are working with metric components before applying adhesive.
The "Long Sweep" Advantage. For maximum efficiency in high-flow commercial systems, use two 90mm 45° elbows separated by a short piece of pipe instead of a single 90° elbow. This creates a gentle curve that significantly reduces "rushing water" noise and turbulence.
Professional Aesthetics. In high-visibility commercial installs, use clear PVC primer rather than purple. This keeps the grey 90mm fittings looking clean and "industrial," matching the professional aesthetic of high-end Reef Octopus life support systems.
