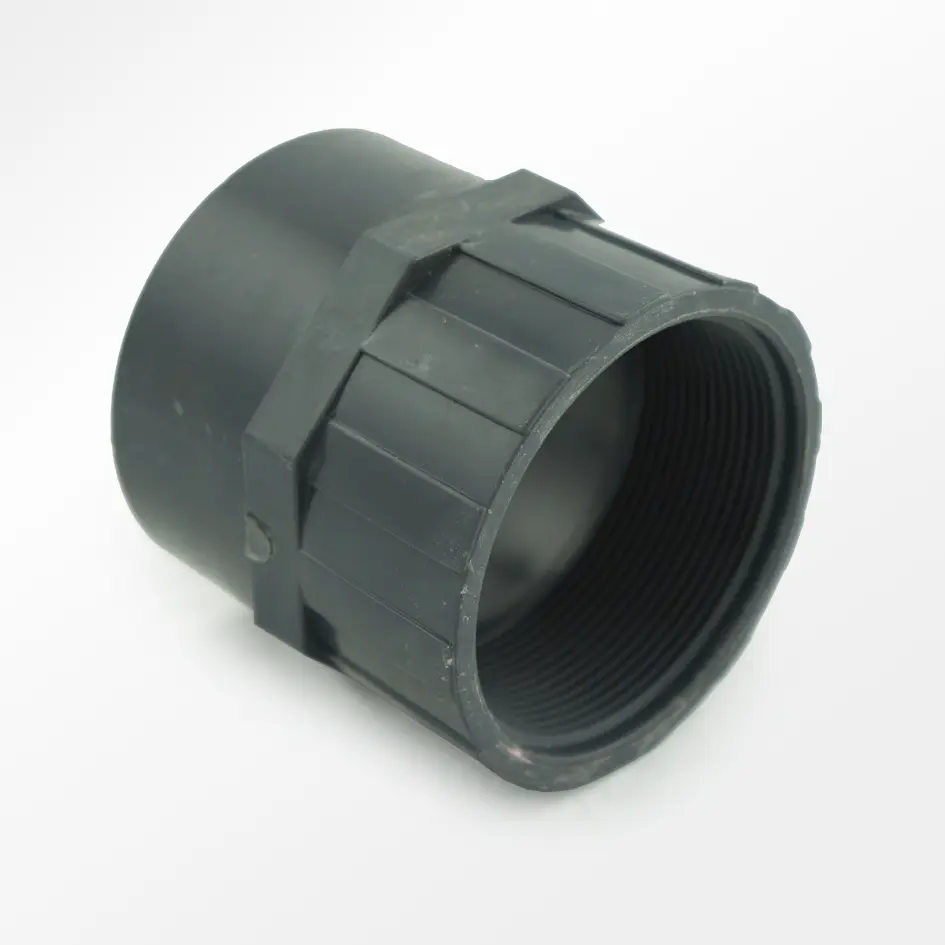

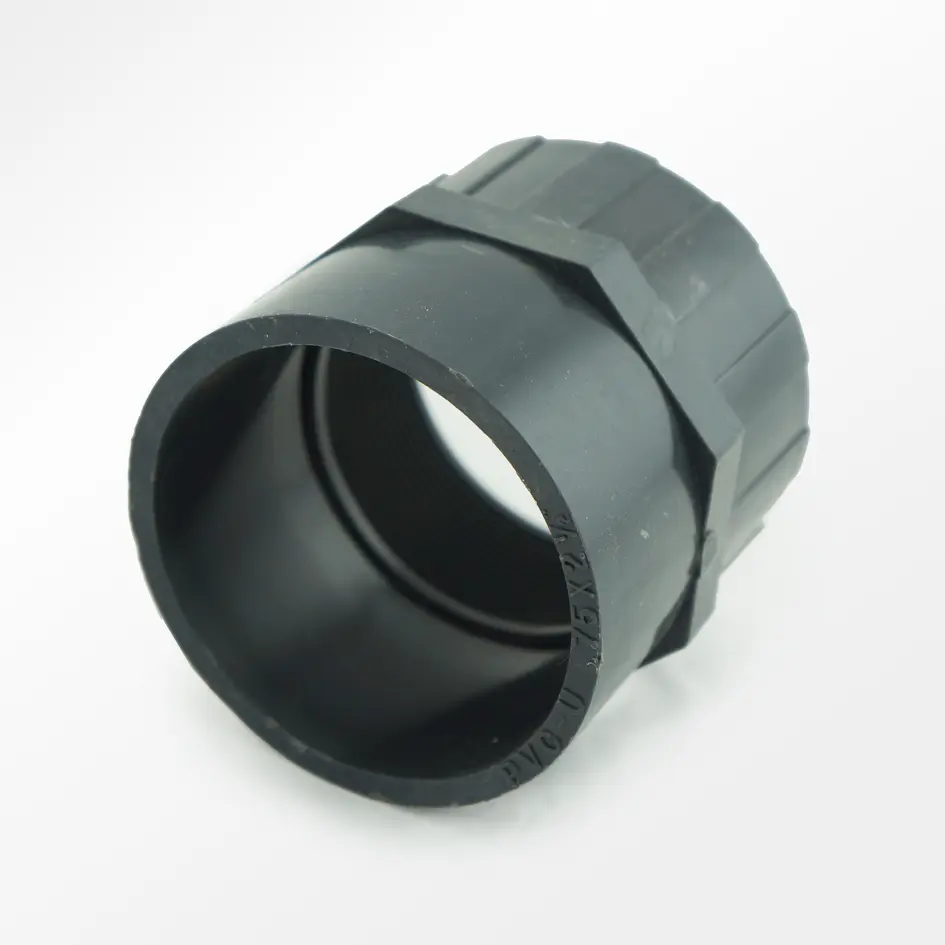

75mm Metric Female Coupling
SKU: PVC-FCPLG-75
- High-Volume Hybrid Connectivity: Safely bridges a standard 75mm metric rigid pipe directly to a 2-1/2" imperial threaded male component in a straight inline run.
- Precision Female Threading: Features clean internal threads designed to screw smoothly onto standard 2.5" male fittings without binding or cross-threading.
- Aquarium-Grade Dark Gray Finish: Modeled from professional high-purity uPVC that blends neatly with standard commercial marine sumps and custom manifold layouts.
- 100% Reef Safe Construction: Free from volatile heavy metal stabilizers and harmful plasticizers, making it safe for delicate marine corals, fish, and invertebrates.
- Reinforced Hexagonal Center Grip: Features an outer molded hex collar providing flat mechanical wrench paths to ensure safe tightening without marring the plastic.
CoralVue 75mm Metric Female to Slip Coupling Fitting (SKU: PVC-FCPLG-75)
The CoralVue 75mm Metric Female to Slip Coupling Fitting (SKU: PVC-FCPLG-75) is an essential commercial-grade fluid management component engineered to handle inline straight transitions between heavy rigid metric pipe runs and threaded equipment ports. When assembling large-scale public aquarium displays, multi-tank coral aquaculture systems, or high-volume filtration manifolds, integrating European or metric-spec plumbing setups with standard imperial threaded hardware frequently presents alignment hurdles. The PVC-FCPLG-75 removes these adaptation friction points, providing a rugged, single-piece inline straight configuration that adapts connection styles while maintaining high fluid velocity.
Molded to precise aquaculture tolerances, this dark gray coupling features an inline port pairing consisting of a 75mm smooth female slip socket and an internal female threaded port (functionally matching standard 2-1/2" gas/imperial thread profiles). The smooth slip socket is engineered to slide cleanly over 75mm metric rigid pipes for a permanent, leak-free solvent weld. The threaded opposite end provides a secure, removable mechanical link for heavy-duty bulkheads, commercial return pumps, inline UV sterilizers, or protein skimmers. This hybrid arrangement streamlines plumbing manifolds within tight aquarium stands, reducing the count of physical joints while maintaining excellent flow profile metrics.
Key Features
Molded Internal Pipe Stop: The slip socket port contains an integrated landing shoulder that ensures consistent insertion depth for a strong solvent weld.
Thick-Wall Reinforcement: The threaded socket exterior is molded with extra structural thickness to resist stress cracking when tightening down male fittings.
Smooth Internal Chamber: A polished interior channel limits fluid shearing, localized turbulence, and detritus accumulation zones.
(Note: This retail SKU contains (1) individual standalone CoralVue 75mm Female Thread x Slip Coupling fitting. Thread sealants, solvent primers, and rigid piping are sold under separate product categories).
What’s Included:
(1) CoralVue PVC-FCPLG-75 75mm Metric Female to Slip Coupling Fitting

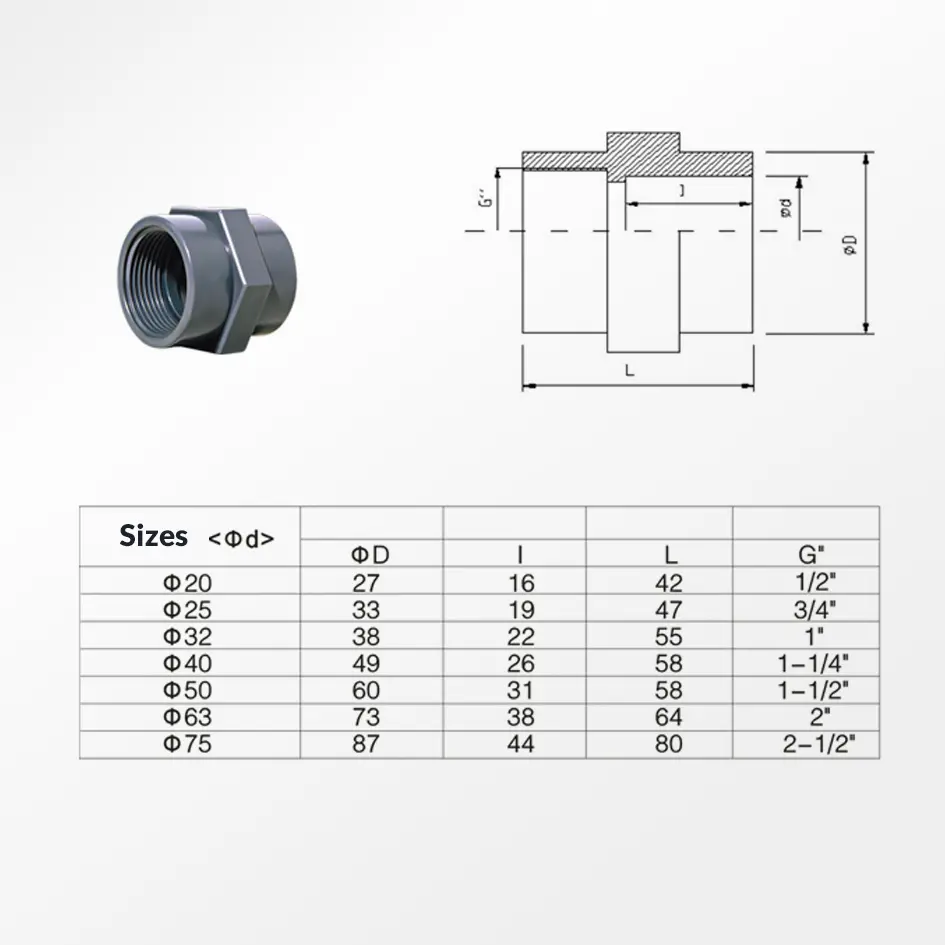

Technical Specs:
Official Manufacturing Title: 75mm Metric Female Thread to Slip Straight Coupling
SKU / Factory Part Identifier: PVC-FCPLG-75
Slip Connection Hub Side: 75mm Internal Diameter Female Socket (Accepts 75mm Metric Pipe)
Thread Connection Hub Side: Internal Female Thread (Matches 2-1/2" Imperial Male NPT/BSP Profiles)
Primary Material Composition: Heavy-Wall Unplasticized Polyvinyl Chloride (uPVC)
Maximum System Pressure Rating: Up to 150 PSI continuous operational threshold
Maximum Thermal Operating Limit: 140°F (60°C) continuous service capacity
Primary Injection Color Finish: Dark Industrial Gray
While most of our equipment carries a one-year manufacturer's warranty, consumable products like fish and coral foods are not covered under traditional warranty terms due to their perishable nature and varied storage conditions. However, we fully stand behind the quality of every product we sell. If you experience any issues with your food purchase shortly after receiving it, such as concerns about freshness, packaging integrity, or product quality, please contact us at [email protected]. We're committed to making it right and will work with you to resolve any problems quickly and fairly.
- Ensure the 75mm metric rigid pipe is cut cleanly at a true 90-degree angle. Remove all plastic burrs along the cut edge with sandpaper or a deburring tool.
- Dry-fit the 75mm pipe into the smooth slip port of the coupling. The pipe should seat snugly against the internal shoulder stop. Mark the insertion depth on the pipe with a pencil.
- Apply a thin, even layer of PVC primer followed by PVC solvent cement to the outside of the pipe end and the internal wall of the coupling's slip socket.
- Push the pipe firmly into the slip socket with a quick 1/4 turn to spread the cement uniformly. Hold it in place for 15 seconds to lock down the chemical weld.
- Inspect the female threaded port to ensure it is clean and free of debris. Wrap 4 to 5 wraps of standard PTFE thread sealant tape clockwise around the male threads of the companion fitting.
- Thread the male fitting into the coupling by hand until snug. Use a strap wrench or wrench on the integrated hex collar to turn it an additional 1 to 1.5 turns to secure a watertight mechanical seal. Do not overtighten.
Pro Tips:
- Never Apply Solvent Glue to the Threaded Connection Side.
CRITICAL AQUARIUM PLUMBING DESIGN TIP: When assembling this hybrid straight coupling, only apply PVC primer and cement to the smooth 75mm slip socket side. Applying solvent glue to the threaded port will permanently bond the threads, ruin the internal engagement profile, and melt the sealing surfaces, destroying the fitting's ability to create a removable mechanical seal.
- Always Wrap Thread Tape Clockwise to Prevent Bunching. When wrapping your male fitting with PTFE thread tape before screwing it into the female side of the coupling, always wrap the tape in a clockwise direction (looking directly at the open end of the threads). If you wrap counter-clockwise, the tape will unravel and bunch up as you screw the fitting in, leading to micro-gaps and persistent weeping leaks under system pressure.
- Hand-Tighten First to Prevent Cross-Threading Damage. Because uPVC threads can be stripped by mismatched metal or hard plastic fittings, always start screwing your male component in by hand. You should be able to complete 2 to 3 full rotations smoothly without encountering hard resistance. If it binds immediately, back it out, re-align the fitting, and try again to avoid damaging the internal thread profile.
