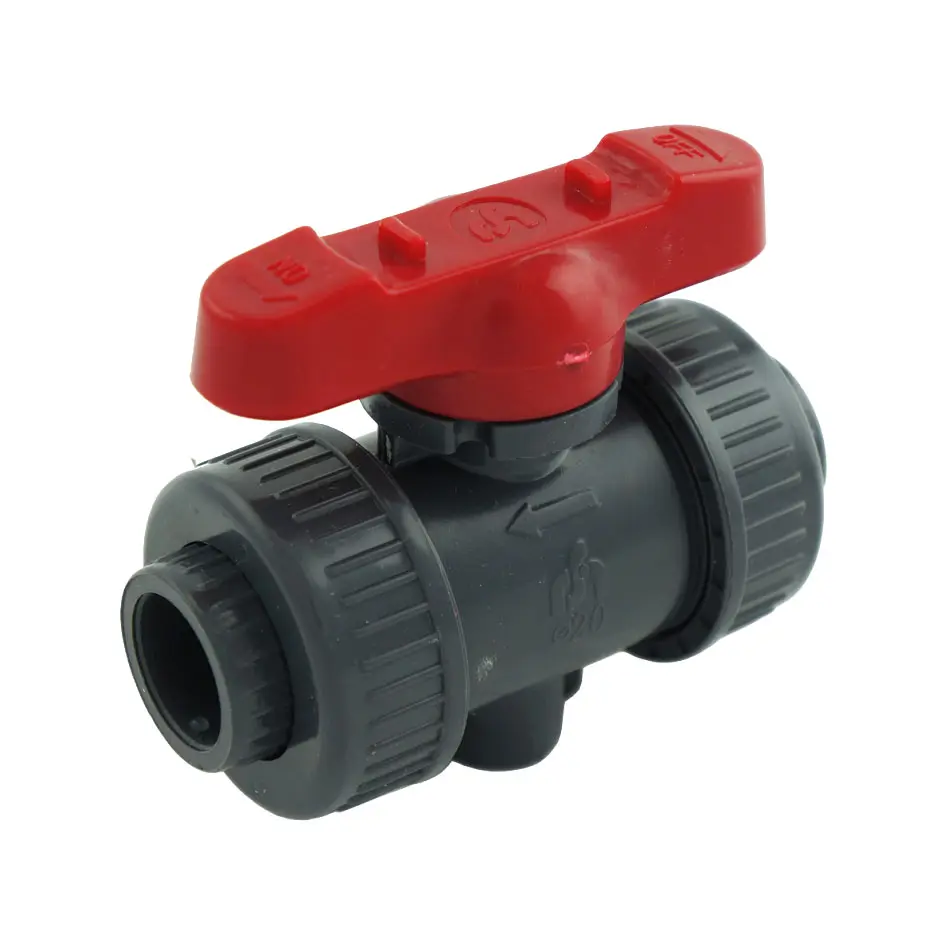

32mm Metric Double Union Ball Valve
SKU: PVC-BV-32
- Fully Serviceable: Double union design allows the valve body to be removed for cleaning or seal lubrication without cutting any pipe.
- Metric Standard: Precision-sized for 32mm metric PVC pipe (approx. 1.25" OD), the standard for Reef Octopus return and discharge plumbing.
- Unrestricted Flow: Full-port internal design ensures maximum water throughput and reduces back-pressure on return pumps.
- Industrial Build: Heavy-duty grey UPVC construction with saltwater-safe EPDM seals and PTFE seats.
- Ergonomic Control: Large handle provides smooth, easy leverage for precise adjustment of water volume.
- Ideal For: Primary return lines; large-scale reactor feeds; manifold isolation; 32mm metric plumbing systems.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
32mm Metric Double Union Ball Valve
The 32mm Metric Double Union Ball Valve is a robust, professional-grade flow management solution designed for mid-to-large scale aquarium systems. Engineered specifically for 32mm Metric PVC pipe, this valve is a critical component for regulating high-volume water flow in Reef Octopus filtration assemblies and custom European-spec reef plumbing.
The True Union (Double Union) architecture is essential for long-term system maintenance. By simply unscrewing the threaded collars on either end, the entire valve body can be detached from the plumbing run. This enables the user to clear internal blockages (such as stray snails or calcium deposits) and service the internal gaskets without the need for tools or re-gluing. Constructed from industrial-grade grey UPVC, this valve provides superior structural strength and a high-end "factory" aesthetic that far surpasses standard white residential hardware.
Key Features
True Metric Calibration: Fits 32mm OD metric pipe—essential for maintaining factory Reef Octopus and Maxspect equipment.
High-Performance Sealing: Features chemical-resistant EPDM O-rings and low-friction PTFE seats for a leak-proof seal and effortless handle operation.
Flow Efficiency: Optimized internal geometry minimizes turbulence, allowing your pumps to maintain high velocity and GPH.
Marine Grade Materials: 100% non-corrosive and chemically inert; will not leach metals or harmful substances into your reef.
Secure Installation: Deep socket slip connections provide a massive surface area for a permanent, high-strength solvent weld.
Ideal For
Main Return Lines: Controlling the output of high-performance return pumps for aquariums 100 gallons and larger.
Equipment Isolation: Allowing for the quick shut-off of UV sterilizers, chillers, or large media reactors during maintenance.
Modular Sump Plumbing: Creating a professional manifold system that can be easily modified or cleaned.
Images shown are representative of the product family. Materials, sizes, and configurations may vary.
What’s Included:
(1) 32mm Metric Double Union Ball Valve

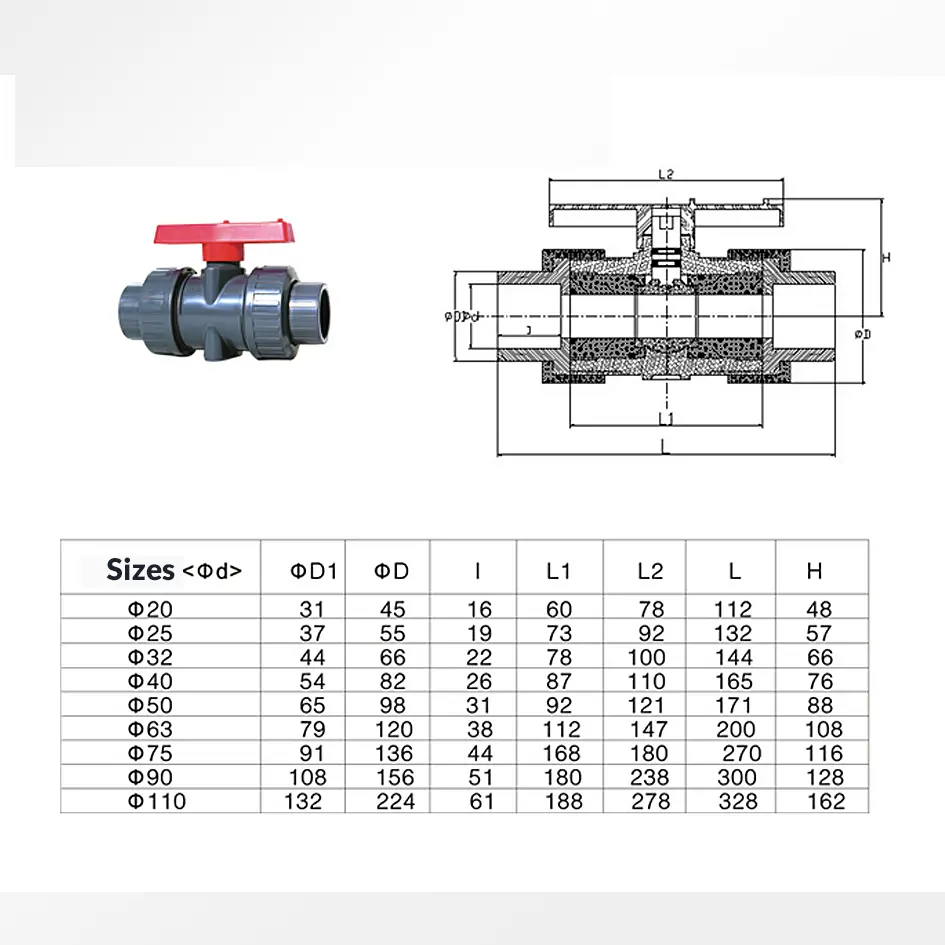

Specifications:
Size: 32mm
Type: Double Union (True Union)
Connection: Slip x Slip (Socket)
Body Material: Industrial Grade Grey UPVC
Seal Material: EPDM / PTFE
Compatibility: 32mm Metric Pipe ONLY
Unscrew the two union nuts from the valve and slide them onto your 32mm metric pipe ends.
Ensure the pipe ends are cut square and deburred to prevent damaging the internal O-rings.
Solvent-weld the union sockets to the pipe ends using a high-quality PVC cement.
Once the adhesive has fully cured, seat the valve body between the sockets, checking that the EPDM O-rings are clean.
Tighten the union nuts by hand until snug. Do not use a pipe wrench, as hand-tightening provides a perfect seal and prevents cracking the PVC nuts.
Rotate the handle to ensure smooth movement before turning on the main system pump.
Pro Tips:
- Metric vs. Standard. A 32mm metric valve will not fit 1-inch or 1.25-inch USA Standard pipe. 32mm is approximately 1.26 inches, whereas US 1.25" pipe has a 1.66-inch OD. Always verify your pipe size with a caliper to ensure you are purchasing the correct metric component.
- Prevent "Stuck" Valves. In high-calcium reef systems, ball valves can become difficult to turn over time. We recommend fully opening and closing the valve once a month to prevent "salt creep" and calcium from locking the ball in place.
- The Silicone Secret. During initial assembly or annual maintenance, apply a thin film of 100% silicone grease to the union O-rings. This ensures a watertight seal and makes it much easier to unscrew the nuts a year down the line.
