63/40mm Metric Reducing Bushing
SKU: PVC-RDBSH-6340
- Compact Flush Reducer: Fits completely flush inside a standard 63mm female slip fitting to minimize vertical space and streamline complex manifolds.
- True Metric Calibration: Engineered with a 63mm outer spigot diameter and a 40mm inner slip socket port for a seamless, watertight solvent fit.
- Aquarium-Grade Dark Gray Finish: Neutral industrial aesthetic matches professional sumps, reef reactors, and high-end cabinetry manifolds.
- 100% Reef Safe Construction: Free from volatile heavy metal stabilizers and harmful plasticizers, making it safe for delicate marine corals and invertebrates.
- Heavy-Wall Structure: Molded from premium unplasticized PVC (uPVC) with integrated radial reinforcement ribs to handle high torque and vibration.
CoralVue 63/40mm Metric Reducing Bushing Fitting (SKU: PVC-RDBSH-6340)
The CoralVue 63/40mm Metric Reducing Bushing Fitting (SKU: PVC-RDBSH-6340) is a crucial space-saving fluid management component engineered to step down pipe sizing inside tight reef cabinet environments. When building advanced marine aquariums or multi-tank custom manifolds, transitioning from larger main drainage lines or master overflow drops down to standard secondary drain runs is frequently required. Unlike bulky inline reducing couplings that add length to your pipe runs, this flush-style reducing bushing slides completely inside an existing 63mm metric female socket, changing its input diameter to 40mm without taking up extra physical space.

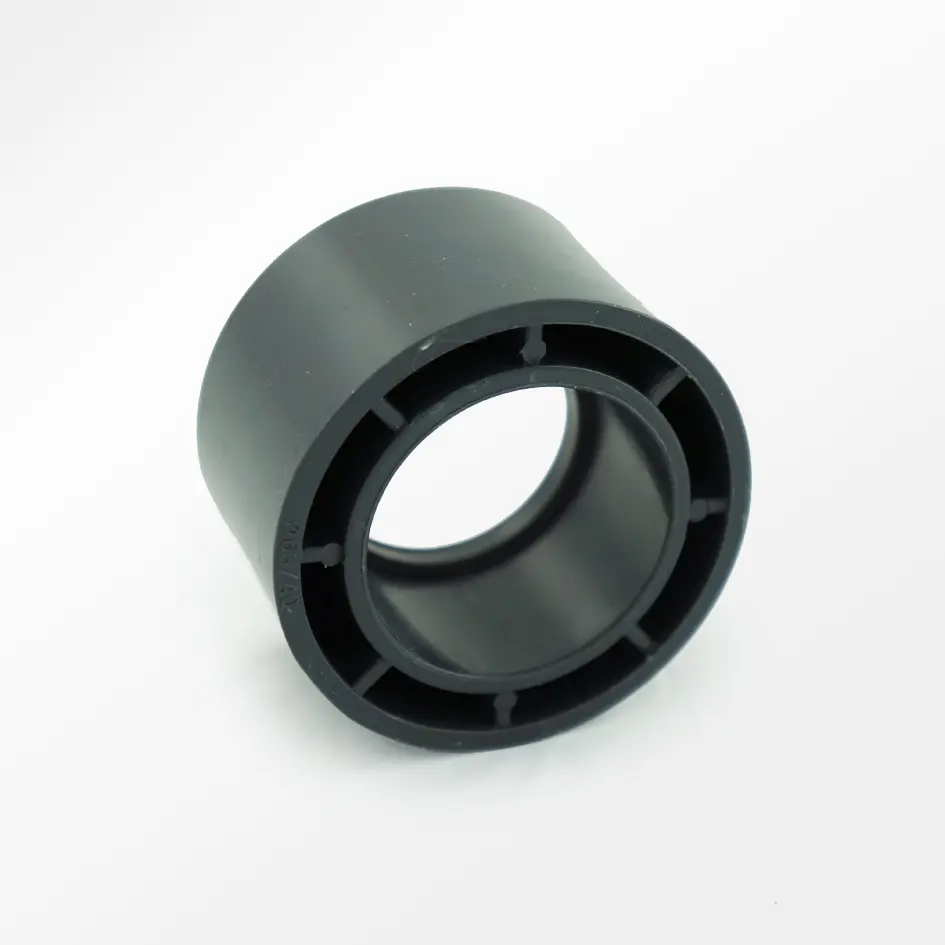

Molded to precise aquaculture tolerances, this dark gray bushing features a 63mm outer spigot end (which acts as a male pipe end) and a 40mm inner slip socket (female receiver). By solvent welding this fitting directly into a 63mm elbow, tee, union, or ball valve, you instantly convert that socket to accept a standard 40mm metric rigid pipe. Because of the significant step-down size difference, the interior of the fitting is structurally reinforced with radial structural ribs, keeping your plumbing layout clean, professional, and free of physical flex under pressure.
Key Features
Molded Internal Stop Ridge: The inner 40mm slip socket contains a built-in landing shoulder to ensure consistent insertion depth for a strong solvent weld.
Polished Flow Path: The smooth interior transitional wall limits localized fluid drag and prevents organic detritus from settling within the fitting.
uPVC Composition: Offers exceptional chemical and corrosion resistance against highly concentrated saltwater environments.
(Note: This retail SKU contains (1) individual standalone CoralVue 63mm to 40mm Reducing Bushing fitting. Solvent primers, cements, and rigid piping are sold under separate product categories).
What’s Included:
(1) CoralVue PVC-RDBSH-6340 63/40mm Metric Reducing Bushing Fitting
Technical Specs:
Official Manufacturing Title: 63mm Spigot x 40mm Female Slip Reducing Bushing
SKU / Factory Part Identifier: PVC-RDBSH-6340
Fitting Outer Connection (Spigot): Fits inside a standard 63mm Metric female socket
Fitting Inner Connection (Slip Socket): Accepts standard 40mm Metric rigid pipe
Primary Material Composition: Heavy-Wall Unplasticized Polyvinyl Chloride (uPVC)
Maximum System Pressure Rating: Up to 150 PSI continuous operational threshold
Maximum Thermal Operating Limit: 140°F (60°C) continuous service capacity
Primary Injection Color Finish: Dark Industrial Gray
While most of our equipment carries a one-year manufacturer's warranty, consumable products like fish and coral foods are not covered under traditional warranty terms due to their perishable nature and varied storage conditions. However, we fully stand behind the quality of every product we sell. If you experience any issues with your food purchase shortly after receiving it, such as concerns about freshness, packaging integrity, or product quality, please contact us at [email protected]. We're committed to making it right and will work with you to resolve any problems quickly and fairly.
- Ensure the 40mm rigid pipe is cut cleanly at a true 90-degree angle and deburred. Clean both the bushing's inner socket and outer spigot body.
- Apply a thin, even layer of PVC primer to the inside of the 63mm receiving fitting's socket and the outside of the bushing's 63mm spigot body.
- While wet, apply PVC solvent cement over both primed surfaces and insert the bushing fully into the 63mm fitting, rotating it 1/4 turn to spread the glue. Hold firmly for 15 seconds.
- Once the bushing is locked in place, prime the inside of the bushing's 40mm inner socket and the outside of the 40mm metric pipe.
- Apply PVC solvent cement to both 40mm primed surfaces, insert the 40mm pipe into the bushing until it bottoms out, and hold for 15 seconds.
- Allow a full 24-hour cure time before introducing high-pressure saltwater flow to guarantee the integrity of the chemical welds.
Pro Tips:
- Do Not Attempt to Glue Imperial Pipe Directly Into This Metric Fitting.
CRITICAL AQUARIUM PLUMBING DESIGN TIP: This reducing bushing is engineered to exact metric dimensions. The inner slip port accepts only standard 40mm metric rigid pipe. Do not attempt to force standard 1-1/4" domestic Schedule 40 or Schedule 80 pipe into the port. Doing so will result in a sloppy, mismatched connection that will fail under pressure.
- Use the Flush Design to Keep Your Cabinet Plumbing Organized. Because this bushing sits completely flush inside a standard 63mm female socket, it allows you to step down line sizes instantly right at your manifolds. By placing this bushing directly into a 63mm tee or union, you can transition straight down to 40mm for secondary drainage lines or return loops without adding extra length or weight to the plumbing line.
- Always Wipe Away Excess Glue Squeeze-Out. When welding the bushing inside your 63mm fitting, a small bead of solvent cement will slide forward. Be sure to wipe away any wet glue from the inner 40mm socket entry using a clean swab or cloth before inserting the 40mm pipe, ensuring a clean mating surface for the final joint.
