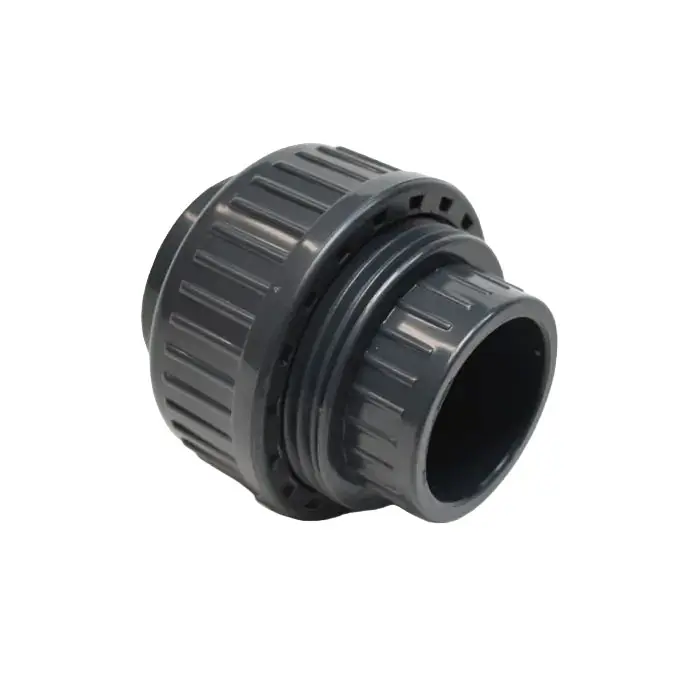

110mm Metric Union Coupling
SKU: PVC-UNCPLG-110
- Serviceable Connection: Allows for the rapid, tool-free disconnection of 110mm metric plumbing lines for cleaning or system modification.
- Commercial Capacity: Precision-sized for 110mm metric PVC pipe (approx. 4.33" OD), the industrial standard for massive Reef Octopus life support.
- Leak-Proof Seal: Features a high-grade EPDM O-ring that creates a bubble-tight seal without the need for Teflon tape or thread sealant.
- Industrial Build: Constructed from thick-walled, high-impact grey UPVC for superior pressure resistance and long-term durability.
- Stress-Free Repairs: Enables "drop-in" repairs in rigid 110mm plumbing runs where a standard slip coupling cannot be used.
- Ideal For: Connecting commercial pumps; main discharge lines; high-volume manifold service points.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
110mm Metric Union Coupling
The 110mm Metric Union Coupling is an essential industrial component designed for the modular assembly and maintenance of high-volume water distribution systems. Precision-molded for 110mm Metric PVC pipe, this union provides a high-pressure, removable connection point, allowing massive plumbing sections to be serviced, cleaned, or reconfigured without cutting the pipe.
In professional life support engineering, 110mm lines carry immense weight and hydraulic volume. Using a union near primary pumps or filtration intakes is critical for operational efficiency. This union features a heavy-duty threaded collar and a precision-seated O-ring that ensures a 100% water-tight seal under commercial flow rates. Manufactured from industrial-grade grey UPVC, it matches the professional "factory" aesthetic of Reef Octopus commercial equipment and is built to withstand the rigors of high-pressure pump rooms.
Key Features
True Metric Calibration: Fits 110mm OD metric pipe—the standard for Reef Octopus commercial-spec and European large-scale hardware.
Tool-Free Disassembly: The oversized threaded collar can be hand-tightened and loosened, facilitating rapid maintenance of pumps and valves.
High-Flow Interior: The internal bore is designed to match the 110mm pipe ID, minimizing turbulence and friction loss across the joint.
Saltwater Proof: 100% non-corrosive construction with a chemical-resistant EPDM O-ring for permanent use in marine environments.
Structural Reliability: Heavy-wall UPVC construction resists deformation and water hammer in industrial applications.
Ideal For
Commercial Pump Isolation: Installing on the intake and discharge of 110mm pumps for easy removal and servicing.
Modular Manifolds: Creating removable sections in 110mm distribution blocks for easier cleaning.
Primary LSS Maintenance: Providing a break-down point in main 110mm return headers for periodic internal inspection.
What’s Included:
(1) 110mm Metric Union Coupling (2 Tailpieces, 1 Collar, 1 O-Ring)
Specifications:
Size: 110mm
Connection Type: Slip x Slip (Socket) with Threaded Disconnect
Material: Industrial Grade Grey UPVC
Seal Material: EPDM O-Ring
Compatibility: 110mm Metric Pipe ONLY
- Ensure both 110mm metric pipe ends are cut perfectly square and thoroughly deburred.
- Disassemble the union. Slide the threaded collar over one pipe end before gluing the tailpiece.
- Clean the pipe ends and the internal sockets of both tailpieces with a dedicated PVC cleaner.
- Apply PVC primer and heavy-duty solvent cement to the pipe ends and tailpiece sockets.
- Push the tailpieces onto the pipes until they seat fully. Hold for 60 seconds.
- Once the glue has cured, ensure the EPDM O-ring is seated cleanly in its groove.
- Align the two tailpieces and thread the collar onto the opposite side, tightening by hand until firm.
Pro Tips:
- Metric vs. Standard 4-Inch. A 110mm metric union will not fit standard US 4-inch pipe. 110mm is approximately 4.33 inches, while US 4-inch pipe has a 4.5-inch OD. Always confirm your pipe diameter with a caliper before installation.
- O-Ring Maintenance. For a perfect seal every time, apply a small amount of food-grade silicone grease to the O-ring. This prevents the rubber from drying out and ensures the collar can be easily unscrewed after years of service.
- Hand Tighten Only. Even at 110mm, unions are designed to be hand-tightened. Avoid using large pipe wrenches, as over-torquing can crack the collar or distort the O-ring, leading to persistent leaks.
