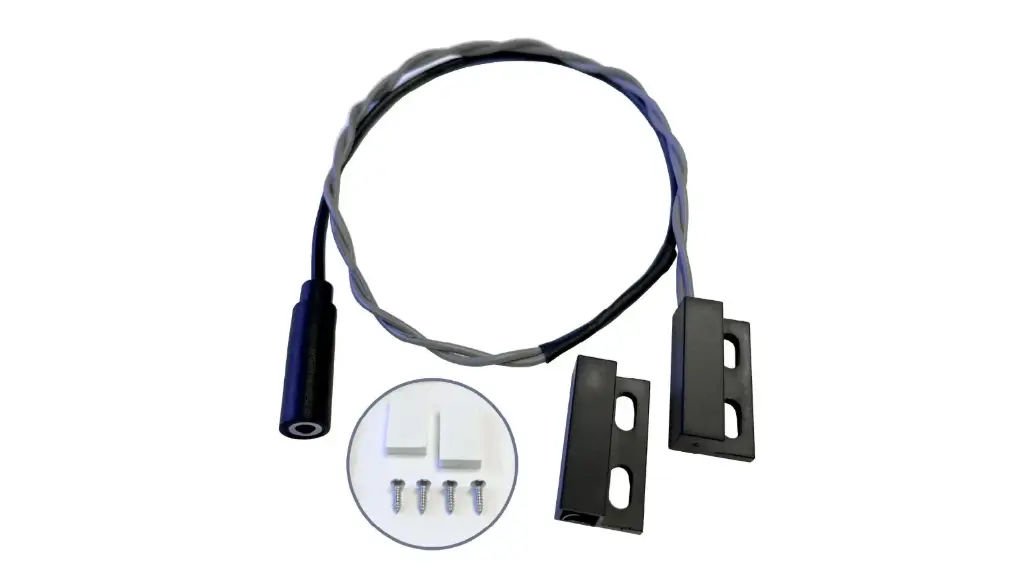

HYDROS Door Magnet Sensor
SKU: HDRS-DOOR-MAG
Magnetic door and cabinet sensor that integrates with HYDROS to detect open or closed states for alerts, automation, and system safety.
Can be used via a 0-10v IN Port with a 0-10v Quad Cable OR a HYDROS 3.5mm Sense Port Adaptor Cable
Can be used via a 0-10v IN Port with a 0-10v Quad Cable OR a HYDROS 3.5mm Sense Port Adaptor Cable

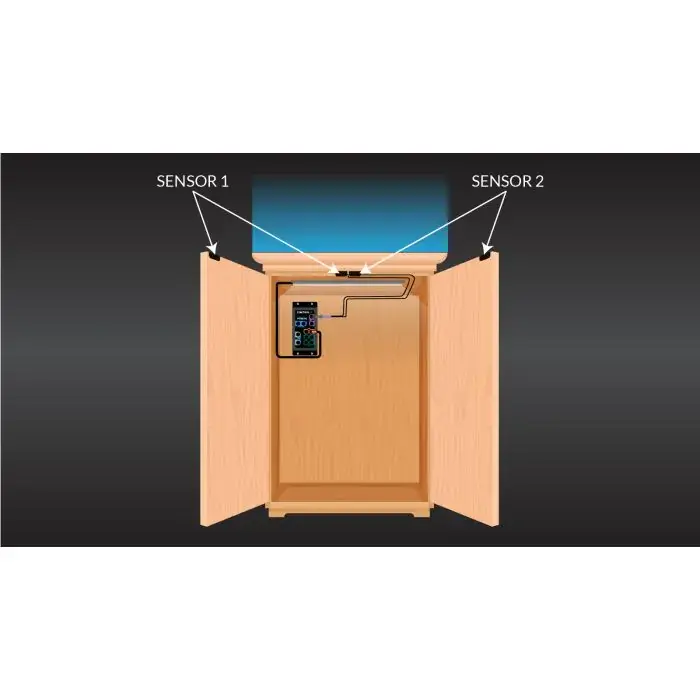

Allows you to add a sensor to your cabinet door and be able to trigger an event such as sound an alarm or turn ON the cabinet lights.
For a full set of instructions, please visit:
https://www.coralvuehydros.com/product-support/hydros-control/add-0-10v-input/
- Sensing distance: 10mm-15mm.
- Product size: 29*15.5*9mm
- Sensing distance: 10mm-15mm
- Service life: 1000000 times.
- Working current: 0.5A/Working voltage: 100V (1-100V)/Maximum power: 10W.
Required:
- HYDROS Control with 0-10V INPUT port
- HYDROS 0-10V Quad Cable with at least ONE open channel
HYDROS Door Magnet Sensor Specs:

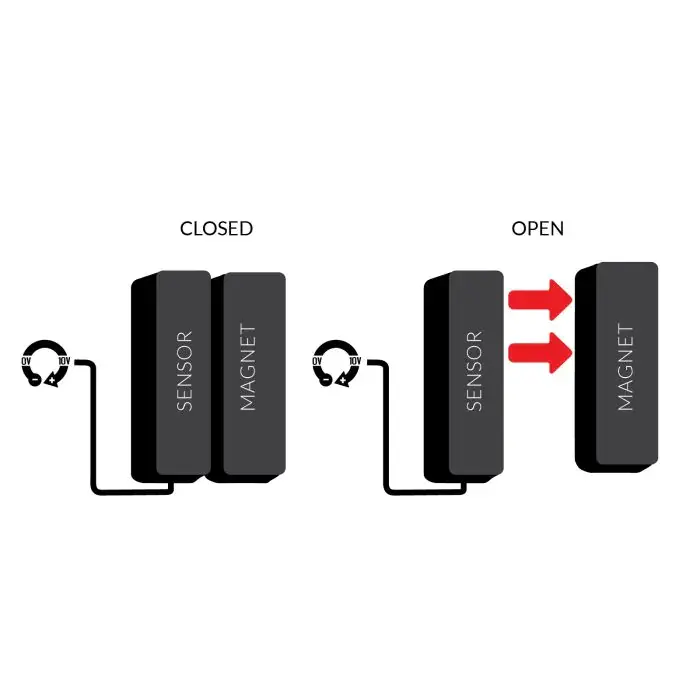

- Sensor type: Magnetic reed switch (open/closed detection)
- Function: Detects door, cabinet, or panel open/closed status
- Connection: HYDROS Sense Port or 0-10v IN Port, proper adapters needed

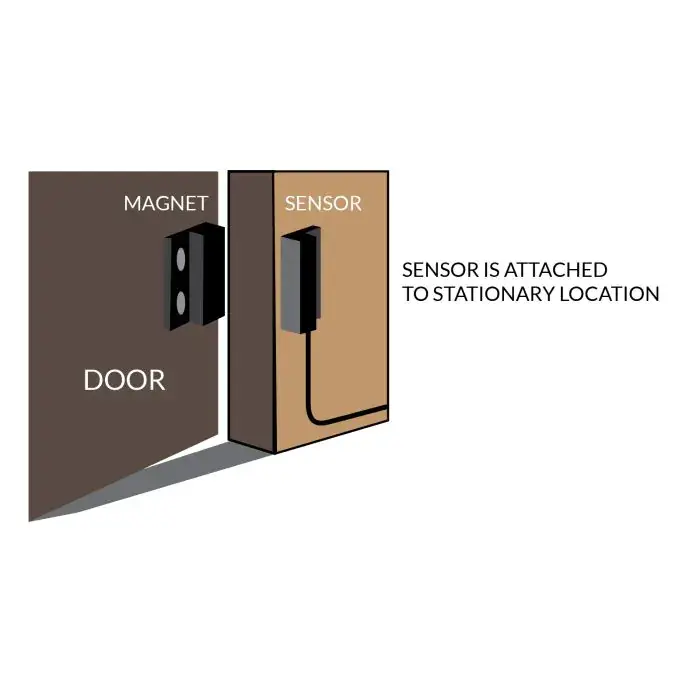

- Mounting: Magnetic alignment between sensor and magnet
- Environment: Suitable for aquarium stands and fish rooms
- Application: Alerts, automation rules, and system safety monitoring
