Octo Regal 200INT Collection Cup
SKU: ROP-CC-REGAL200
- Direct OEM Skimmer Fit: Factory-original replacement collection cup engineered specifically for the Reef Octopus Regal 200INT internal protein skimmer body.
- Integrated Skimmate Drain Port: Equipped with a pre-drilled drain outlet and shut-off plug to allow direct plumbing into external waste collectors or shut-off containers.
- Optical-Grade Cast Acrylic: Fabricated from thick, marine-grade cast acrylic for optical clarity, high durability, and resistance to saltwater crazing.
- Complete with Matching Vented Lid: Includes the authentic form-fitting acrylic lid with perimeter air vents to contain bubbling foam mist while equalizing neck pressure.
- Effortless Quick-Release Detachment: Seats cleanly over the inner neck riser with an airtight friction seal, allowing smooth, splash-free removal during maintenance.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
![[Consumer Shipping Information] 📦 Shipping FAQ](/web/image/dr.website.content/27/image/%5BConsumer%20Shipping%20Information%5D%20%F0%9F%93%A6%20Shipping%20FAQ?unique=bbc76b0){kind=small}

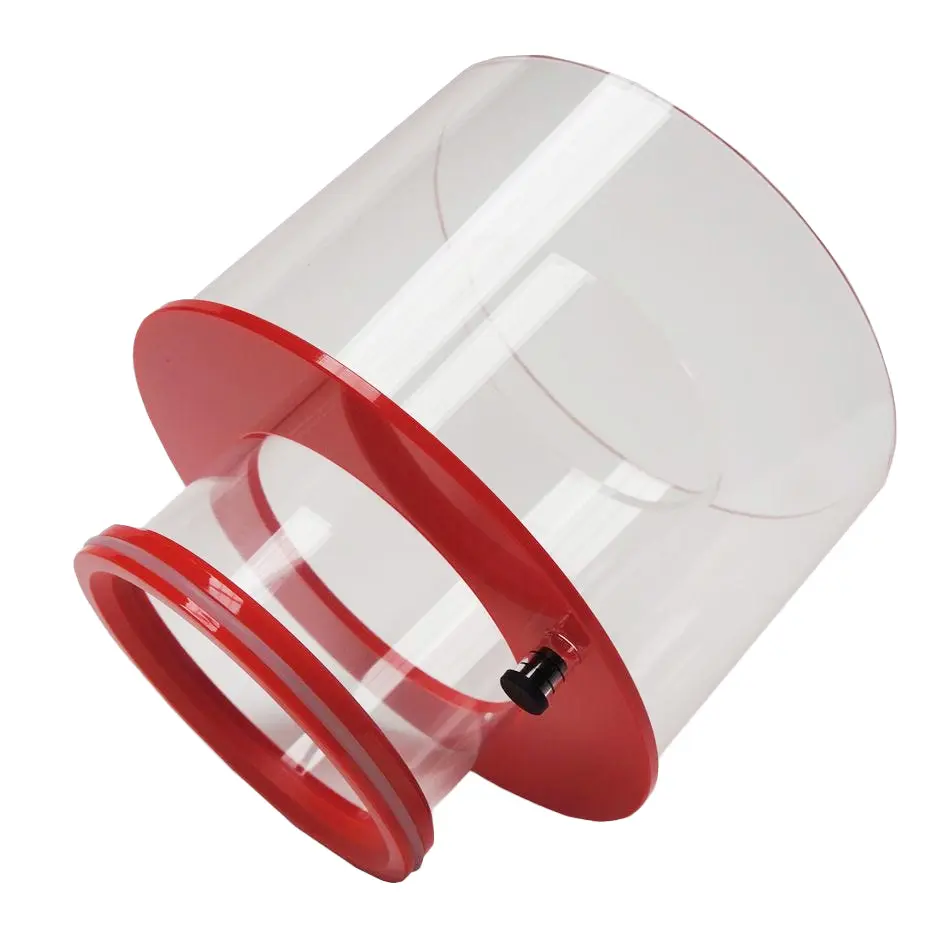

Reef Octopus Regal 200INT Replacement Collection Cup
Efficient fractionation of dissolved organic compounds requires a clean, unobstructed foam collection chamber where rich skimmate can concentrate and separate from the water column. The Octo Regal 200INT Collection Cup (SKU: ROP-CC-REGAL200) is the official OEM replacement acrylic collection cup engineered specifically for the Reef Octopus Regal 200INT In-Sump Protein Skimmer.
Driven by the controllable VarioS-4 S skimmer pump, the Regal 200INT produces high volumes of organic foam that rise through its central conical neck into the collection reservoir. The ROP-CC-REGAL200 features a precisely sized inner neck riser that encourages dry or wet foam head accumulation, while the surrounding reservoir holds high-capacity waste. A built-in lower drain port provides the flexibility to run the cup sealed with the included silicone plug, or connected via flexible tubing to an auxiliary waste container or auto-shutoff reservoir. Because collection cups are handled frequently during regular tank maintenance, accidents happen—cups can be dropped on tile floors, neck flanges can chip, or aggressive scrubbing with abrasive pads can permanently cloud or scratch the acrylic. Installing an authentic ROP-CC-REGAL200 restores factory aesthetic clarity and airtight sealing.
Ideal Replacement Scenario
If your Regal 200INT collection cup has cracked from an accidental drop during sink cleaning, developed spiderweb crazing from exposure to harsh chemical cleaners, suffered a stripped drain port, or lost its matching lid, installing an authentic ROP-CC-REGAL200 returns your skimmer to factory condition.
(Note: Package includes (1) Reef Octopus Regal 200INT Replacement Collection Cup, (1) Matching Acrylic Vented Lid, and (1) Drain Fitting with Plug. Skimmer body, pump, and neck wiper assemblies sold separately).
What’s Included:
(1) Reef Octopus Regal 200INT Replacement Collection Cup (ROP-CC-REGAL200)
(1) Form-Fitting Acrylic Vented Skimmer Lid
(1) Drain Fitting Barb & Silicone Drain Plug
Technical Specs:
SKU / Factory Part Identifier: ROP-CC-REGAL200
Component Type: Protein Skimmer Waste Collection Cup Assembly
Material: Optical-Grade Heavy-Gauge Cast Acrylic
Color: Clear Body / Smoke Lid Accent
Drain Port Interface: Threaded / Push-Fit Barb for Standard 3/8" or 1/2" ID Vinyl Tubing
Primary Compatibility: Reef Octopus Regal 200INT In-Sump Skimmer (VarioS-4 S powered)
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Installation & Maintenance Guidelines:
Turn off or pause the VarioS skimmer pump using the controller feed mode.
If using the external drain, disconnect the drain hose from the old cup barb.
Grasp the old cup with both hands and lift it straight upward off the skimmer body neck.
Wipe the top lip of the skimmer body neck with a damp cloth to clear any dried salt crust or organic slime.
Rinse the new ROP-CC-REGAL200 collection cup and lid under lukewarm freshwater to remove any packaging dust.
If routing waste to an external collector, attach your vinyl drain hose to the cup's drain port barb; if collecting waste inside the cup, ensure the drain plug is securely inserted.
Align the cup squarely over the skimmer body neck and press down evenly until fully seated.
Place the vented lid on top and resume pump operation on your controller.
Pro Tips:
- Clean Using Only Warm Water and a Soft Microfiber Sponge. Cast acrylic will scratch easily if cleaned with abrasive scouring pads, and it will develop micro-fractures (crazing) if exposed to rubbing alcohol, acetone, or standard household glass cleaners. Always clean the internal neck and cup walls with warm tap water or a diluted citric acid soak, using a soft microfiber cloth or dedicated acrylic-safe cleaning brush.
- Keep the Inner Neck Riser Free of Organic Biofilm. A layer of dense organic grease inside the collection cup neck creates surface friction that prevents rising foam heads from rolling cleanly over into the cup, leading to premature bubble collapse. Wiping the inner neck clean every 3 to 4 days—even if the main reservoir cup is not full—ensures consistent, efficient waste export.
