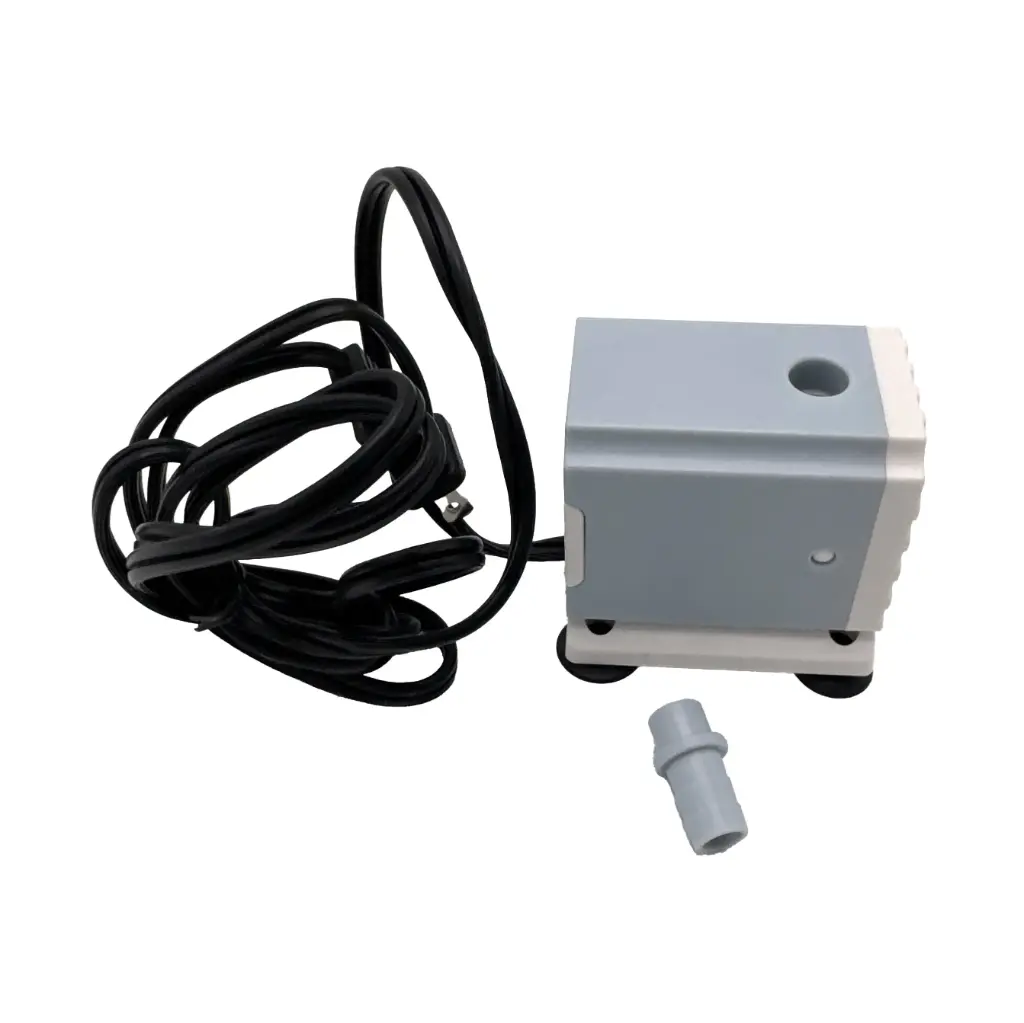

IceCap AIO 10G 600L Pump
SKU: IP-AIO10-ZT600
- Direct OEM Replacement: Factory-original replacement submersible return pump engineered specifically for IceCap 10-gallon All-In-One (AIO) desktop aquariums.
- Compact 600 L/H Output: Delivers a maximum flow rate of 600 L/H (158 GPH) to ensure proper turnover through rear filtration media and return nozzles.
- Energy-Efficient & Low Heat: Compact low-wattage motor block operates quietly while minimizing heat transfer into delicate nano aquarium displays.
- Barbed Outlet Connection: Features a standard barbed output nozzle designed to slide securely into OEM return tubing and directional flare nozzles.
- Quiet Submersible Performance: Equipped with suction cup dampening feet to absorb operational vibration inside small rear filtration chambers.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
![[Consumer Shipping Information] 📦 Shipping FAQ](/web/image/dr.website.content/27/image/%5BConsumer%20Shipping%20Information%5D%20%F0%9F%93%A6%20Shipping%20FAQ?unique=bbc76b0){kind=small}
IceCap AIO 10G 600L Return Pump
Maintaining clean, well-oxygenated water in nano reef environments requires strong, consistent circulation through your filtration media. The IceCap AIO 10G 600L Pump (SKU: IC-AIO-PUMP-10G) is the official OEM replacement submersible return pump designed specifically for 10-Gallon All-In-One (AIO) Aquariums. Over time, calcium carbonate buildup, detritus accumulation, or electrical wear can cause small return pumps to lose flow output or emit noise.
Delivering up to 600 L/H (approximately 158 GPH), this compact pump sits in the final return chamber of rear AIO filtration sumps. It draws filtered water up from the bottom chamber and pushes it back into the main display through the return tubing assembly. Its low-voltage, energy-efficient motor operates with minimal vibration, keeping desktop aquariums quiet and stable.
System Compatibility Note
This replacement pump is sized and calibrated specifically for 10-Gallon All-In-One (AIO) desktop aquariums. For 24-gallon or larger AIO systems requiring higher turnover rates, refer to the corresponding 1000L or 1500L replacement return pump models.
(Note: Package includes (1) replacement 600 L/H return pump with suction cup base and barbed hose adapter).
What’s Included:
(1) IceCap AIO 10G 600L Submersible Return Pump
(1) Suction Cup Base Footplate
(1) Barbed Hose Outlet Fitting
Technical Specs:
SKU / Factory Part Identifier: IC-AIO-PUMP-10G
Max Flow Rate: 600 L/H (~158 GPH)
Pump Type: Submersible Centrifugal DC/AC Nano Pump
Color: Standard OEM White
Primary Compatibility: IceCap AIO 10G Desktop Aquariums & Similar 10G Nano Displays
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
Installation & Set-Up Guidelines:
Disconnect power to your nano aquarium filtration equipment and unplug the old return pump.
Carefully detach the flexible return tubing from the barbed outlet nozzle of the existing pump in the rear chamber.
Lift the old pump out of the rear return compartment.
Press the new IC-AIO-PUMP-10G onto the bottom glass of the return chamber using the suction cup dampening base.
Push the return hose firmly onto the pump's barbed outlet nozzle, ensure the chamber is filled with water, and plug the power cord into a grounded electrical outlet.
Pro Tips:
Routine Impeller Vinegar Baths. Every 30 to 60 days, remove the front intake cover and slide out the magnetic impeller assembly. Soaking the rotor in warm white vinegar removes calcium crust and organic debris, preserving peak 158 GPH flow velocity.
Maintain Chamber Water Depth. Ensure the water level in the rear return compartment remains above the top of the pump housing at all times. Auto top-off (ATO) units are highly recommended for nano tanks to prevent return pumps from running dry due to surface evaporation.
