Octo Elite 220S Space Saver Super Cone Skimmer
SKU: ELITE-220SSS
MSRP: $ 1,484.16
-
Available Through Authorized Retailer
- Super Space Saver (SSS): Features an internal pump configuration that places the massive VarioS-6S inside the body, minimizing the footprint for high-capacity systems.
- Elite Super Cone Design: The 9-inch tapered body is engineered to stabilize foam and reduce turbulence, providing the most efficient organic extraction in its class.
- VarioS-6S DC Power: Powered by the industrial-grade VarioS-6S pinwheel pump, offering 5 variable speed settings for precise air-to-water mixture control.
- Intelligent Safety: Includes a waste collector float switch that integrates with the controller to shut off the pump instantly if the collection cup reaches capacity.
- Precision Geared Output: Equipped with a high-precision geared gate valve for ultra-fine water level adjustments and surgically dialed-in performance.
- Premium Construction: Hand-crafted with high-quality cast acrylic and featuring a "Twist & Lift" collection cup for rapid, tool-free maintenance.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

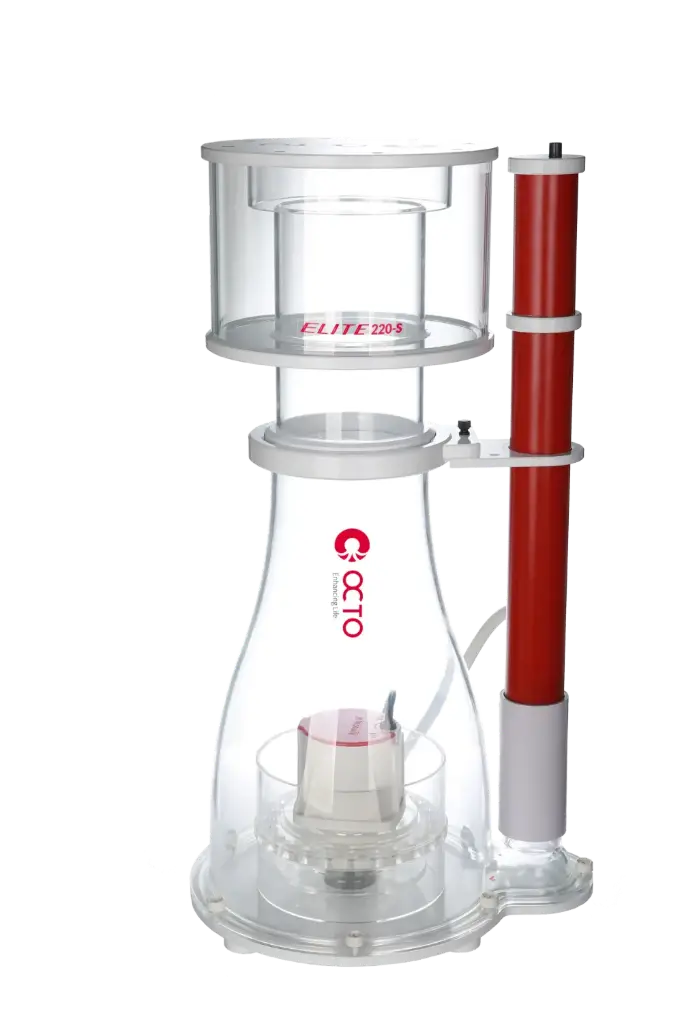

Reef Octopus Elite 220-S Space Saver Super Cone Skimmer
The Reef Octopus Elite 220-S is the ultimate solution for large-scale reef systems where filtration performance is non-negotiable but sump space is limited. By mounting the powerful VarioS-6S DC controllable pump inside the 9-inch reaction chamber, Reef Octopus has significantly reduced the required footprint without compromising the processing power required for systems up to 530 gallons.
As part of the prestigious Elite series, the 220-S features the "Super Cone" body design—a precision-engineered taper that reduces internal turbulence and allows foam to stabilize and thicken as it rises toward the neck. This shape ensures that even the most stubborn dissolved organic compounds are efficiently removed from the water column. Coupled with the intelligence of the VarioS controller—featuring a safety float switch, 15/60 minute feed modes, and 0-10V integration—the Elite 220-S offers commercial-grade processing in a remarkably compact form factor.
Key Features
Internal Pump Configuration: Dramatically reduces the footprint, allowing a 9-inch skimmer to fit in tight filtration compartments.
VarioS-6S Controllable Pump: High-efficiency DC operation with 5 speed presets and a ceramic shaft for long-term industrial reliability.
Super Cone Shape: 9" base naturally concentrates foam for a more stable and productive foam column as it enters the neck.
Automated Overflow Protection: Includes a float switch sensor to keep your sump area clean and your salinity stable.
0-10V System Ready: Connection to third-party controllers like the CoralVue HYDROS, Neptune Apex, or GHL Profilux, and other third-party controllers.
Bioload Handling
Heavy Bioload: 265 Gallons
Medium Bioload: 400 Gallons
Light Bioload: 530 Gallons
What’s Included:
(1) Elite 220-S Protein Skimmer
(1) VarioS-6S Controllable Pinwheel Pump
(1) VarioS Controller with Float Switch
(1) Geared Output Valve
Technical Specs:
Body Size: 9 in
Footprint: 12.2 in x 11.2 in
Total Height: 23.6 in
Neck Size: 5.5 in
Output Size: 50mm / 1.5 in
Recommended Sump Water Depth: 7 – 8.5 in
- Reef Octopus VarioS 6S Controllable Pinwheel Pump
- Power Consumption: 35-70watts
- Voltage: 36V
- Air Draw: 1200-2400lph / 42-84 SCFH*
- Water Draw: 528gph
*Air and water results will vary depending on aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Verify the VarioS-6S pump is securely mounted inside the Super Cone body and the venturi is properly attached.
- Place the skimmer in your sump, aiming for a water depth of 8 inches.
- Mount the float switch in the collection cup lid and connect it to the VarioS controller.
- Plug the VarioS-6S pump into the controller and connect to the power supply.
- Open the geared gate valve fully and set the pump speed to Level 3.
- Gradually adjust the gate valve until the foam line is at the base of the cup's neck.
- Allow 14 days of break-in time for the acrylic to fully stabilize.
- Pro Tips:
- Metric Plumbing Standards. The Elite 220-S utilizes a 50mm Metric output. For a professional, hard-plumbed drain, use a 50mm Metric Union to connect the skimmer's output to your sump system for easy removal during cleaning.
- Internal Pump Maintenance. Because the pump is housed inside the body, organic debris or small snails can sometimes get trapped. We recommend a full teardown and vinegar soak of the VarioS-6S pump every 6 months to maintain peak efficiency.
- Automatic Neck Cleaning. To keep a 9-inch skimmer performing at 100% efficiency, the neck must stay clean. Consider pairing this unit with a Reef Octopus Automatic Neck Cleaner (ANC) to keep the inner neck free of organic buildup 24/7.
