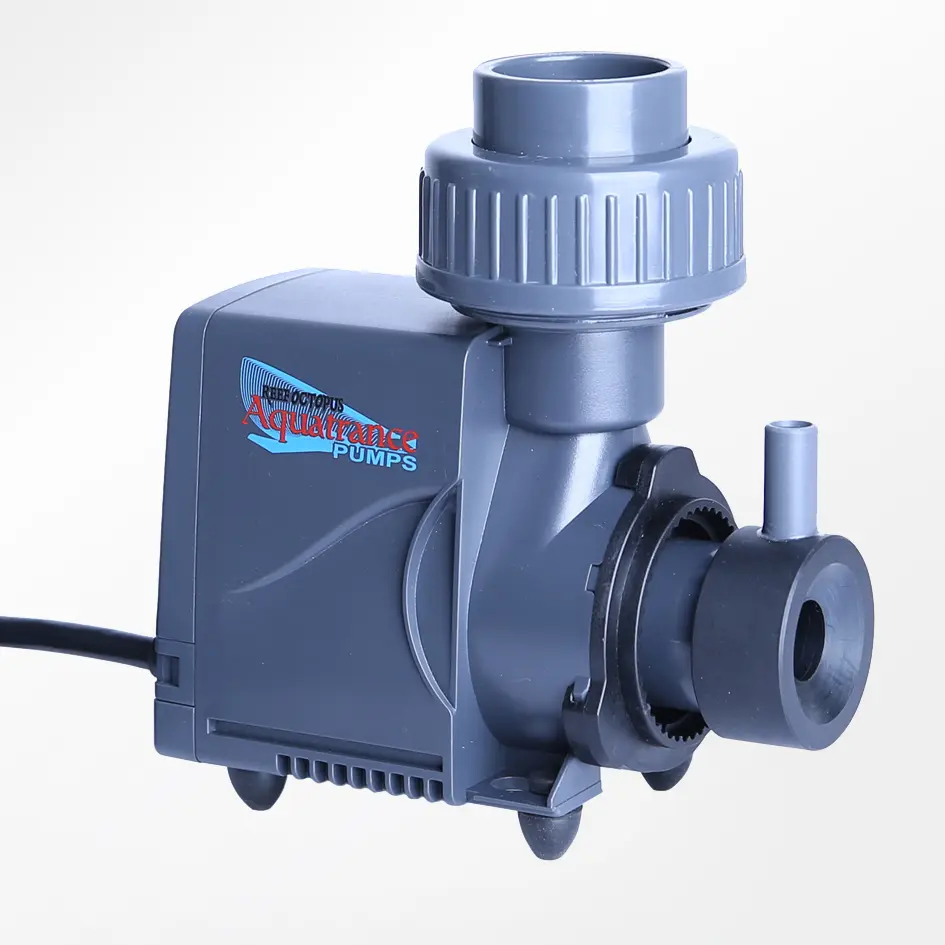

Octo Aquatrance 3000S Skimmer Pump
SKU: AQ-3000S
- Genuine OEM Direct Replacement: Authentic factory-spec alternating current (AC) fractionating skimmer pump designed explicitly for mid-to-large frame Reef Octopus Classic filtration bodies.
- Patented High-Air Pinwheel Impeller: Pre-installed with a high-density needlewheel array engineered to aggressively chop incoming atmospheric lines into a tight microbubble matrix.
- Submersible or Recirculating Utility: Advanced internal sealing allows the motor chassis to operate fully submerged in open sumps or plummed externally on recirculating skimmer setups.
- High Volume Air-to-Water Processing: Efficiently pulls a massive 880 liters per hour (31 SCFH) of air volume while tracking a low 35-watt energy footprint.
- Large Threaded Output Collar: Molded with an upsized output track designed to connect seamlessly with standard large grey threaded union connections.
- Corrosion-Free Ceramic Core Construction: Outfitted with a polished ceramic axle shaft and matching rubber cushion bushings to ensure quiet, friction-free operation in harsh saltwater environments.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 3000S Pinwheel Skimmer Pump (AQ-3000S)
The Reef Octopus Aquatrance 3000S Skimmer Pump (SKU: AQ-3000S) is an authentic factory original replacement fractionating motor distributed by CoralVue to re-establish the intense air-stripping metrics, stable foam wells, and continuous water turnover of your core filtration system. Because large-scale protein skimmers rely entirely on high-volume air injection to lift dissolved organic compounds out of the water column, a compromised or aging pump will quickly degrade your tank's water clarity. The Aquatrance 3000S utilizes a specialized 35-watt motor configuration engineered strictly for fractionating demands, balancing water pull against a massive 880 L/H air induction path to maintain a dense, microbubble foam column.
Designed with budget-friendly efficiency and long-term durability in mind, the AQ-3000S serves as a direct drop-in replacement for modern Reef Octopus skimmer models featuring large grey threaded discharge unions. By utilizing a high-flux neodymium magnet core wrapped in a seamless protective polymer casing, the pump minimizes electrical heat transfer to your water while delivering consistent torque. The internal chamber houses a precision-molded needlewheel impeller that slices through air and water lines simultaneously, turning coarse air into fine foam to prevent organic nutrients from breaking down into nitrates and phosphates.
Key Features
Advanced Low-Wattage Stator Grid: Highly efficient internal winding layout pulls a true 35 watts, keeping running temperatures exceptionally low.
Universal Internal Plumbing Alignment: Integrates directly with standard 1-inch output fittings (32mm profile diameter tracks) for simple, un-spliced installation.
Anti-Vibration Base Dampener Padding: Mounted on a structural slide-in plate with integrated rubber isolation feet to prevent motor humming against your glass sump walls.
(Note: This replacement component includes the main black motor block with its pre-installed pinwheel impeller and standard power cord. Specialized output step-up adapters and air-intake venturi nozzles are sold separately under alternative parts layouts).
Verified Hardware Compatibility

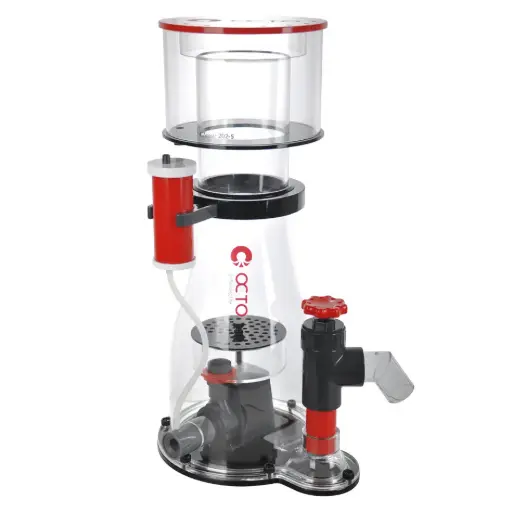

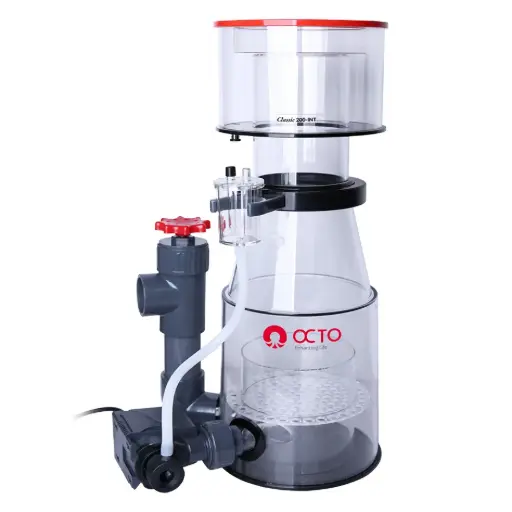

Direct Drop-In (No Adapters Needed): Factory matching replacement pump for the Classic 200-INT, 200-EXT, 200-SSS, Classic 202S, Classic 225, Diablo XS-200, NWB-200, and SRO-3000INT protein skimmers.
Adapter-Assisted Configurations (Requires External Output Sleeves): Fully compatible with legacy DNWB-200, Diablo XS-225, and Extreme 200-INT skimmer bodies when paired with model-specific CoralVue output adapters.
What’s Included:
(1) Reef Octopus Aquatrance 3000S AC Skimmer Pump with Pre-Installed Pinwheel Impeller and Submersible Power Cable
Note: Model-specific air venturi intake blocks, collection cup line clips, and clear output union components are sold separately
Technical Specs:
Official Manufacturing Title: Reef Octopus Aquatrance 3000S Skimmer Pump
SKU / Factory Part Identifier: AQ-3000S (Alternative Item Code: WP-OCT-AQ-3000S)
Maximum Rated Fluid Volume Delivery: 211 Gallons Per Hour (800 LPH Baseline Water Processing)
Maximum Rated Air Induction Intake: 880 Liters Per Hour / 31 SCFH
Operating Electrical Workload: 120V AC / 60Hz Frequency Run (35 Watts Operational Draw)

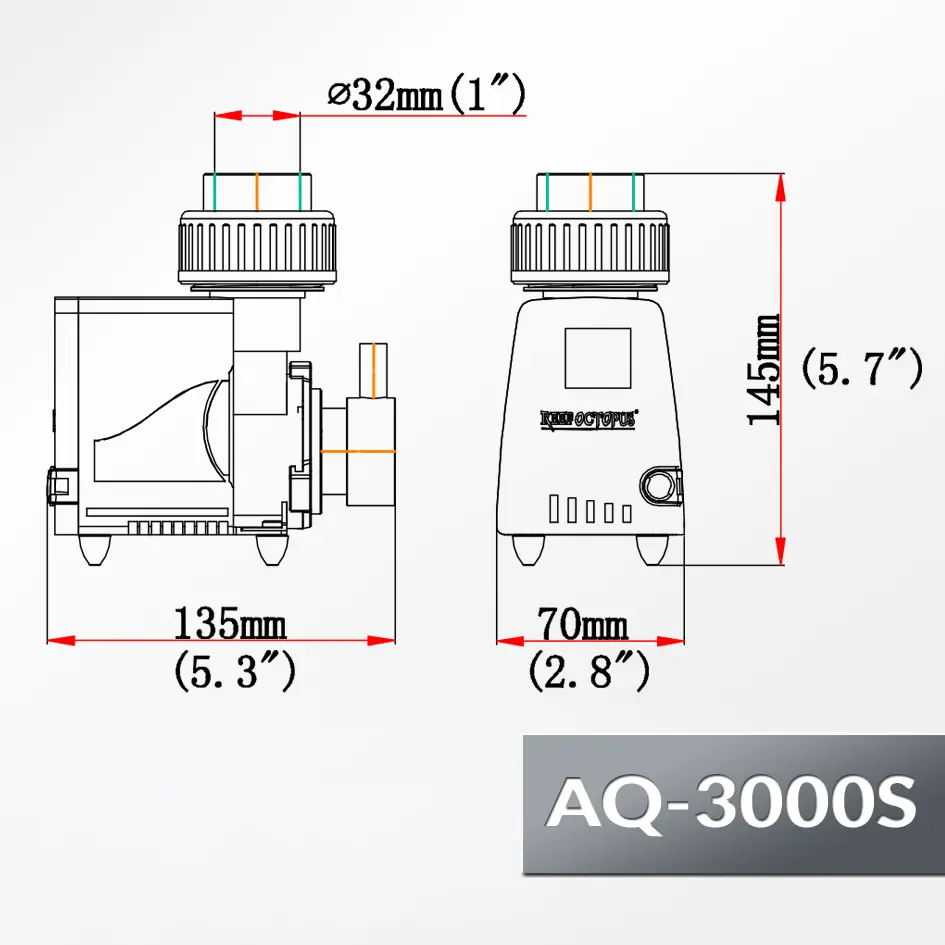

Physical Structural Footprint: 5.3 Inches x 2.8 Inches x 5.7 Inches (L x W x H)
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Instructions:
- Unplug your existing skimmer pump from the wall outlet to eliminate all live electricity before removing the filtration body from your sump.
- Disconnect the air-intake silicone tube from your venturi silencer nozzle, unscrew the grey output union collar counter-clockwise, and slide the pump free from the skimmer base plate.
- Pull your original intake venturi assembly off the front nozzle of the old pump and inspect the internal air nozzle path to ensure it is clear of salt deposits or organic slime.
- Take your fresh AQ-3000S replacement pump, line up the old venturi nozzle with the front suction mouth, and press it firmly into position until it seats completely flush.
- Align the 1-inch threaded output nozzle with your skimmer body's grey sliding union receiver, hand-tighten the threaded collar clockwise until snug, and secure the pump base to the bottom plate tracking.
- Submerge the skimmer assembly back into your sump chamber, hook the silicone air line back into your collection neck silencer, plug the AC cord into your wall outlet, and adjust your gate valve to establish the desired water line.
Pro Tips:
- Clear the Air Venturi Intakes with Warm Fresh Water Every Two Weeks. Because this skimmer pump pulls high air volumes directly through a dedicated venturi nozzle, concentrated salt spray and mineral evaporation naturally build up around the small air injection nipple over time. This hard salt crust will restrict incoming airflow, causing the skimmer's water line to rise unexpectedly and choke your foam output. To prevent overflow loops, simply disconnect the silicone air line from the silencer once every two weeks and feed 1 cup of warm fresh water through the tube while the pump is running to instantly dissolve the mineral scaling safely.
- Never Operate This Specialized Motor Dry Outside of Water Profiles. The AQ-3000S is a dedicated skimmer pump that relies entirely on surrounding water flow to lubricate its internal ceramic shaft and dissipate operational core heat. Running the pump dry on an equipment table or allowing your return chamber water line to fall below the upper volute rim will cause immediate thermal distortion. Dry running generates intense friction heat that can warp the plastic impeller blades and shatter the polished ceramic axle shaft within minutes, instantly voiding your factory warranty.
- Perform a Quarterly Citric Acid Soak to Eliminate Internal Magnesium Bound Scale. The mixing of compressed air and concentrated saltwater inside the wet well generates significant internal friction, causing calcium and magnesium ions to naturally bake onto the warm needlewheel array and rear shaft bushing. This rough scaling acts like sandpaper, grinding down your bearings and creating severe rotor imbalances that lead to loud vibrations. Every 3 to 4 months, unthread the pump and soak the complete motor block in a warm bath of fresh water mixed with citric acid powder for 30 minutes to dissolve the mineral scale and preserve whisper-quiet operation.
