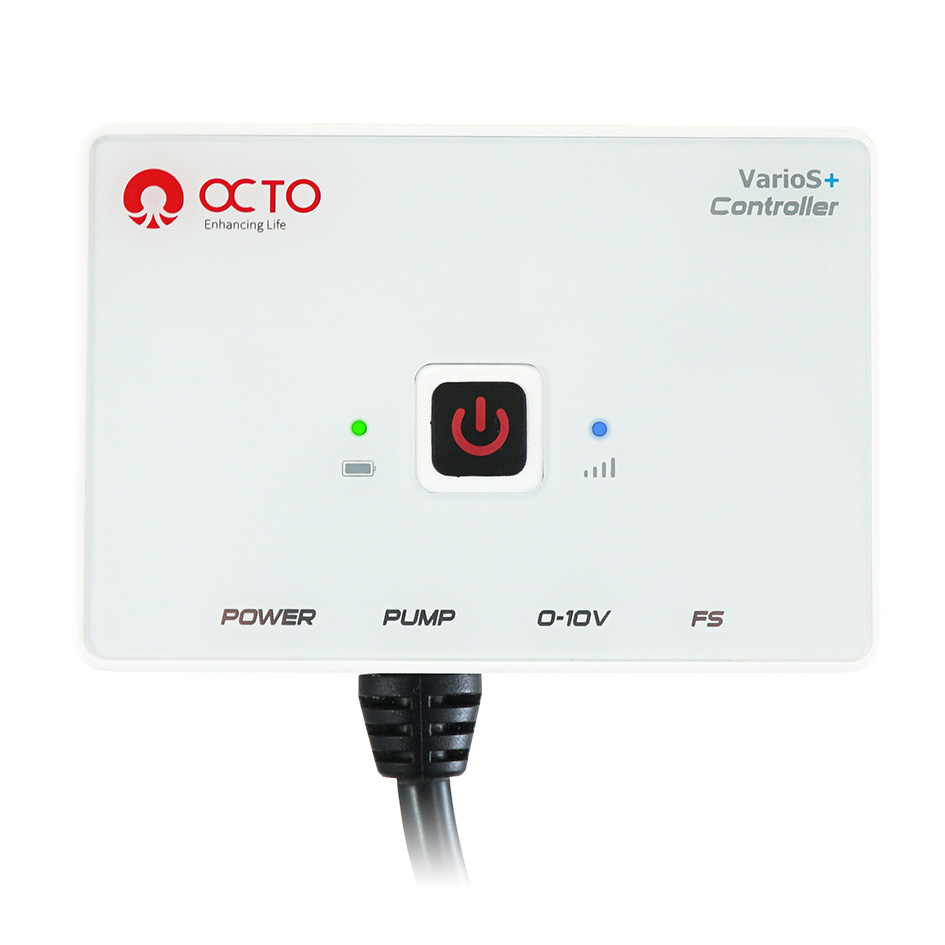

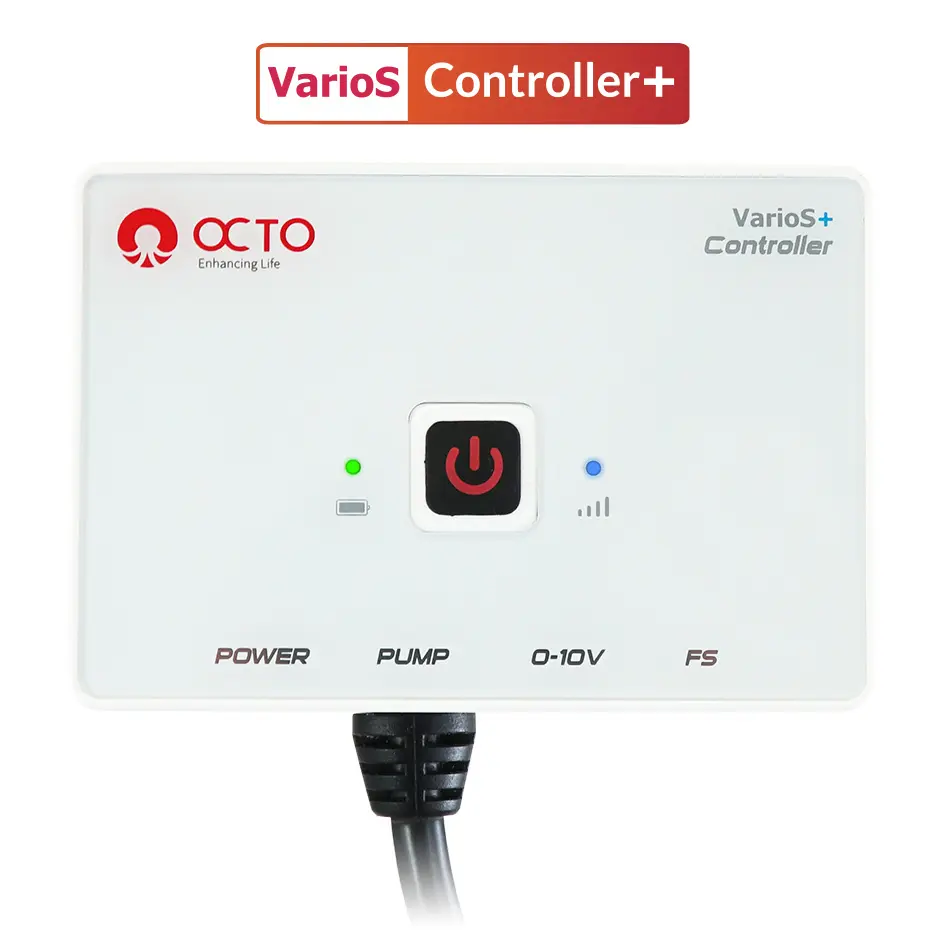

Octo Varios 8+ WIFI Controller
SKU: ROP-VAR8PLS-CTL
Genuine OEM Direct Upgrade: Authentic factory-spec intelligent wireless control interface designed explicitly to operate or upgrade the extra-large frame Reef Octopus VarioS-8 controllable return water pump.
Expanded 8-Speed Precision Array: Offers an upgraded 8-level flow calibration matrix via physical touchpads or the smart app to perfectly dial in large-scale system overflow lines.

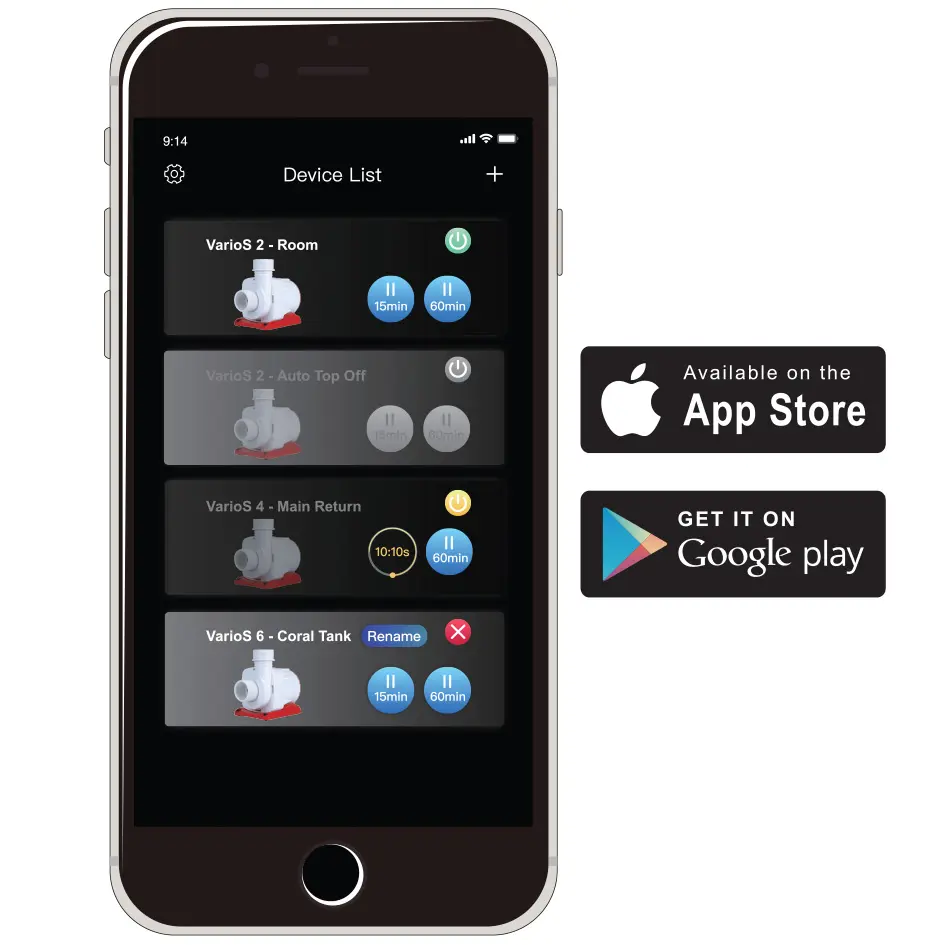

Integrated WiFi App Connectivity: Links directly with the cloud-based Reef Octopus App (iOS and Android) for remote equipment monitoring, automated scheduling, and real-time push anomaly alerts.
Smart Dual Feed & Delay Windows: Features customizable 15-to-60 minute operational pause countdowns alongside an automated 5-minute startup delay to manage sump water levels post-filtration.
0-10V Third-Party Integration: Outfitted with a universal analog input port, allowing seamless command takeover by major external aquarium systems like the HYDROS platform or Neptune Apex.
Hardware Safety Failsafe Port: Built with a dedicated mechanical sensor input jack to pause the pump instantly when connected to an automated sump water line float switch.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS 8+ WiFi Return Pump Upgrade Controller (ROP-VARIOS8PLS-CTL)
The Reef Octopus VarioS 8+ WiFi Return Pump Smart Controller (SKU: ROP-VARIOS8PLS-CTL) is an authentic factory-spec electronic control interface distributed by CoralVue to bring modern cloud-managed automation to your primary filtration loop. Serving as both a direct replacement and a powerful wireless upgrade for standard legacy drivers, this generation-plus controller elevates traditional large-scale water-circulation management. Because managing a flagship high-output return system requires continuous voltage precision under variable head-height resistance, this smart driver utilizes advanced internal microprocessors capable of handling sustained 36-volt electrical loads while transmitting data seamlessly across local network bands.
The primary advancement of the VarioS+ ecosystem centers on wireless oversight. By syncing the module with the dedicated Reef Octopus App, you gain total offsite management over your aquarium's turnover habits. Instead of the basic five-speed manual grids found on legacy blocks, the 8+ expands its capabilities to an 8-variable speed distribution curve. This gives you ultra-precise adjustments over high-volume water velocity, helping you match your main drain lines perfectly without touching a physical plumbing gate valve. Furthermore, the cloud interface actively monitors active electronics, sending immediate push notifications to your smartphone if it detects localized power interruptions or an obscured impeller line. This ensures your high-turnover filtration loop stays up and running even when you're away from the display tank.
Key Features
Real-Time Push Notification Engine: Instantly alerts your mobile device regarding mechanical stall events, dry-running faults, or sudden electrical dropouts.
Advanced Multi-Hour Automation: Permits intricate daily operational schedules, allowing you to step down return flows during delicate coral target-feeding windows or ramp up turnover rates at night.
True Slow-Start Acceleration Logic: Implements an automated internal soft-ramp profile that slowly increases pump velocity over a 10-second window to prevent line shock or water hammer across complex plumbing manifolds.
Weather-Resistant Input Membrane: Features a dust-sealed physical touchpad overlay with bright LED diagnostic indicator lights for easy, toolless manual troubleshooting.
Verified Hardware Compatibility
Reef Octopus Return Pump Infrastructure: Engineered exclusively as the matching native replacement or upgraded cloud-managed controller module for the extra-large Reef Octopus VarioS-8 Controllable Return Water Pump.
(Note: This controller features specific firmware parameters mapped to the high-capacity hydraulic loads of the VarioS-8 water circulation engine block. It cannot be used with specialized fractionating skimmer models, nor will it operate smaller 24V VarioS-2+ or VarioS-4+ motor lines which run on completely different voltage matrices).
What’s Included:
(1) Reef Octopus Replacement VarioS 8+ WiFi Variable-Speed Smart Controller Module
(1) Custom Molded Plastic Wall Mounting Bracket Cradle
(1) Low-Voltage Mechanical Water Level Float Switch Assembly
(Note: 36V AC/DC power supply bricks, multi-pin motor cables, and primary pump bodies are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS 8+ WiFi Pump Controller
SKU / Factory Part Identifier: ROP-VARIOS8PLS-CTL
Operating Input Voltage: 36V DC Powered (Up to 98W Max Output Management)
Speed Configuration Scale: 8 Manual/Digital Preset Speeds + Dual Feed Modes
Wireless Protocols: Localized WiFi Network Pairing (Supports iOS & Android App Frameworks)
Interface Profile Types: Isolated 0-10V Standard Communication Port & Dedicated Float Switch Jack
Primary Function: Wireless Return Circulation Management, Safety Sensor Processing, & Flow Optimization
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Unplug the main 36V high-amperage power transformer brick from your wall socket to eliminate all live electricity in the equipment bay before changing components.
- Locate the waterproof connection point where your thick multi-pin motor cable from the VarioS-8 pump hooks into the base of the old controller.
- Unscrew the knurled plastic locking collar counter-clockwise to release the compression seal, and pull the cable straight out of the socket.
- Unmount the old driver from its wall panel, snap your new ROP-VARIOS8PLS-CTL WiFi module into the mounting cradle, and reconnect your auxiliary cords.
- Align the internal orientation pins of your motor cable with the bottom port of the new controller, press together firmly, and spin the locking collar clockwise until hand-tight.
- Connect your 36V power supply brick, download the Reef Octopus App onto your mobile device, follow the on-screen prompts to pair with your local WiFi network, and configure your 8 speed choices.
Pro Tips:
- Never Hot-Plug the Multi-Pin Motor Cable. Whenever you need to disconnect the return pump for seasonal maintenance or plumbing changes, always unplug the primary 36V transformer brick from the wall outlet before unscrewing the multi-pin motor cord from the base of this controller. Uncoupling or plugging the heavy motor line while the controller is receiving live 36V current can cause an instantaneous micro-arc across the electrical pins. This electronic spike can easily fry the sensitive WiFi communication chip inside the controller, instantly voiding your warranty.
- Mount the Module Well Outside the Humid Sump Zone. Even though the controller housing is built with a rugged polymer frame and a water-resistant membrane touchpad, it is a piece of precision wireless hardware that should never be subjected to heavy moisture. Avoid anchoring the module inside enclosed, unvented sump cabinets where continuous saltwater condensation and evaporating salt creep coat the walls. Mount the unit on an external equipment board or a dry wall panel next to your tank to prevent internal board corrosion and wireless signal blocking.
- Set Up App Notifications for the Float Switch Safeguard. Take full advantage of the included safety float switch sensor by positioning it inside your return pump sump chamber. Once hooked into the controller side port, configure the Reef Octopus App software to trigger high-priority smartphone push notifications the instant your sump water drops past safe operation boundaries. This turns an ordinary dry-running safety shutoff into an active offsite diagnostic alarm, allowing you to catch ATO top-off failures long before your display line suffers evaporation swings.
