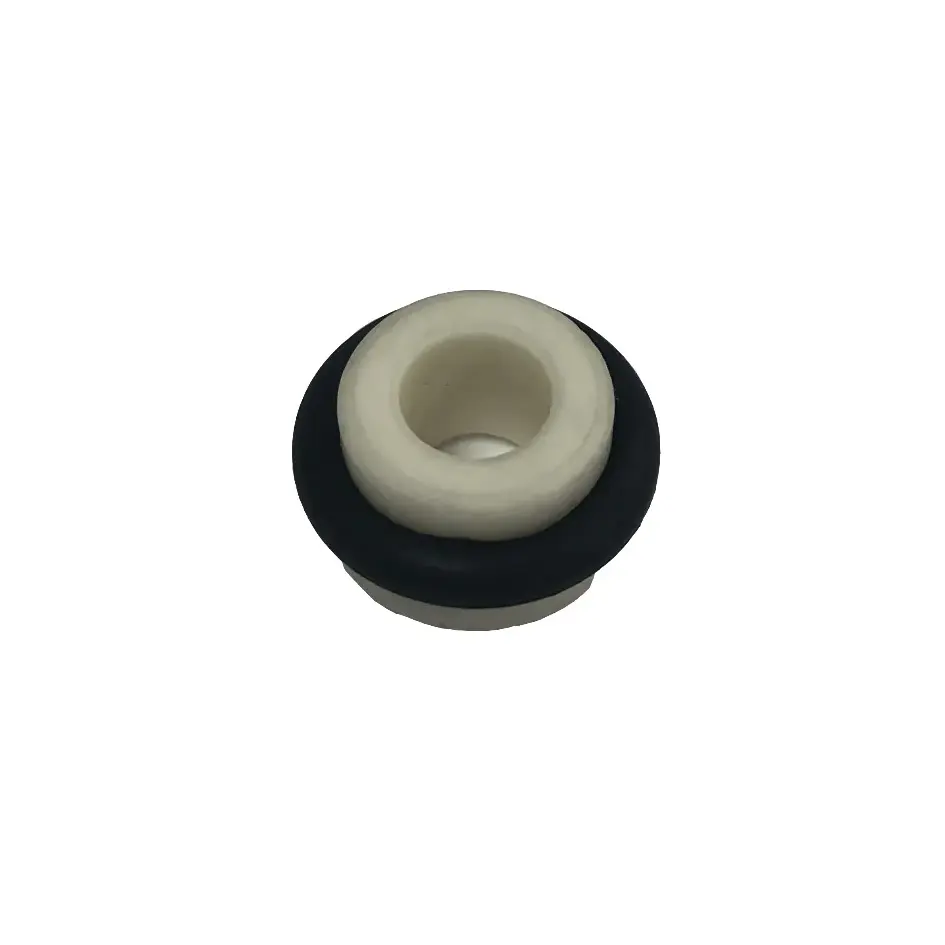

Octo Rear Blaster Pump Bushing 2000, 3000
SKU: ROP-RR-BSHNG2000
- Genuine OEM Component: Direct factory-spec replacement rear bushing meticulously cast to restore precision alignment to heavy-duty Reef Octopus motor blocks.
- Eliminates Harmonic Chattering: Centers the long ceramic impeller shaft, dampening rotor wobble and preventing low-frequency hums inside your sump space.
- Premium Friction Shielding: Crafted from industrial-grade, low-friction wear compounds designed to handle high-RPM continuous operational stress.
- Protects Costly Internal Stators: Restricts micro-vibrations and excessive side-play, stopping the magnetic rotor from friction-wearing against the interior block wall.
- Saltwater Inert Matrix: 100% reef-safe design built to resist premature swelling, binding, or chemical breakdown in aggressive marine water.
- Slip-In Tool-Free Swapping: Pre-sized to slip perfectly into the seat at the absolute back of the motor block cavity during routine deep cleanings.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Rear Pump Bushing for 2000 & 3000 Model Variations (ROP-RR-BSHNG2000)
The Reef Octopus Rear Pump Bushing (SKU: ROP-RR-BSHNG2000) is an essential, high-precision factory-direct OEM replacement component engineered to anchor the spinning core of your mid-sized filtration or water circulation network. In high-performance marine platforms, the pump rotates at constant speeds to draw in air or drive high-velocity return flow. This continuous rotation subjects the central ceramic shaft to constant structural loads. Over time, the tiny seat at the deepest point of the pump chamber—the rear bushing—gradually wears down from fine sand particles or calcium buildup, resulting in a loose shaft path. Replacing this small, critical component restores factory-spec balance to your pump assembly instantly.
By providing a tight, perfectly concentric anchor point for the tail end of your impeller's ceramic shaft, this replacement insert counteracts rotor wobble. Eliminating side-play drastically reduces mechanical rattling and cabinet harmonics, extending the working life of your expensive impeller's magnetic casing. Left unserviced, a degraded bushing allows the heavy ceramic rotor to spin slightly off-axis, causing it to scrape against the delicate inner walls of the motor stator block and leading to permanent motor failure. Molded from an ultra-durable, marine-grade synthetic compound, this bushing delivers excellent heat resistance, low-friction operation, and a precise friction-fit seat within specialized Reef Octopus water blocks.
Key Features
Dynamic Shaft Centralization: Keeps the core ceramic shaft perfectly straight and centered, optimizing hydro-dynamic pressure inside the pump volute cover.
Resilience Under Heat Stress: Built to withstand the continuous friction temperatures generated by internal water movement blocks.
Abrasive Creep Defense: Resists tracking from fine calcium carbonate or aragonite sand deposits that manage to slip past intake strainers.
Drop-In Serviceability: Precision-sized outer contours ensure a clean, push-fit seat inside the rear cavity alignment tab without adhesives.
Preserves Pump Longevity: Replacing this consumable wear part at the first sign of noise shields the entire motor block from catastrophic internal friction wear.
Verified Product Compatibility
Reef Octopus Bubble Blaster (Skimmer) Series: HY-2000S, HY-3000S.
Reef Octopus Water Blaster (Return) Series: HY-2000W, HY-3000W.
(Note: Designed strictly for mid-sized 2000 and 3000 Blaster series architectures. For alternative single-stage lines like Aquatrance, please verify your configuration before installation, as this item targets the premium heavy-cast motor blocks).
What’s Included:
(1) Reef Octopus Rear Pump Bushing Insert for Sized 2000 / 3000 Motor Assemblies
(Note: Impeller assemblies, central ceramic shafts, front rubber o-rings, and pump volutes are sold separately).
Technical Specs:
Official Manufacturing Title: Rear Pump Bushing 2000S, 2000W, 3000S, 3000W
SKU / Factory Part Number: ROP-RR-BSHNG2000
Material Composition: Low-Friction Heavy-Duty Marine Synthetic Matrix
Target Part Placement: Deep Internal Anchor Seat (Rear of Volute Core Cavity)
- Disconnect the main power line to your pump, pull the motor block out of your sump, and remove the front volute casing screws.
- Carefully draw the heavy magnetic impeller block straight forward and out of the primary motor housing cavity.
- Peer down into the absolute furthest bottom corner of the empty inner motor channel to locate the small existing rear bushing disc.
- Use a long plastic needle-nose tool or a specialized blunt hook tool to carefully pull the old worn-out bushing free from its seat.
- Rinse the deep tracking channel with fresh water or vinegar to clean away any calcification or sand particles built up inside the seat.
- Push the new ROP-RR-BSHNG2000 bushing straight back into the terminal seat until it clicks completely flat, then slide the impeller back into place.
Pro Tips:
- Never Run the Pump If the Rear Bushing Dislodges. When performing a deep breakdown cleaning of your Bubble Blaster or Water Blaster motor, it is incredibly easy to accidentally wash the small rear bushing down the sink or lose it on your workspace. Never reinstall your impeller if this rear bushing is missing. Running the heavy magnet assembly without its rear anchor support will cause it to violently score the internal walls of the motor block, destroying your pump within minutes of operation.
- Clean the Shaft Tips to Guarantee a Snug Seat. Before dropping your heavy impeller assembly back over the newly installed bushing, inspect the tail tip of the white ceramic shaft. Over time, stubborn calcium scale or fine organic films can bake onto the ceramic surface. Giving the shaft tip a quick rub down with a vinegar-soaked microfiber towel ensures it drops perfectly into the center hole of the new bushing without binding or tracking unevenly.
- Keep an Eye Out for Unexplained "Startup Clicking." If your return or skimmer pump occasionally struggles to restart after feeding cycles, or makes a distinctive clicking or grinding noise for a few seconds before spinning up, inspect the rear bushing right away. This clicking means the shaft has created an oval track inside a worn-out bushing, throwing the magnetic fields out of alignment upon initial power startup. Replacing this small wear part fixes this startup issue instantly.
