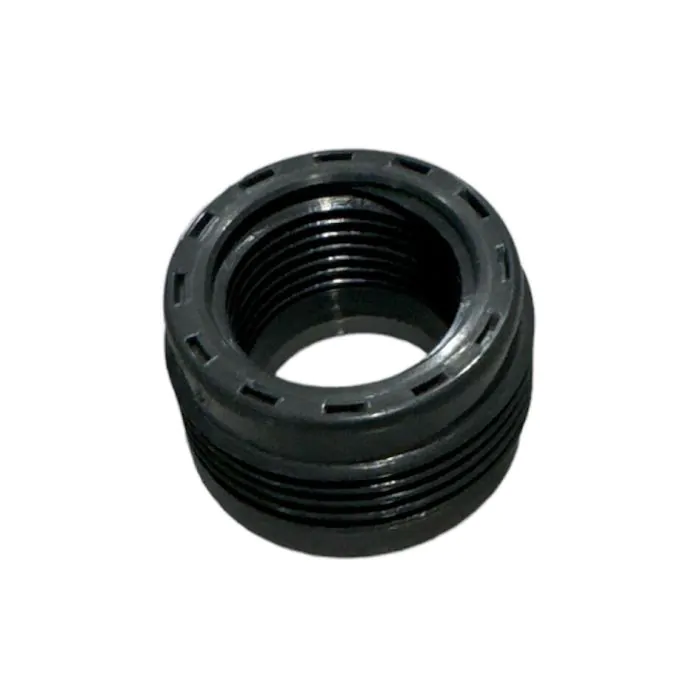

Octo 40mm Thick Output Adapter
SKU: ROP-OA-40THK2
- Genuine OEM Direct Replacement: Authentic factory-spec pump outlet union fitting designed specifically for Reef Octopus RODC variable speed controllable pumps.
- 40mm Thick Threaded Configuration: Engineered with heavy-duty, robust metric threads tailored to match the reinforced exit housings of high-flow motor blocks.
- High-Impact Molded Polymer: Constructed from commercial-grade PVC composite that safely handles mechanical tension, backpressure, and salt scaling.
- Airtight Internal O-Ring Seat: Features a precision-grooved shoulder channel designed to hold an internal rubber gasket flush for a true leak-free compression seal.
- Maximized Fluid Volumetric Flow: The straight, un-constricted internal core prevents structural flow resistance, allowing your return pump to perform at peak capacity.
- Toolless Hand-Tightened Fitting: Quickly threads directly onto your existing pump volute discharge port without requiring pipe wrenches or hazardous glues.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Pump Output Adapter - 40mm Thick Threaded (ROP-OA-40THK)
The Reef Octopus 40mm Thick Threaded Pump Output Adapter (SKU: ROP-OA-40THK) is an authentic factory-spec replacement plumbing component distributed by CoralVue to preserve the secure fluid transit pathways of your high-turnover aquarium system. In customized marine setups, return pumps and recirculating skimmer lines experience massive structural pressures at the immediate discharge exit point of the motor block. This specialized "Thick Threaded" version features heavy-profile metric plumbing thread lines built to withstand high torque loads.
Over years of system operation, routine pump maintenance requires uncoupling the primary plumbing layout. Repeatedly tightening and untightening thin or mismatched generic adapters can cause fine plastic threads to cross-thread, and accidental shifts in heavy plumbing manifolds can fracture the union shoulder, resulting in a dangerous underwater spraying leak inside your dry filtration cabinet. Replacing a worn, cross-threaded, or hairline-fractured output piece with this genuine factory adapter completely secures your equipment bay. The thick-set molding handles heavy vibration loops seamlessly, keeping your water lines locked down and protecting your equipment investments.
Key Features
True Factory Sizing Matrix: Molded with an exact 40mm thick-profile metric thread configuration to seat perfectly over OEM pump discharge ports.
High-Durometer Polymer Blend: Built from highly dense, saltwater-inert plastics that resist structural warping, environmental cracking, and ozone degradation.
Flat Compression Face: Features a smooth, uniform sealing deck designed to squeeze down evenly against internal rubber gaskets for absolute sealing security.
Deep Fluted Gripping Grooves: Outfitted with structural ridges around the external perimeter to give your fingertips maximum traction during plumbing installation.
Verified Hardware Compatibility
Reef Octopus Controllable DC Pumps: Built specifically to fit the output volute threads of Reef Octopus RODC variable speed skimmer and return pumps requiring a 40mm thick threaded connection footprint (such as select RODC-5500S DC configurations).
(Note: This is the "Thick Threaded" 40mm adapter variant. If your pump utilizes the standard "Thin Threaded" or plain "Slip" socket output styles, please cross-reference your specific pump model size manual before completing setup).
What’s Included:
(1) Reef Octopus Replacement 40mm Thick Threaded Pump Output Adapter Fitting
(Note: Silicone sealing O-rings, replacement pump volutes, controllable motor blocks, and rigid PVC plumbing pipe runs are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus Pump Output Adapter (40mm Thick Threaded Variant)
SKU / Factory Part Identifier: ROP-OA-40THK
Connection Type Configuration: 40mm Metric Heavy-Duty Male Threaded Union Face
Material Matrix Composition: Saltwater-Safe High-Impact Engineered Marine PVC
Primary Colorway: Industrial Gray / White Tone Scheme
- Turn off your Reef Octopus pump controller and completely unplug the main power supply transformer from the wall to stop water flow.
- Close all inline gate or ball valves along your return manifold to prevent gravity back-siphoning from the main display tank.
- Unscrew the damaged or leaking 40mm adapter counter-clockwise off the pump's exit nozzle and slide it clear of your pipe line.
- Inspect your existing rubber sealing O-ring gasket; clean away any trapped detritus, sand particles, or salt creep crust from the seat.
- Thread your new ROP-OA-40THK output adapter clockwise onto the pump volute mouth, ensuring the threads align straight without binding.
- Hand-tighten the union adapter firmly until the internal O-ring compresses tightly against the pump housing, reopen your valves, and restore power.
Pro Tips:
- Always Hand-Tighten Only — Avoid Metal Pipe Wrenches. This replacement pump adapter is engineered to achieve a perfectly airtight, pressurized seal using hand pressure alone. Never use heavy metal pipe wrenches, channel locks, or vice-grips to force the fitting tighter. Because the threads are molded out of polymer plastic, using metal tools will easily strip out the 40mm metric threads or split the thick outer casing, completely ruining the adapter and potentially stripping the threads on your expensive pump volute cover.
- Lubricate Your Sealing O-Rings Safely. When installing the adapter over your pump's sealing ring, never allow the rubber gasket to dry-bind against the plastic face. Dry-tightening can cause the O-ring to pinch, twist, or push out of its designated track, causing a steady, annoying drip leak once the pump builds pressure. Apply a tiny, micro-thin smear of 100% pure silicone plumbing grease directly onto the rubber ring to help the adapter glide smoothly into position for a perfect seal.
- Support Your Return Piping Manifold Strain. Because the 40mm thick threaded adapter handles the immediate physical weight of your upward plumbing lines, ensure your heavy PVC pipes are independently supported inside the cabinet. If a long, heavy stack of rigid pipe lines leans completely on the pump output adapter without wall brackets or support hangers, the continuous cantilever strain and pump vibration can eventually snap the plastic fitting. Using a length of flexible silicone plumbing hose between the pump and your main pipe lines eliminates this risk entirely.
