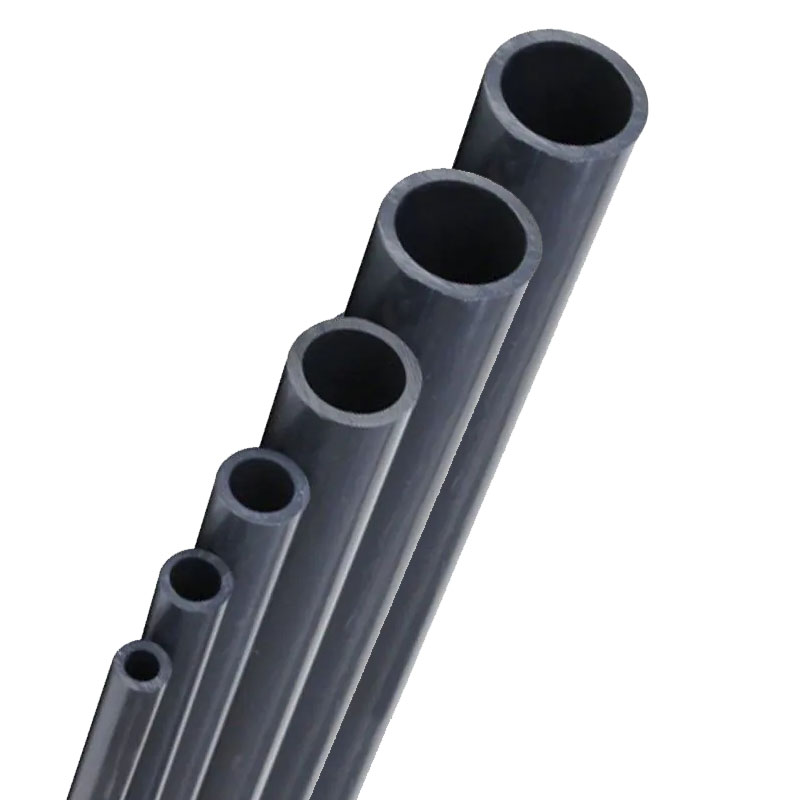

75mm Metric uPVC Pipe
SKU: PVC-PIPE-75
True Metric Calibration: Machined to a precise 75mm outer diameter (OD), engineered to seat perfectly into 75mm metric female slip ports.
Aquarium-Grade Dark Gray Profile: Neutral industrial aesthetic matches professional sumps, reef reactors, and high-end cabinetry manifold systems.
100% Lead-Free & Reef Safe: Formulated with high-purity unplasticized PVC (uPVC) completely free of heavy-metal stabilizers, ensuring zero chemical leaching.
Optimal Fluid Dynamics: Polished inner pipe walls reduce localized friction, maximize flow velocity, and help prevent organic detritus build-up.
High Chemical & Impact Resistance: Thick-wall construction shrugs off structural vibration, harsh saltwater corrosive environments, and physical impacts.
CoralVue 75mm Metric U-PVC Pipe (SKU: PVC-PIPE-75)
The CoralVue 75mm Metric U-PVC Pipe (SKU: PVC-PIPE-75) is a premium, high-density structural conduit designed specifically for high-integrity plumbing networks in modern saltwater aquariums, commercial aquaculture facilities, and complex reef filtration manifolds. When integrating high-end European aquarium gear—such as specialized protein skimmers, return pumps, or custom sumps—traditional domestic Schedule 40 or Schedule 80 imperial pipes fail to align due to differing outer diameter standards. The PVC-PIPE-75 eliminates these sizing headaches, offering a flawless 75mm metric fitment that easily accommodates high-performance reef components.
Constructed from premium, food-safe unplasticized PVC (uPVC), this rigid pipe features an exceptionally smooth, non-porous interior bore. This design minimizes frictional resistance and drag, optimizing return flow from pumps while preventing micro-bubbles and organic detritus from building up along the pipeline. Its thick-wall construction ensures exceptional structural rigidity, reducing line vibration under high pressure while remaining easy to cut, chamfer, and solvent-weld using standard PVC adhesives.
Key Features
Zero Plasticizers: Formulated without softeners or volatile additives, ensuring it is 100% safe for highly sensitive marine invertebrates, corals, and delicate fish.
Standard Length Format: Supplied in easily shippable and workable lengths designed to span large sump cabinets without unnecessary intermediate coupling joints.
Excellent UV & Impact Resistance: Resists structural degradation under intense reef-lighting setups and holds up under structural pipe clamps.
(Note: This retail SKU contains (1) individual standalone segment of CoralVue 75mm Metric U-PVC Pipe. Solvent primers, cements, and slip fittings are sold under separate product categories).
What’s Included:
(1) CoralVue PVC-PIPE-75 75mm Metric U-PVC Pipe Segment
Technical Specs:
Official Manufacturing Title: 75mm Metric U-PVC Rigid Pipe
SKU / Factory Part Identifier: PVC-PIPE-75
Pipe Outer Diameter (OD): Exactly 75mm
Pipe Inner Diameter (ID): Approximately 67.8mm
Wall Thickness Rating: Approximately 3.6mm (PN10 structural equivalent)
Material Matrix Composition: High-Density Unplasticized Polyvinyl Chloride (uPVC)
Maximum System Pressure Rating: Up to 150 PSI continuous service
Maximum Thermal Operating Limit: 140°F (60°C) continuous fluid threshold
Primary Structural Color Finish: Industrial Dark Gray
Certified Approvals: DIN 8061/8062 Metric Dimensional Standard, Reef Safe Formulation
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
- Measure the required pipe run and mark the cut line on the 75mm pipe using a soft pencil or marker.
- Cut the pipe cleanly at a true 90-degree angle using a dedicated wheel cutter or a fine-tooth saw. Ensuring a square cut is essential for a secure fitment inside slip fittings.
- Use sandpaper, a utility knife, or a deburring tool to remove all plastic burrs and create a slight outer bevel (chamfer) on the cut edge of the pipe.
- Wipe the outside of the pipe end and the inside of the receiving female slip fitting with a clean dry cloth to remove dust, plastic shavings, and residual moisture.
- Apply a thin, even layer of PVC primer to the outer pipe end and inside the receiving slip port. While wet, apply an even coat of PVC solvent cement over both primed surfaces.
- Push the pipe firmly into the slip fitting until it bottoms out against the internal shoulder stop. Give the pipe a quick 1/4 turn to evenly distribute the cement, and hold it firmly in place for 15 seconds to prevent the joint from backing out as the glue sets up.
Pro Tips:
- Never Mix Metric and Imperial Pipe Standards Directly.
CRITICAL AQUARIUM PLUMBING DESIGN TIP: A 75mm metric pipe has an outer diameter of exactly 75mm, which is not compatible with standard 2-1/2" domestic imperial slip fittings (which have an actual inner diameter of ~73.0mm). Attempting to glue a 75mm metric pipe into a 2-1/2" imperial fitting will fail due to mismatched connection tolerances. Always use metric-to-metric or specialized hybrid transition fittings.
- Always Chamfer the Cut Pipe Edge Prior to Gluing. Failing to bevel the outside edge of your freshly cut 75mm pipe creates a sharp, square corner. When you slide this unchamfered pipe into a primed slip fitting, the sharp edge acts like a scraper, pushing the wet solvent cement down to the bottom of the socket instead of leaving a uniform layer. Beveling the edge ensures a smooth slide and an even distribution of the cement matrix.
- Allow a Full 24-Hour Cure Time Before Filling with Saltwater. Although PVC solvent cement sets up and feels solid within minutes, do not introduce water or apply pressure to the newly glued 75mm lines immediately. Wait at least 2 to 4 hours for low-pressure lines, and a full 24 hours for pressurized pump return loops. Introducing corrosive saltwater to uncured joints can disrupt the chemical bond, causing micro-leaks or structural failures later down the line.
