IceCap 39 Reef Sump v2
SKU: IC-SS39
MSRP: $ 681.44
-
Available Through Authorized Retailer
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.

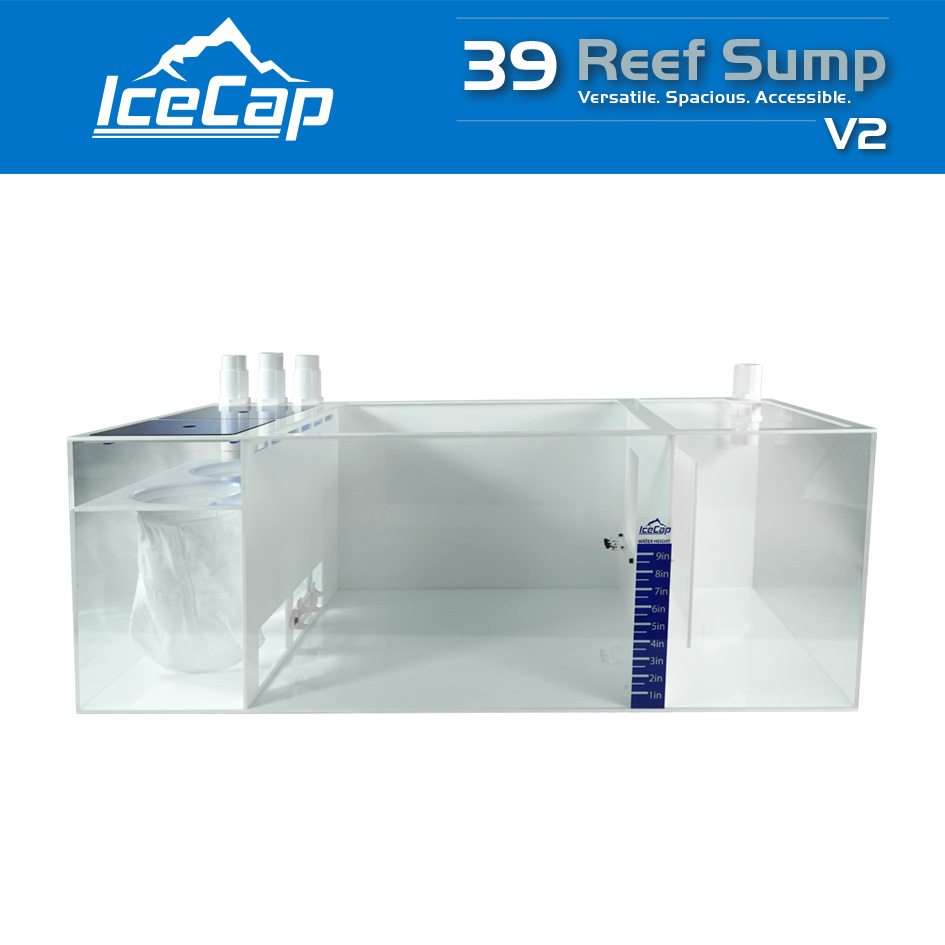

IceCap 39 Reef Sump V2
The IceCap 39 Reef Sump V2 is designed for reef aquariums that demand space, organization, and flexibility in their filtration system. Built from durable acrylic and sized for 200–300 gallon systems, it provides dedicated sections for mechanical filtration, skimming, and return equipment while maintaining a clean, accessible layout.
This version introduces a mid-size footprint between the 36" and 48" models, giving you more working room without requiring a larger stand. Adjustable baffles allow you to fine-tune water depth between 5–9 inches, while features like triple intake drains, probe holders, and integrated heater mounts help streamline equipment placement and system management.
Key Features
• Durable acrylic construction with open, accessible layout
• Triple 1.5" intake drains handle higher flow systems
• Dual 7" filter sock holders with 200-micron socks included
• Adjustable water depth from 5" to 9" for skimmer compatibility
• Bubble diffusing intake chamber reduces microbubbles
• Built-in probe holder and tubing organizers for clean installs
• Dedicated heater holder and emergency drain holder
Ideal For
• 200–300 gallon reef aquariums needing larger sump volume
• Systems running higher flow with multiple drain lines
• Hobbyists upgrading from cramped or undersized sumps
• Setups using fleece filters like Klir Di-7 (compatible fit)
• Clean, organized builds with controllers and probes
What's Included:
• IceCap 39 Reef Sump V2
• Dual 7" filter socks (200 micron)
Specifications:
• Model: IC-SS39
• Recommended Tank Size: 200–300 gallons
• Dimensions (LxWxH): 39" x 22" x 16"
• Material: Acrylic
• Intake Drains: Three (3) x 1.5"
• Filter Sock Holders: Two (2) x 7"

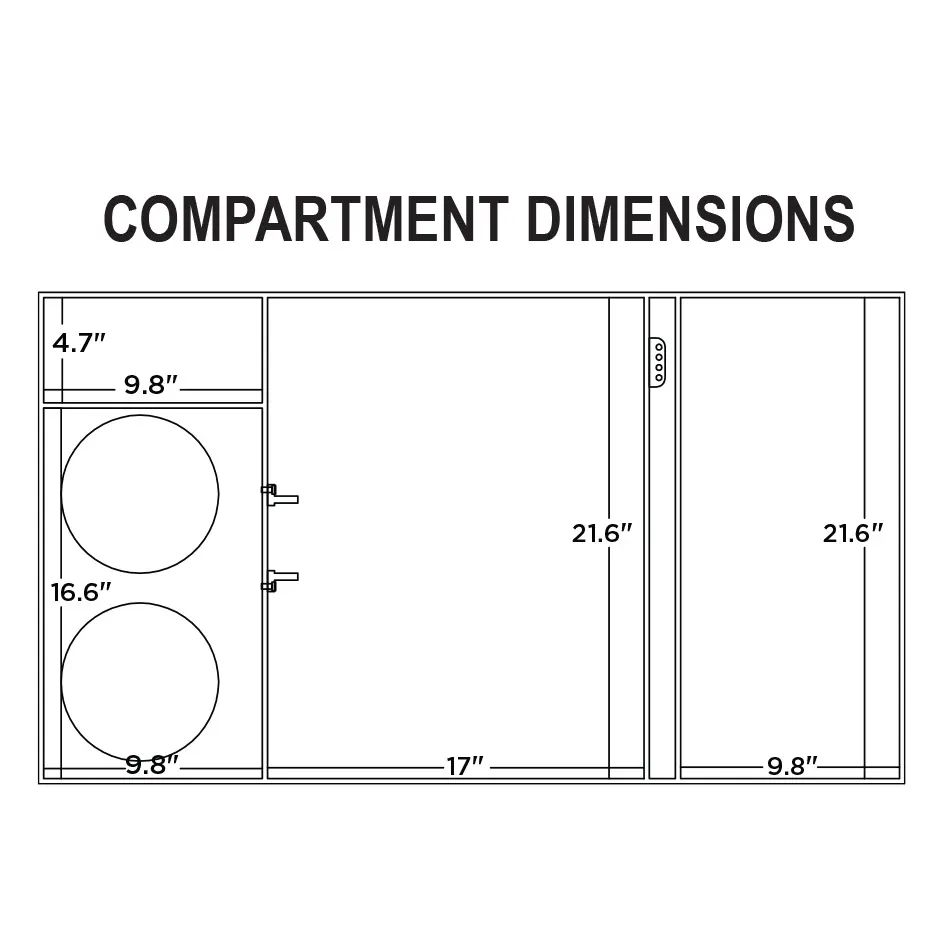

• Skimmer Section: 17" x 21.6"
• Return Section: 9.8" x 21.6"
• Adjustable Water Depth: 5"–9"
• Probe Holder: Triple probe holder
• Tubing Holders: Four slots
• Heater Holder: Dual heater holder
• Compatible Filter: Klir Di-7 fleece filter (not included)
• Warranty: 1 year
Instructions & Pro Tips
- Position the sump inside the aquarium stand on a level surface.
- Connect up to three 1.5" drain lines from the overflow.
- Install filter socks or compatible fleece filter in intake chamber.
- Set baffle height to achieve desired skimmer water depth (5–9").
- Place skimmer, heaters, and probes in designated sections.
- Install return pump in return chamber and connect plumbing.
- Fill system and test for proper flow and water level stability.
Safety Notes:
• Ensure sump is fully supported across the base before filling.
• Do not exceed recommended tank size and flow capacity.
• Check all plumbing connections for leaks before operation.
Pro Tips
Match your skimmer to the adjustable water depth.
Dialing in the correct water height (5–9") prevents inconsistent skimmer performance and reduces tuning frustration.
Plan your equipment layout before plumbing.
Take advantage of probe holders, heater mounts, and tubing slots to avoid clutter later.
Consider upgrading to fleece filtration early.
The sump is sized to fit the Klir Di-7, making it easy to move away from filter socks without reconfiguring your system.
Use all three drains only if your overflow supports it.
Running fewer drains is fine—just ensure your flow rate matches your plumbing design.
