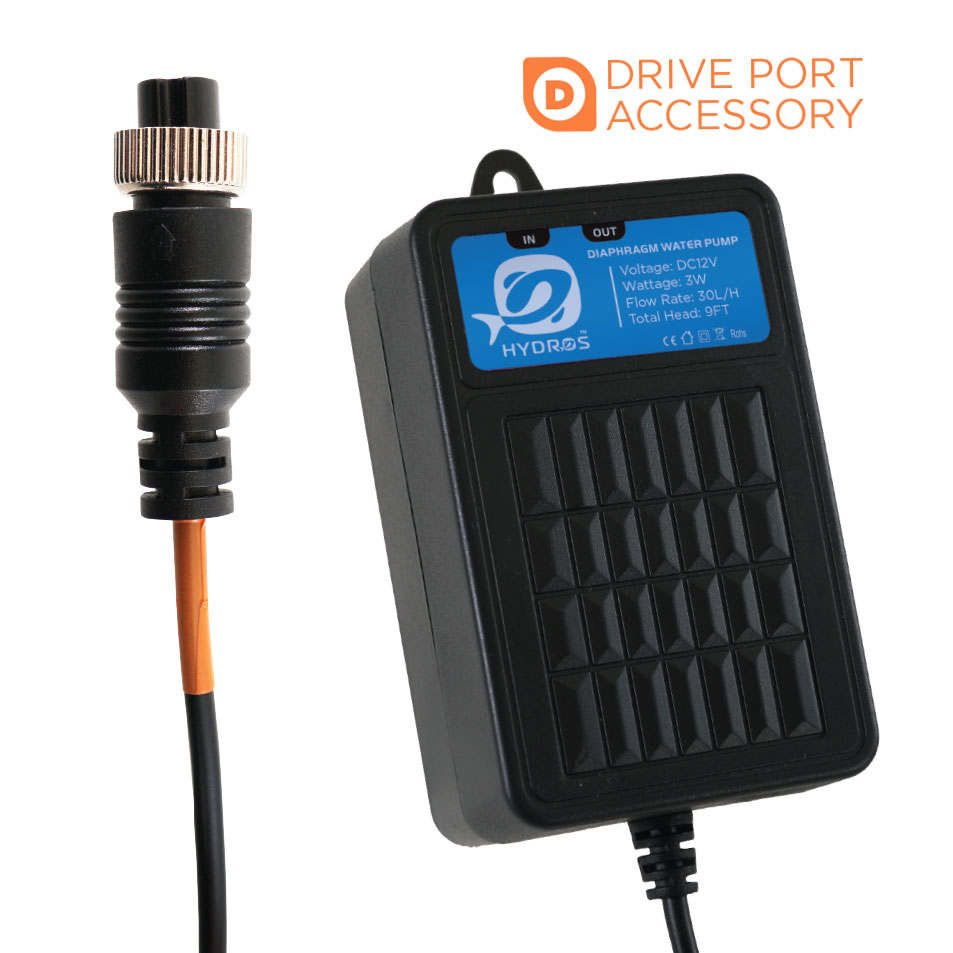

HYDROS Diaphragm Water Pump
SKU: HDRS-DWP30
MSRP: $ 47.34
-
Available Through Authorized Retailer
The HYDROS Diaphragm Pump is a small 12V Drive Port accessory that uses positive external displacement to move liquids.
Requires an available Drive Port on a HYDROS Control
HYDROS
USA-built aquarium automation system that monitors & controls equipment from an intuitive app.
Diaphragm Water Pump

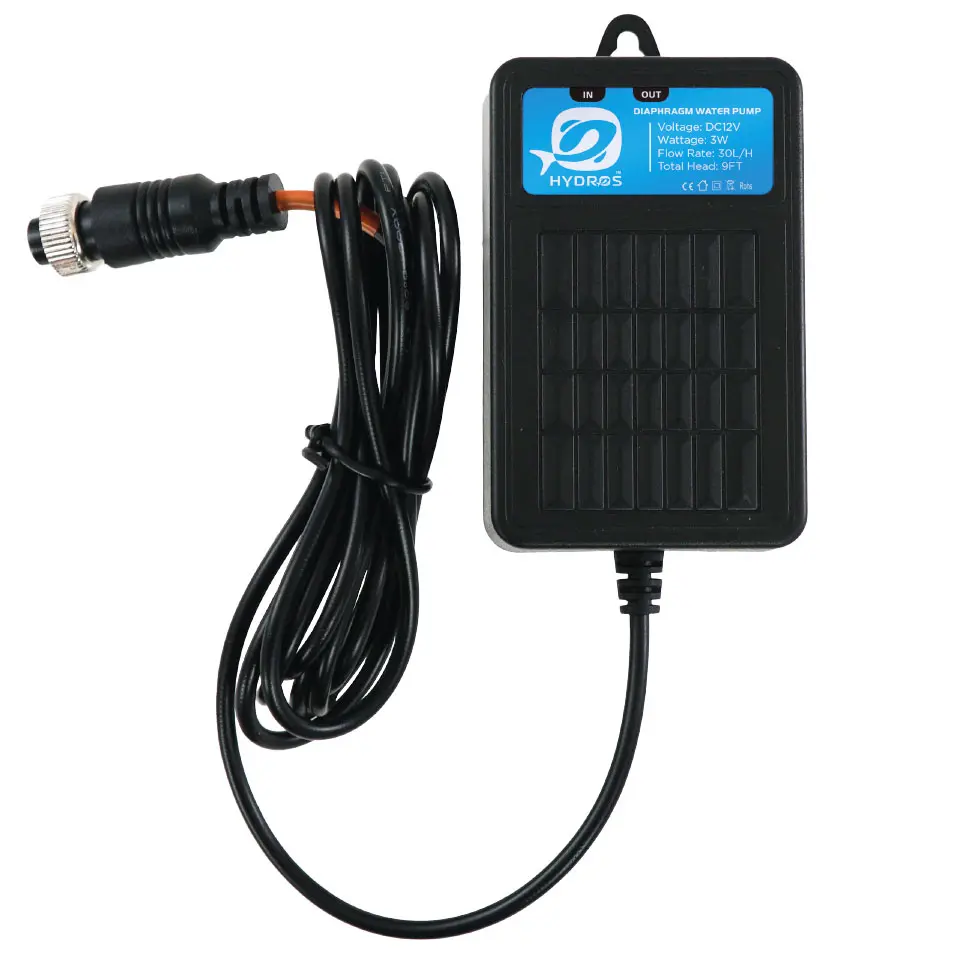

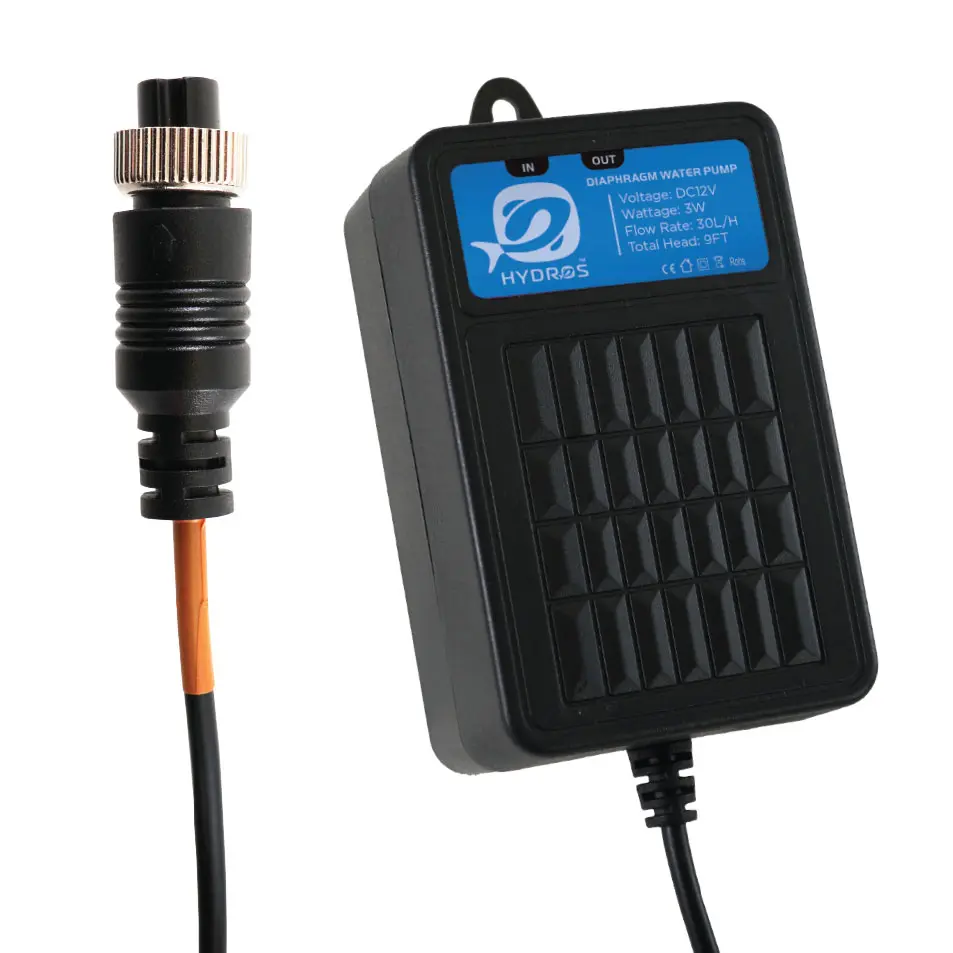

The HYDROS Diaphragm Pump is a small 12V Drive Port accessory that uses positive external displacement to move liquids. When used with an anti-syphon valve, sold separately, it is a smart alternative to standard internal auto-top-off (ATO) pumps. It is fitted with a GX-2 connector and can be powered and controlled by an available DRIVE PORT on your HYDROS Device.
Key Features:
- Self priming
- Can safely run dry
- Prevents backflow siphons when used with a hang-on-back overflow
- Surface mountable pump
- Includes tubing and universal holder

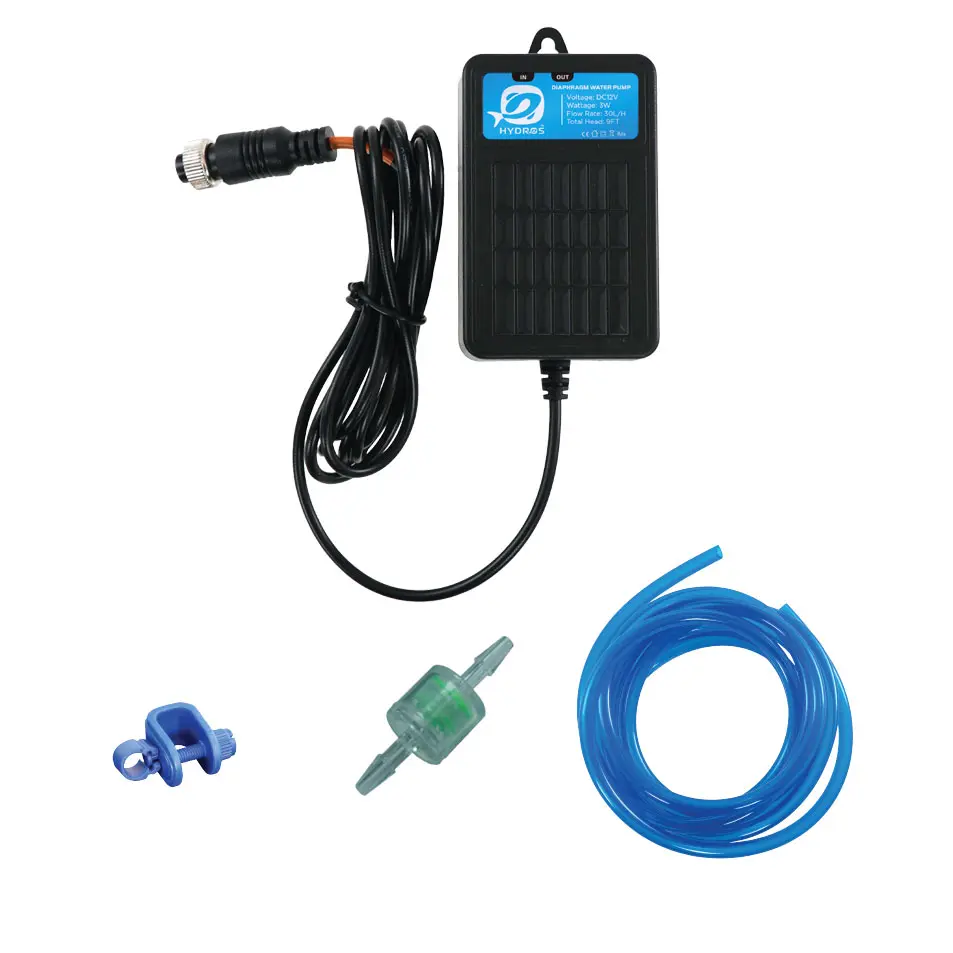

Includes:
- HYDROS Diaphragm Pump (plugs into HYDROS Drive Port)
- Universal Han-On Tubing Mount
- Inline Intake Filter
- Tubing 6.5ft (5/32in ID - 1/4in OD)
HYDROS Diaphragm Pump Specs:
- Diaphragm Pump Life: 500hrs

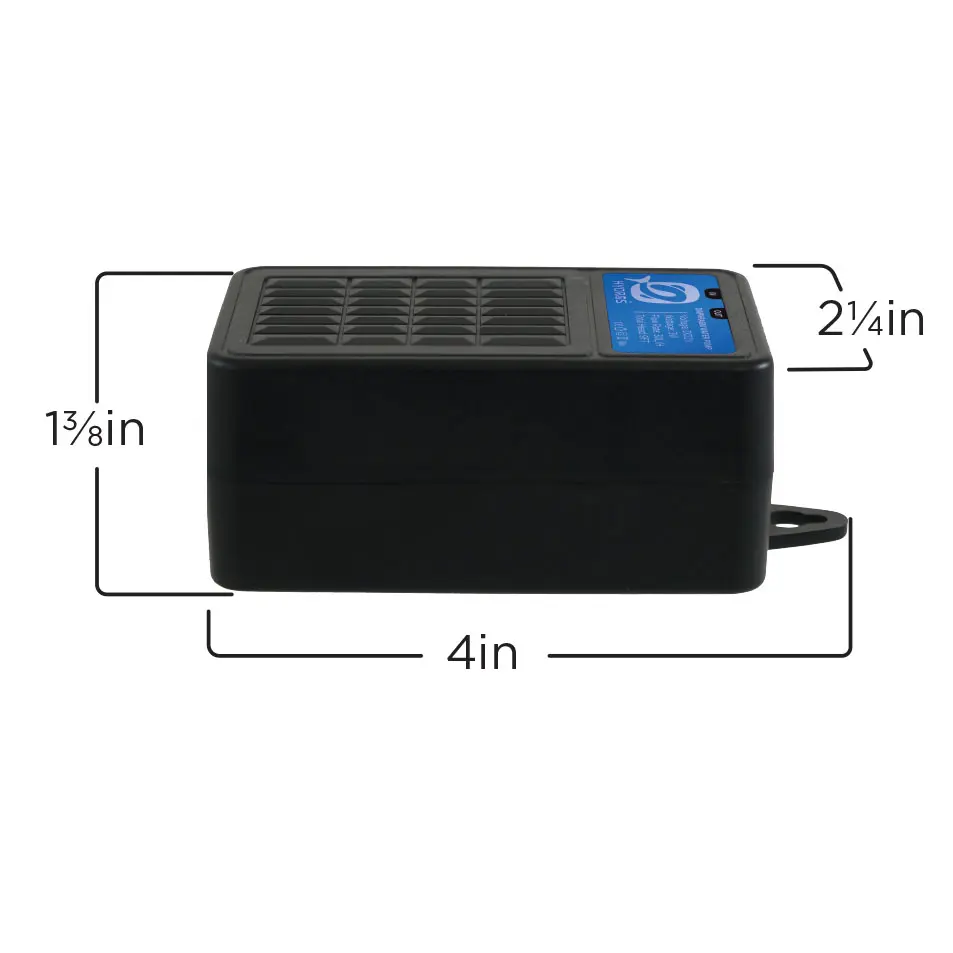

- Dimensions: 4 x 2.25 x 1.375 (LxWxH)
- Maximum Head: ~9ft
- Flow Rate: 8gph
- Power: 3w
- Cable Length: 6ft
- Tubing Size: 6.5ft, ID 5/32in, OD 1/4in
WARRANTY
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- One (1) year warranty on the device body/housing
- One (1) year warranty on dosing pump motor (not dosing head(s))
- Tubing, head rollers, and head bushings are considered wearable parts because they experience regular friction, pressure, and use over time, leading to natural degradation. Since these components are expected to wear out during normal operation, they are not covered under the limited warranty.
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
