HYDROS Control X3 / XP8 PRO Pack
SKU: HDRS-X3PRO
MSRP: $ 608.99
-
Available Through Authorized Retailer
- The HYDROS Control X3 / XP8 PRO Pack bundles two HYDROS controllers into one complete starter system.
- It is built for hobbyists who want pH monitoring and eight controllable outlets from day one.
- A pH probe, temperature sensor, and Command Bus cable are included, so you can start right away.
- The Control X3 handles sensors and probes while the XP8 powers and monitors up to eight devices.
HYDROS
USA-built aquarium automation system that monitors & controls equipment from an intuitive app.
Two-Controller Pro Pack with pH Monitoring and Eight Monitored Outlets
The HYDROS Control X3 / XP8 PRO Pack combines two HYDROS controllers into one ready-to-connect system for saltwater and freshwater aquariums. The Control X3 handles monitoring, with two sense ports for sensors such as temperature, water level, and leak detectors, plus a probe port for pH or ORP. The Control XP8 handles power, with eight individually controlled and monitored 120V AC outlets for heaters, lights, pumps, skimmers, and more.

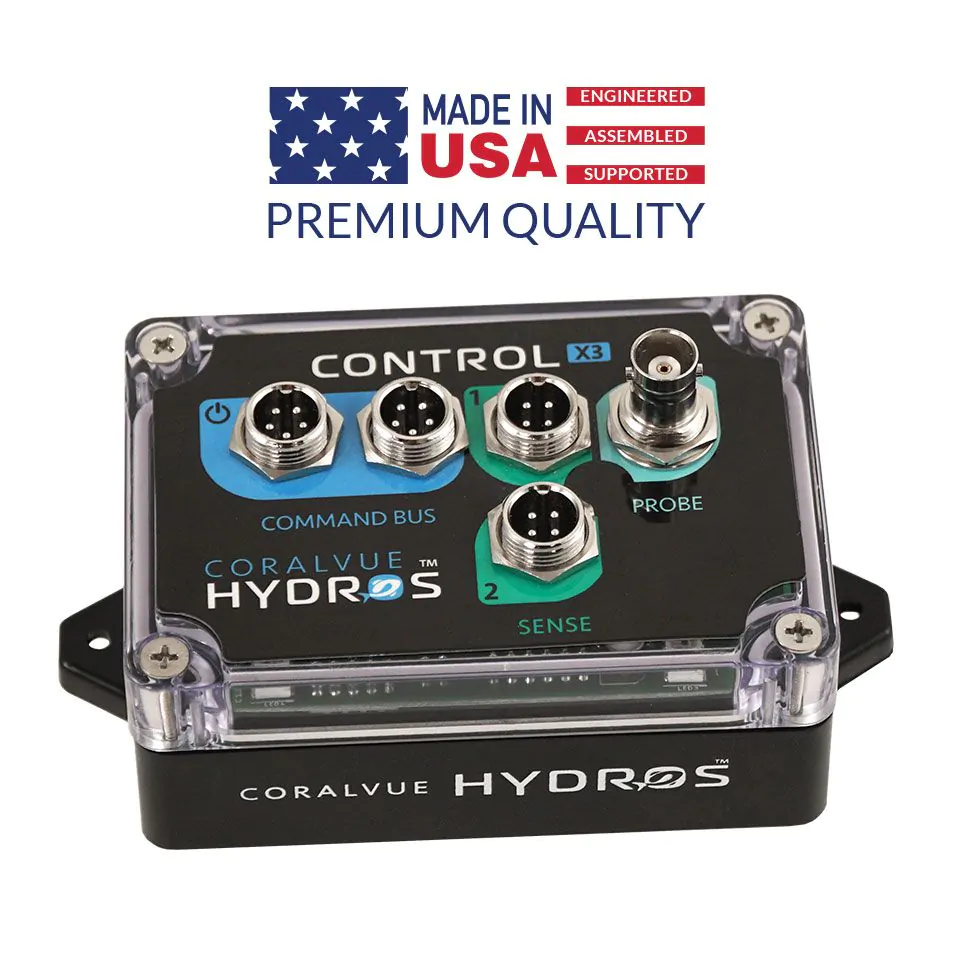

Together, the two controllers link over the included Command Bus cable and share decisions across the system with no single point of communication failure. Both can send alerts to your phone, and both can add up to eight WiFi devices through a HYDROS WiFi Power Strip or Smart Plug (sold separately). All HYDROS products are engineered, assembled, and supported in the USA.
Key Features:
- Control X3 with two sense ports and one digitally isolated pH/ORP probe port
- Control XP8 with eight individually controlled AC outlets and per-outlet power monitoring
- Included pH probe with calibration solutions and temperature sensor
- Included 6ft Command Bus cable with two terminators to link both controllers
- Dual-core 32-bit processor in each device for fast, on-device decisions
- XP8 can take over decision-making for the system if it is disconnected from the rest of the collective
- Passively cooled XP8 with no noisy fans
- IP65-rated Control X3 for protection against splashes and dust
Ideal For:
- Hobbyists who want pH monitoring and equipment control in one bundle
- Reef keepers replacing basic timers with a monitored, app-controlled power system
- Anyone starting a HYDROS system who wants it to grow with future controllers
Pro Tips:
- Connect the pH probe before you set alert thresholds. Calibrate it with the included solutions first, so your alerts reflect accurate readings.
- Spread heavy loads across outlets. Each XP8 outlet handles up to 8A and the whole bar handles 14A total, so balance heaters and pumps rather than stacking them on a few outlets.
- Use the XP8’s per-outlet monitoring to spot trouble early. A pump or heater drawing unusual power can be an early sign of a failing device.

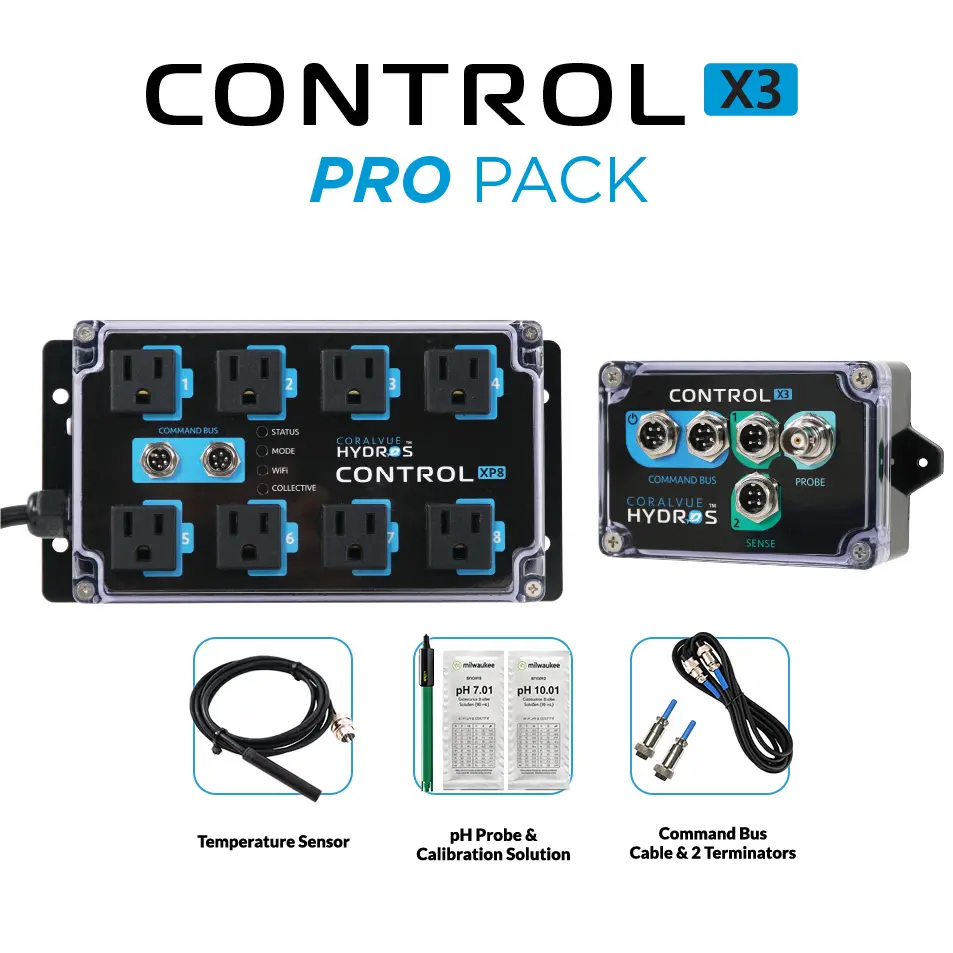

What’s Included:
Control X3 Unit
- Control XP8 Unit

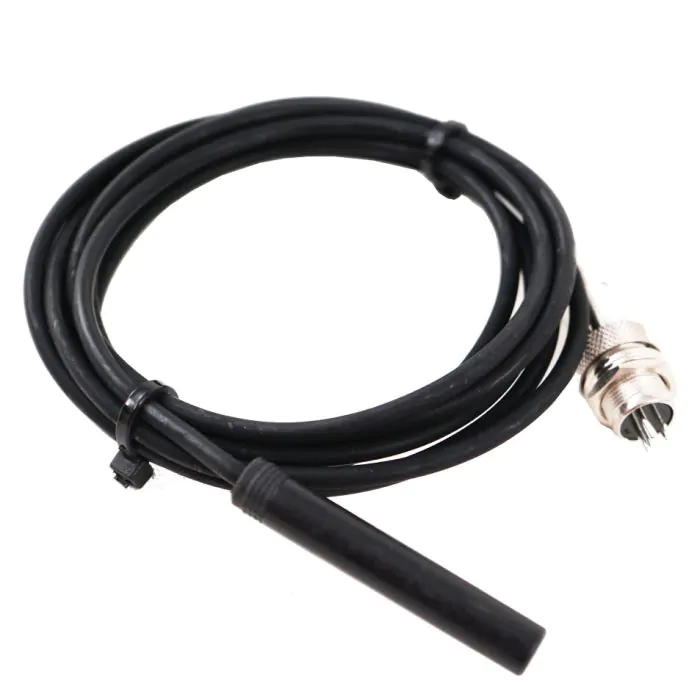

- Temperature Sensor

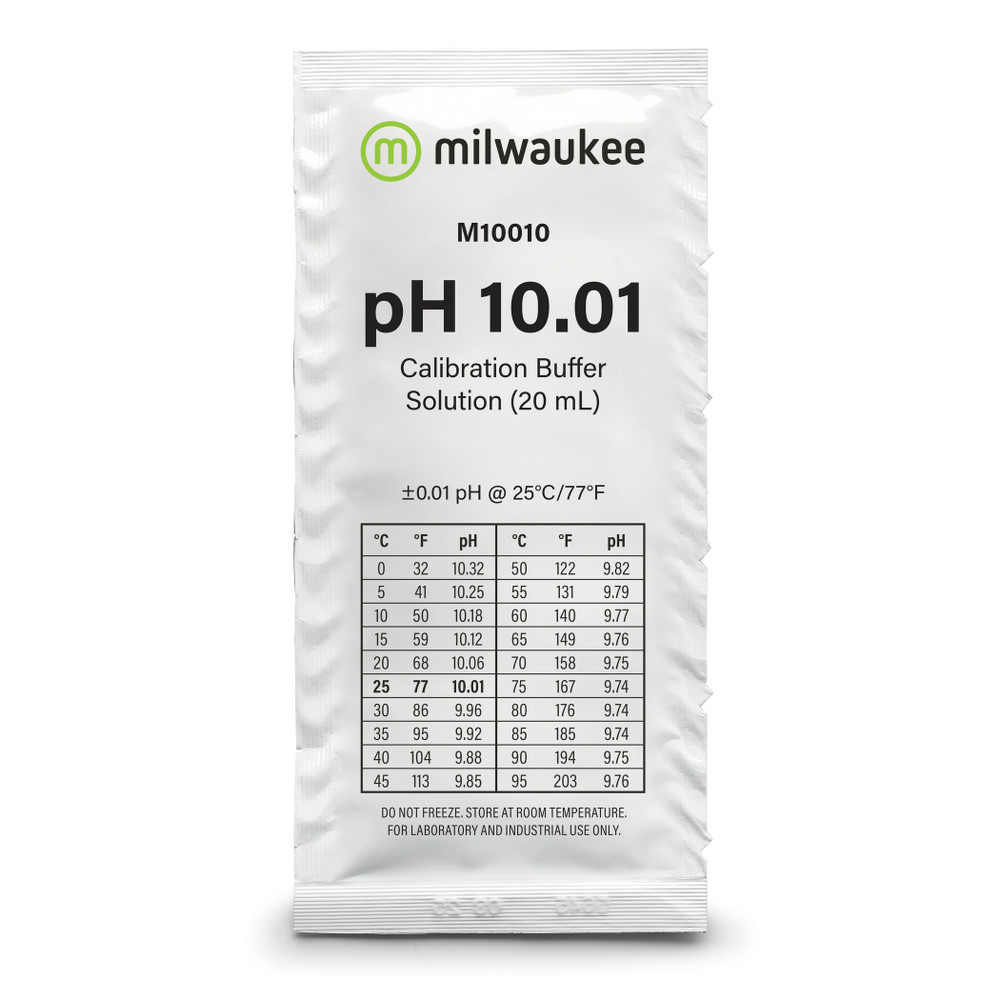

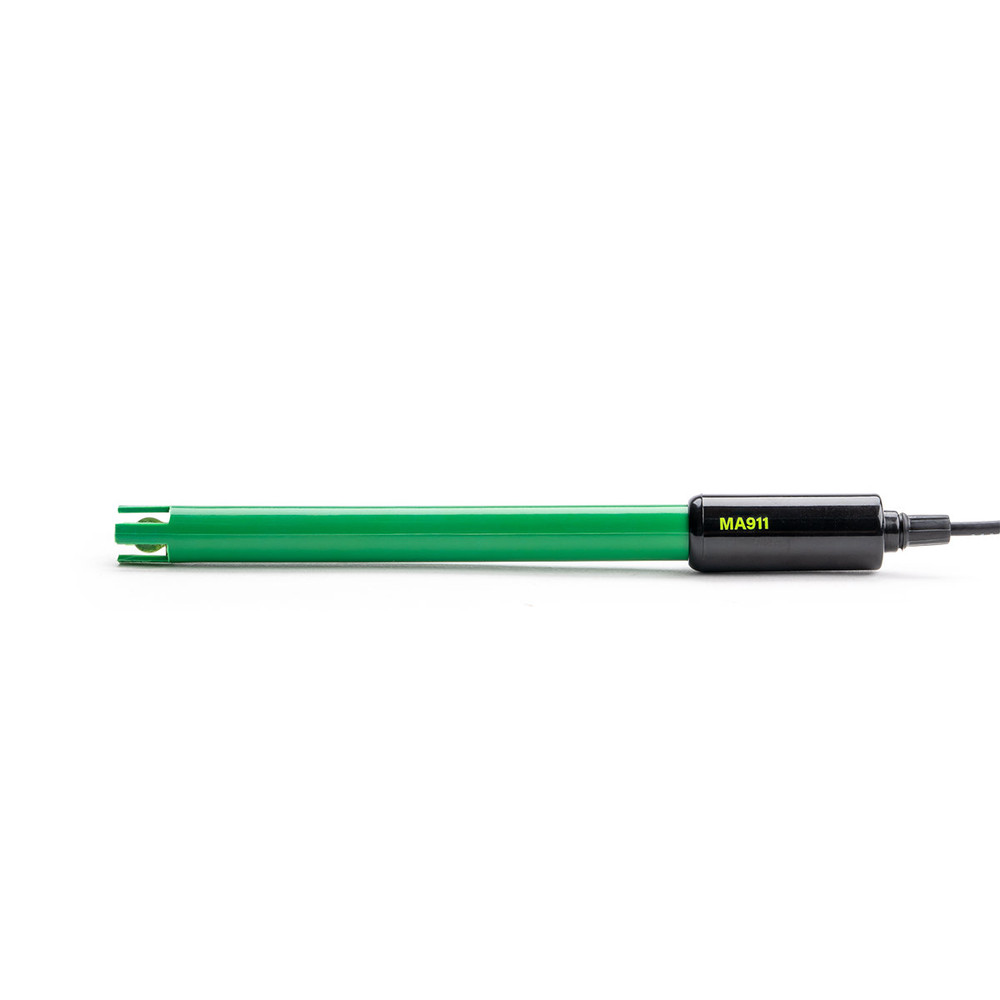

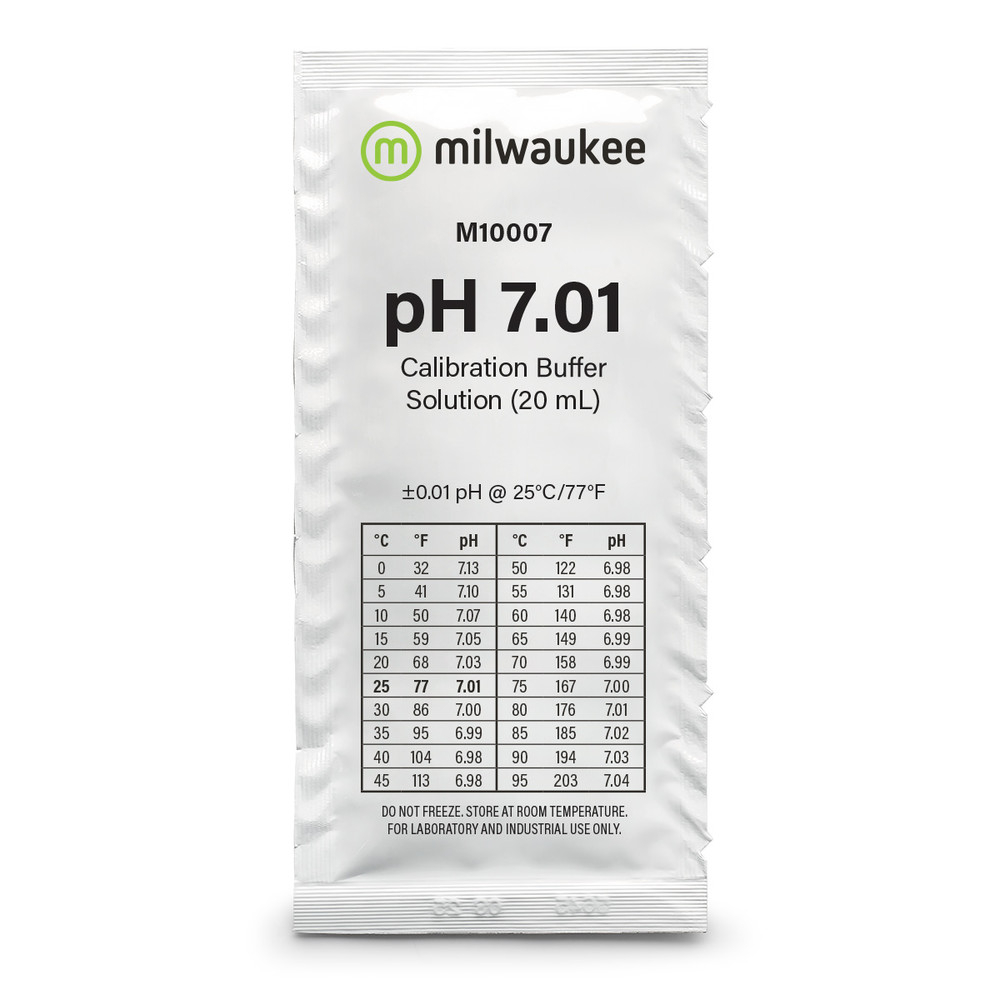

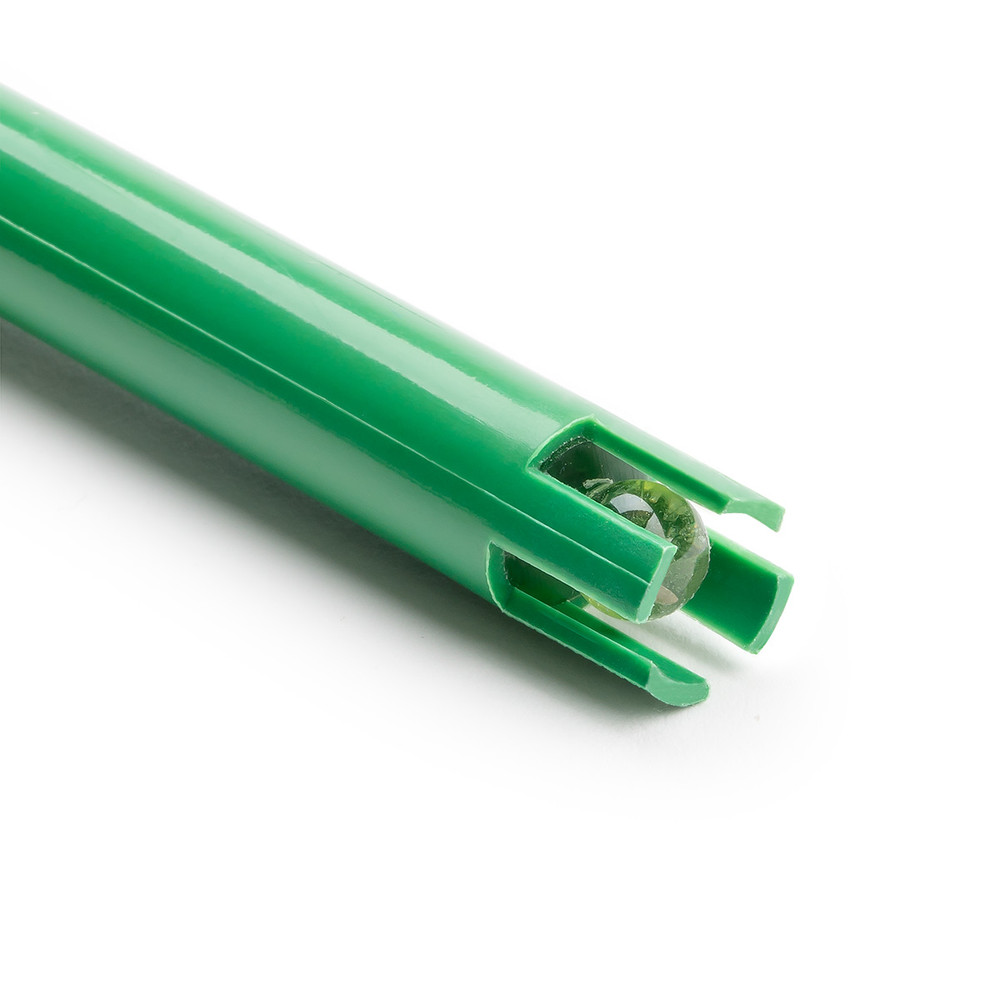

- pH Probe with Calibration Solutions
- 6ft Command Bus Cable with Two Terminators

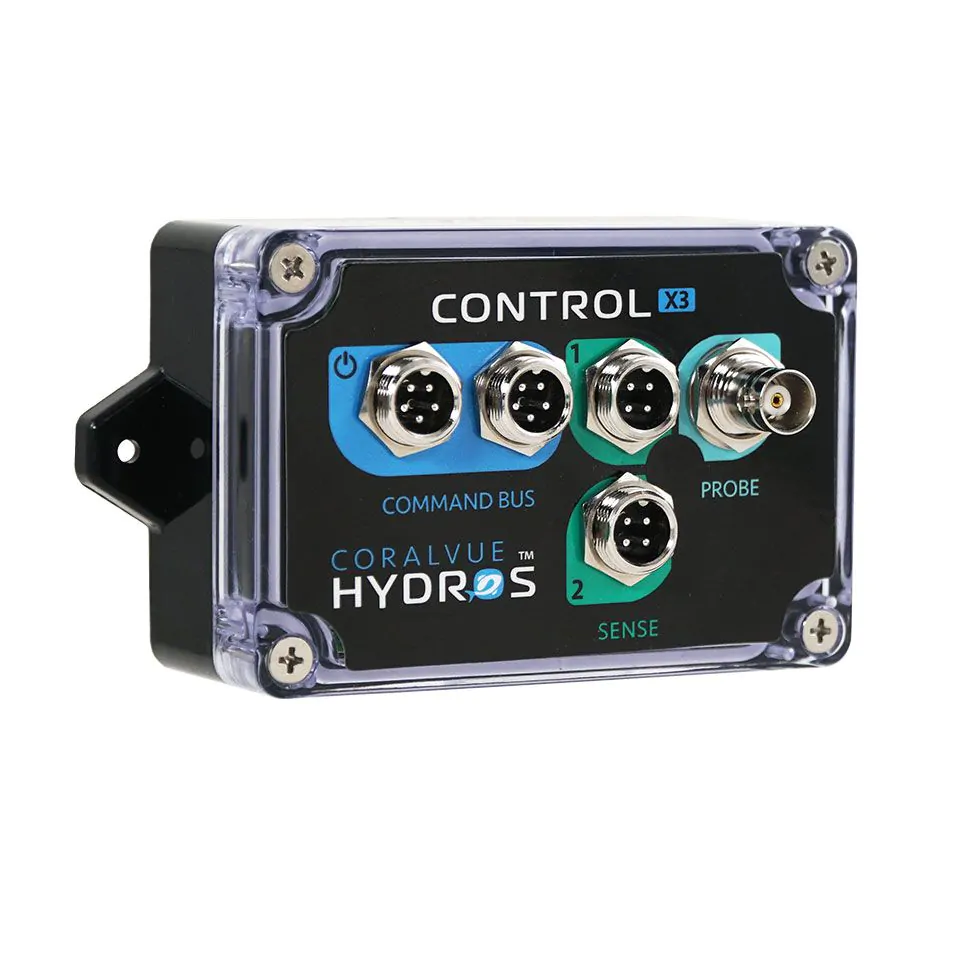

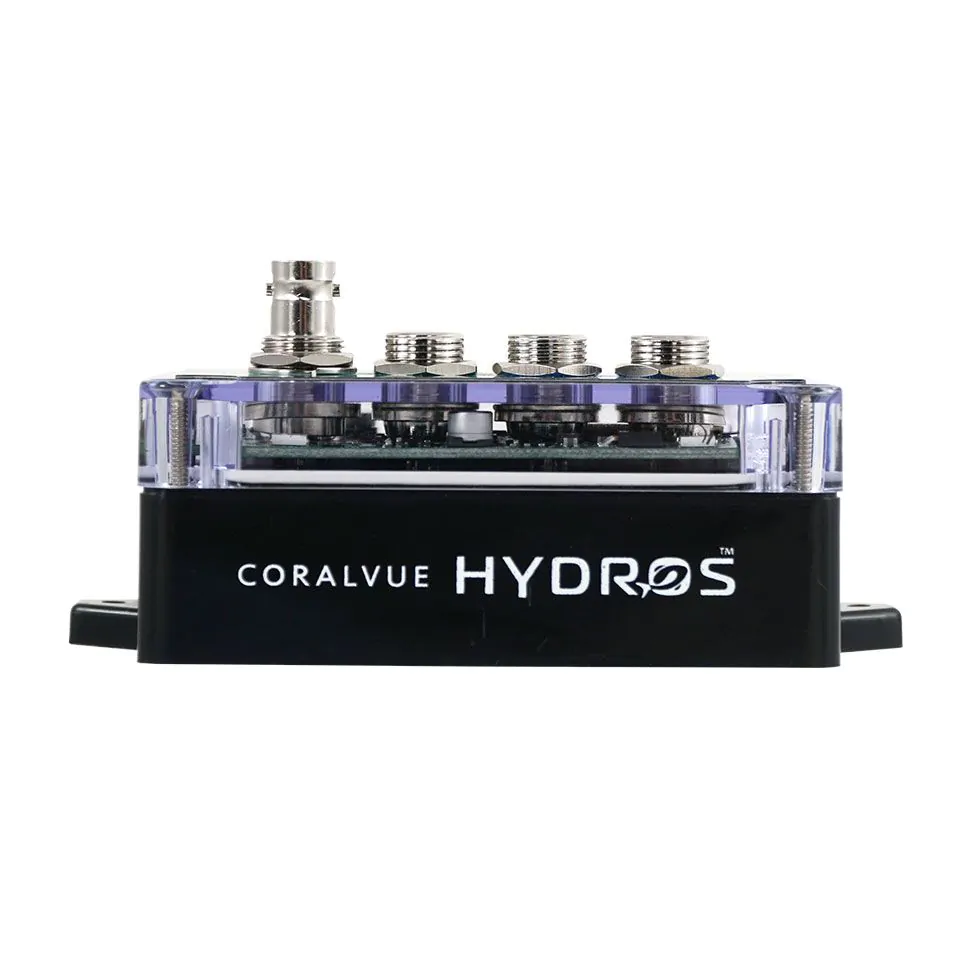

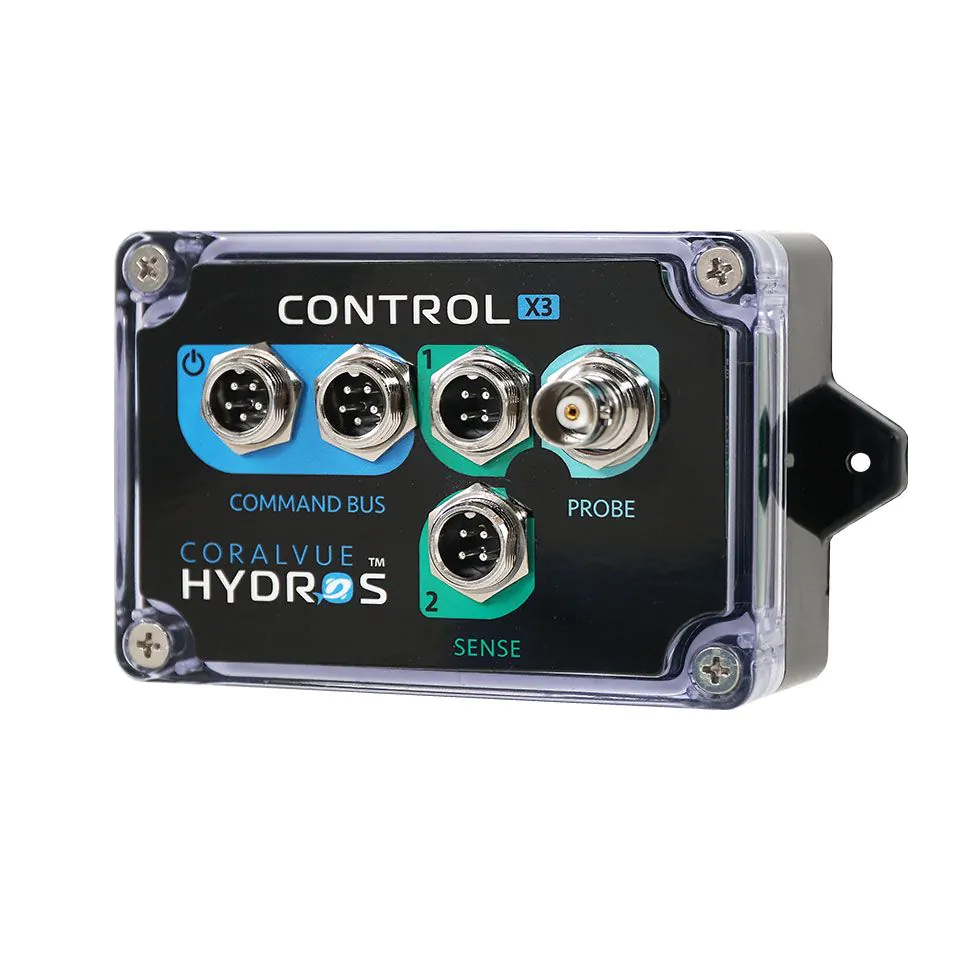

HYDROS Control X3 Technical Specifications:
Physical

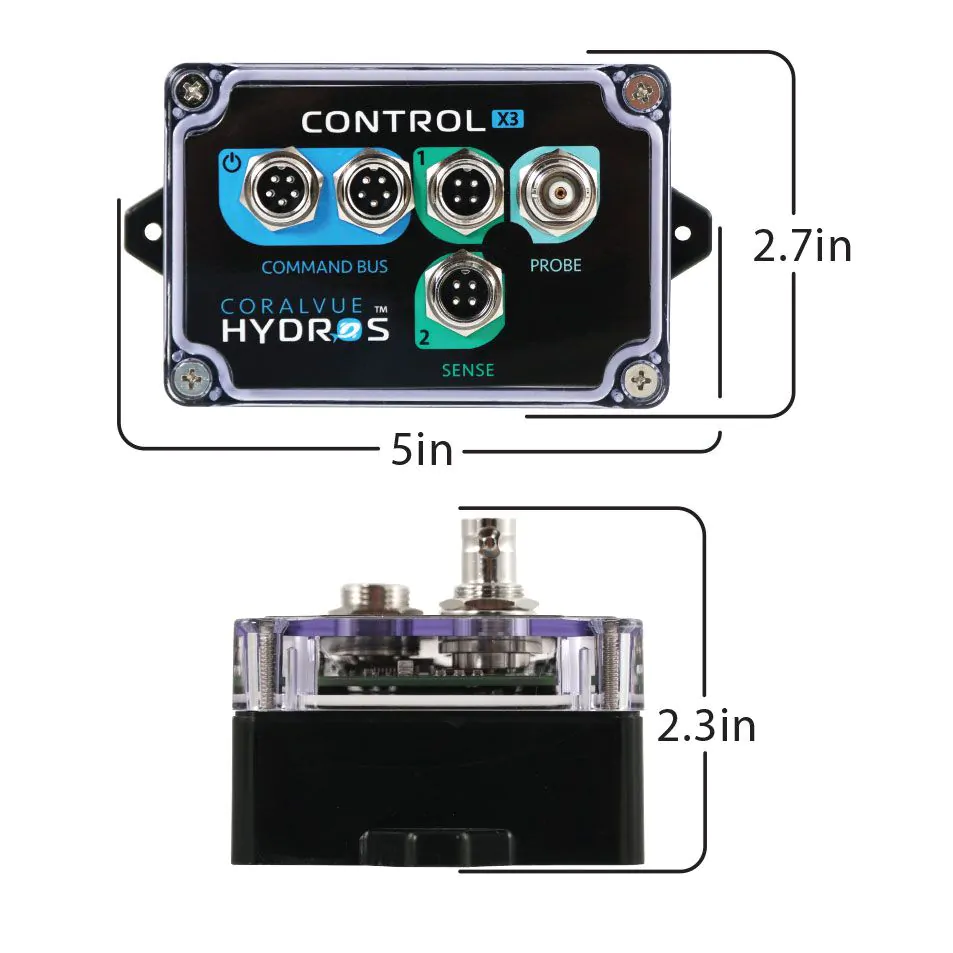

- Dimensions (L × W × H): 5 × 2.7 × 2.3 in
Sense Ports
- Quantity: 2 universal input ports
- Compatible Sensors: Temperature, optical level (single and dual), capacitive non-contact level, rope and point leak detectors, flow rate, magnetic switches, push-button switches
Probe Port
- Quantity: 1
- Type: Digitally isolated pH/ORP input
- Compatible: pH probes, ORP probes
Command Bus
- Quantity: 2 ports
- Function: Data transfer and power delivery to HYDROS accessories

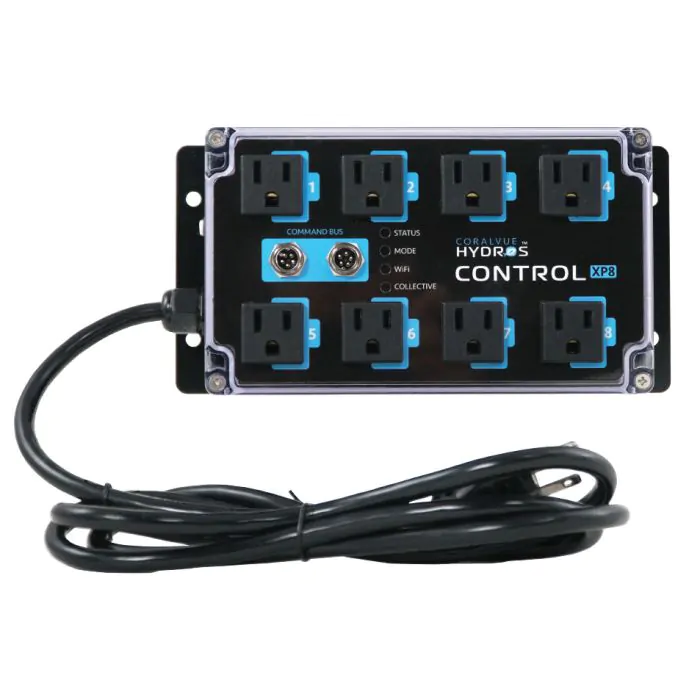

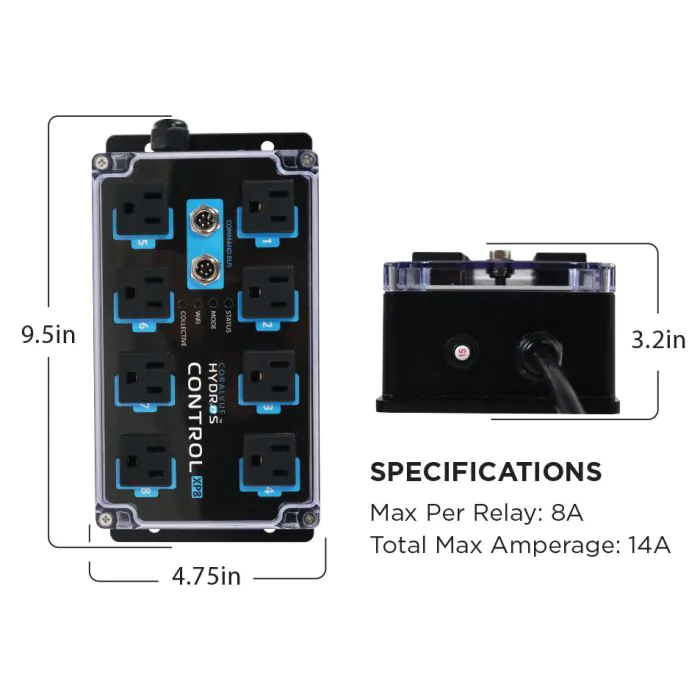

HYDROS Control XP8 Technical Specifications:
AC Outlets
- Quantity: 8 individually controlled outlets
- Max Per Outlet: 8A
- Total Max Amperage: 14A
- Individual power monitoring on each outlet
Power
- Input: Universal voltage, 110V and 220V
- Power Supply: 60W Meanwell
- Cooling: Passive, no fans
Command Bus
- Quantity: 2 ports
- Function: Data transfer and power delivery to HYDROS accessories
Connectivity (Both Devices)
- WiFi device control: Up to 8 devices via HYDROS app
- App: HYDROS cloud-based app (iOS and Android)
- Local control: Available via WiFi even without internet
Processing (Both Devices)
- Processor: Fast dual-core 32-bit
- Control logic: Executed locally on-device
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
