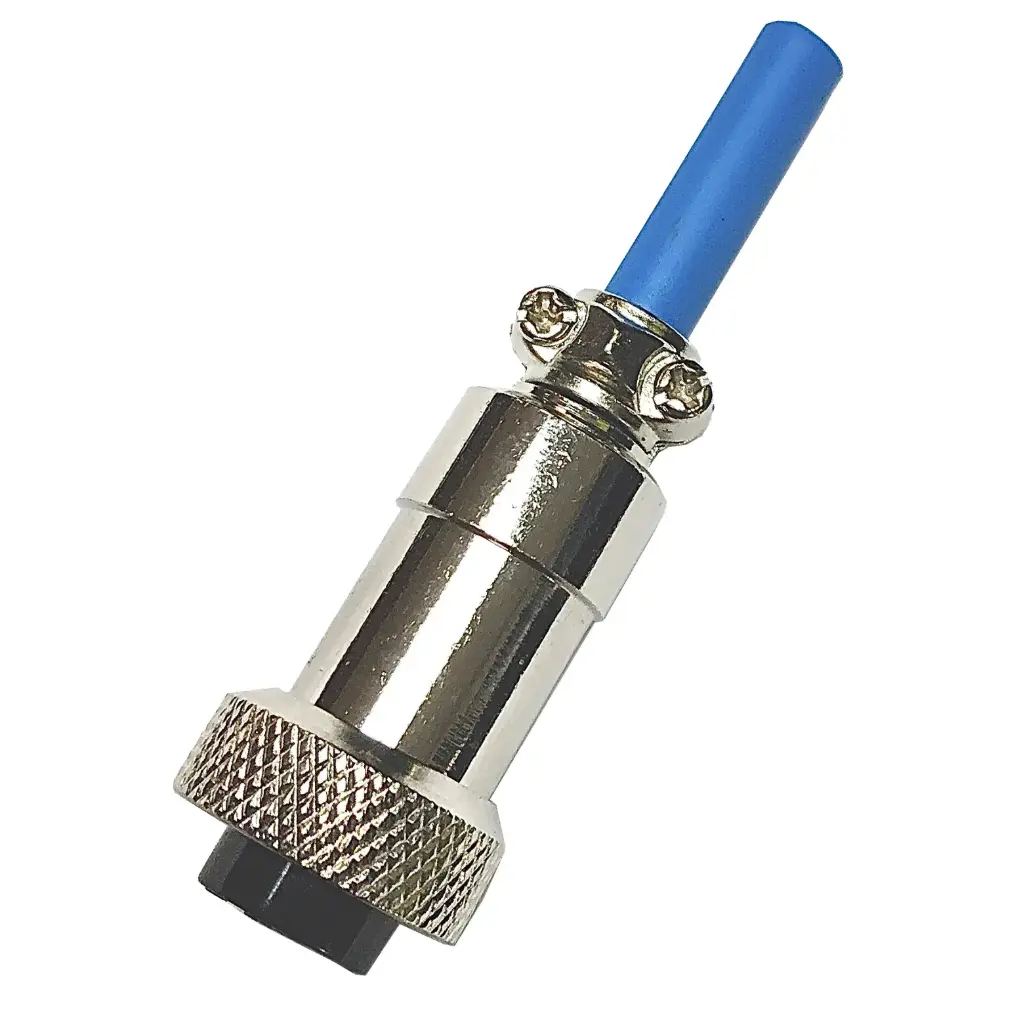

HYDROS Terminator
SKU: HDRS-CBC-TM
- Direct OEM HYDROS Integration: Factory-original command bus terminator engineered specifically for all HYDROS Collective-enabled aquarium controllers and devices.
- Maintains Network Signal Integrity: Provides proper signal termination and impedance matching across the Command Bus communication channel, preventing signal reflections and corrupted data packets.
- Essential for Multi-Device Collectives: Required on any open Command Bus port at the ends of a HYDROS Collective daisy chain linking multiple controllers together.
- Watertight Threaded Design: Features a heavy-duty, marine-safe threaded collar with an internal sealing gasket to protect open bus ports against moisture, humidity, and salt spray.
- Passive Plug-and-Play Operation: Completely passive hardware component that requires zero external power, calibration, or firmware configuration.
HYDROS
USA-built aquarium automation system that monitors & controls equipment from an intuitive app.
HYDROS Command Bus Terminator
Building a scalable, unified aquarium automation ecosystem requires rock-solid data communication between distributed control brains. The HYDROS Command Bus Terminator (SKU: HDRS-CBC-TM / CV-HDRS-CBC-TM) is the official OEM passive bus termination plug engineered specifically for all HYDROS Collective-enabled devices (including Control 2, Control 4, Control X2, Control X4, Control X10, WaveEngine series, Kraken, Minnow, Launch, and Maven).
In the HYDROS architecture, multiple controllers connect to form a single, decentralized "Collective" where devices share sensor data, timers, schedules, and power via heavy-duty 5-pin Command Bus cables. High-speed serial communication networks function like an electrical transmission line: when high-frequency data pulses reach the physical end of an open cable or port without proper termination, the electrical energy reflects backward across the line. These "reflected data echoes" collide with incoming signals, causing packet loss, communication delays, or intermittent offline device alarms. The HDRS-CBC-TM caps the end of the bus line with the exact matching electrical impedance, absorbing outgoing signals cleanly and preventing data rebound. Additionally, its threaded locking collar seals the unused 5-pin port against corrosive salt spray and high cabinet humidity.
Ideal Application Scenario
If you are linking two or more HYDROS controllers into a Collective, expanding an existing setup with additional modules, replacing a lost or corroded terminator plug, or troubleshooting intermittent bus communication errors in your HYDROS app, installing an authentic HDRS-CBC-TM restores network stability and signal fidelity.
(Note: Package includes (1) HYDROS Command Bus Terminator plug).
What’s Included:
(1) HYDROS Command Bus Terminator (HDRS-CBC-TM)
Technical Specs:
SKU / Factory Part Identifier: HDRS-CBC-TM (CV-HDRS-CBC-TM)
Component Type: Passive Bus Termination Module (Impedance Matching)
Connector Interface: 5-Pin Threaded Circular Industrial Connector (Female Collar)
Environmental Rating: Weatherproof / Salt-Resistant with Internal Sealing O-Ring
Operating Voltage / Power: None Required (Passive Device)
Primary Compatibility: HYDROS Control 2, Control 3, Control 4, Control X2, Control X3, Control X4, Control X10, WaveEngine, WaveEngine LE, WaveEngine V2, Minnow, Launch, Kraken, Maven, and all HYDROS Collective devices equipped with Command Bus ports
Installation & Setup Guidelines:
Temporarily disconnect power or set your HYDROS Collective into a safe state before altering physical bus wiring.
Daisy-chain your HYDROS devices in a linear sequence using official HYDROS 5-pin Command Bus cables.
Identify any remaining open, unused 5-pin Command Bus ports located at the physical ends of your collective chain.
Align the internal keyway pins of the HDRS-CBC-TM terminator with the female socket on the open Command Bus port.
Push the terminator straight onto the port and hand-tighten the threaded locking collar clockwise until snug against the rubber gasket.
Reconnect power to the collective and open the HYDROS mobile app to confirm that all connected devices register with solid communication status indicators.
Pro Tips:
- Never Leave Open Command Bus Ports Unterminated. In a HYDROS Collective, every device chain is a transmission line. Leaving an open Command Bus port without either a bus cable or a terminator plug invites electrical noise and signal reflection that can cause random disconnects across all devices in the chain. Always verify that both physical ends of your collective bus are properly terminated or powered.
- Hand-Tighten Only to Preserve Gasket Integrity. The threaded collar on the HDRS-CBC-TM is engineered to compress an internal silicone gasket against the port face for a waterproof seal. Never use pliers, channel locks, or wrenches to tighten the collar. Firm hand-tightness creates an IP65 moisture seal without cracking the collar threads or crushing the sealing gasket.
