HYDROS DC Micro Pump
SKU: HDRS-DP-200H
MSRP: $ 30.02
-
Available Through Authorized Retailer
Compact Drive Port powered micro pump for control via your HYDROS system.
IMPORTANT: Pump ONLY. Auto Top Off tubing sold separately.
HYDROS
USA-built aquarium automation system that monitors & controls equipment from an intuitive app.
HYDROS DC Micro Pump
With a HYDROS DC Micro Pump and a HYDROS Optical Water Level Sensor (or Float Sensor), you can use a HYDROS Control as an auto top-off (ATO) system. Just plug the pump into a Drive Port and the water level sensor into a HYDROS Control and adjust your settings in the HYDROS app. In addition, you can add additional HYDROS optical water level and/or mechanical float sensors to your ATO configuration for redundancy and set high/low points.

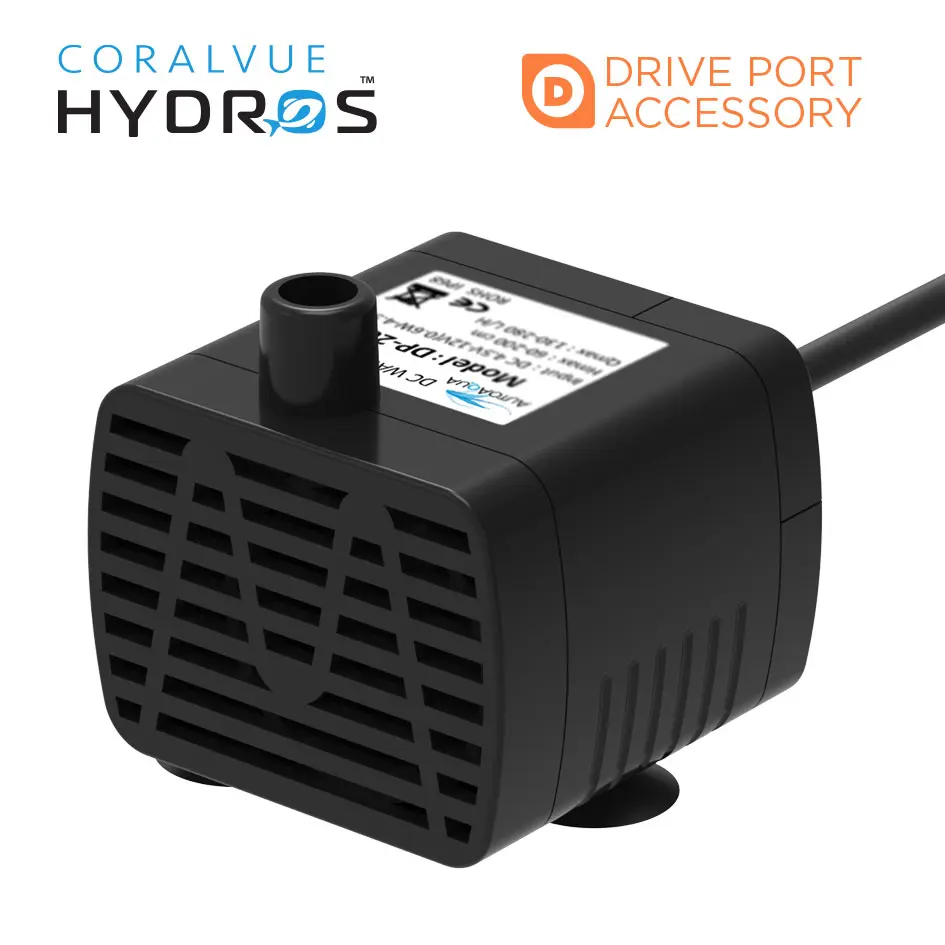

The HYDROS DC Micro Pump is powerful despite its small size. The pump measures 1.6” L x 1.062” W x 1.45” H. The pump has a maximum head pressure of 8’. The flow rate of the pump is 74 gallons per hour. This 12V brushless pump draws a maximum of 4.5W and has an average life expectancy of 30,000 hours (over three years). When connected to a Drive Port on a HYDROS Control and the controller will supply power to the pump, so no additional cords or power bricks are required for operation. Using a HYDROS aquarium controller for your auto top-off system is a reliable solution and helps clear wire clutter in and around your aquarium.
HYDROS DC Micro Pump Specs:
Size: 1.6” L x 1.062” W x 1.45” H
Max Head: 8’
Power: 4.5W @ DC12V
Style: DC Brushless
Life: 30,000 hours (3+ years)
- Tubing Size: 8.5mm OD, 6.5mm ID

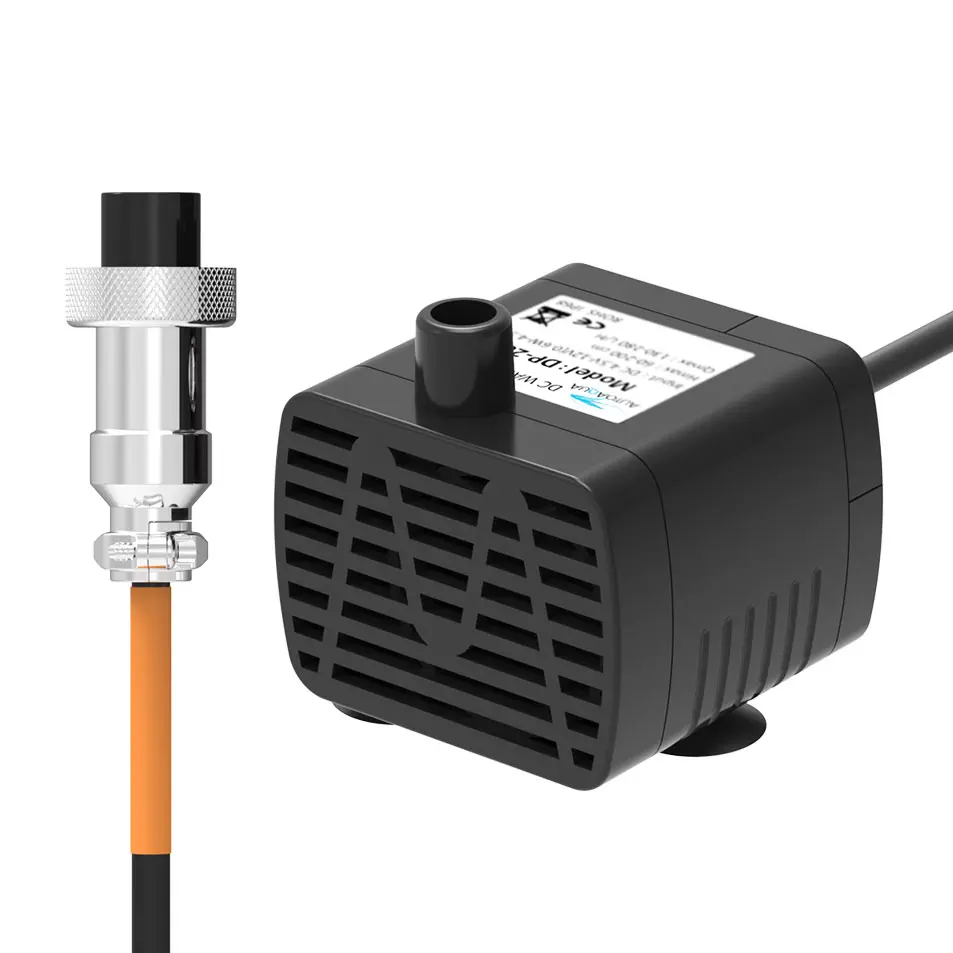

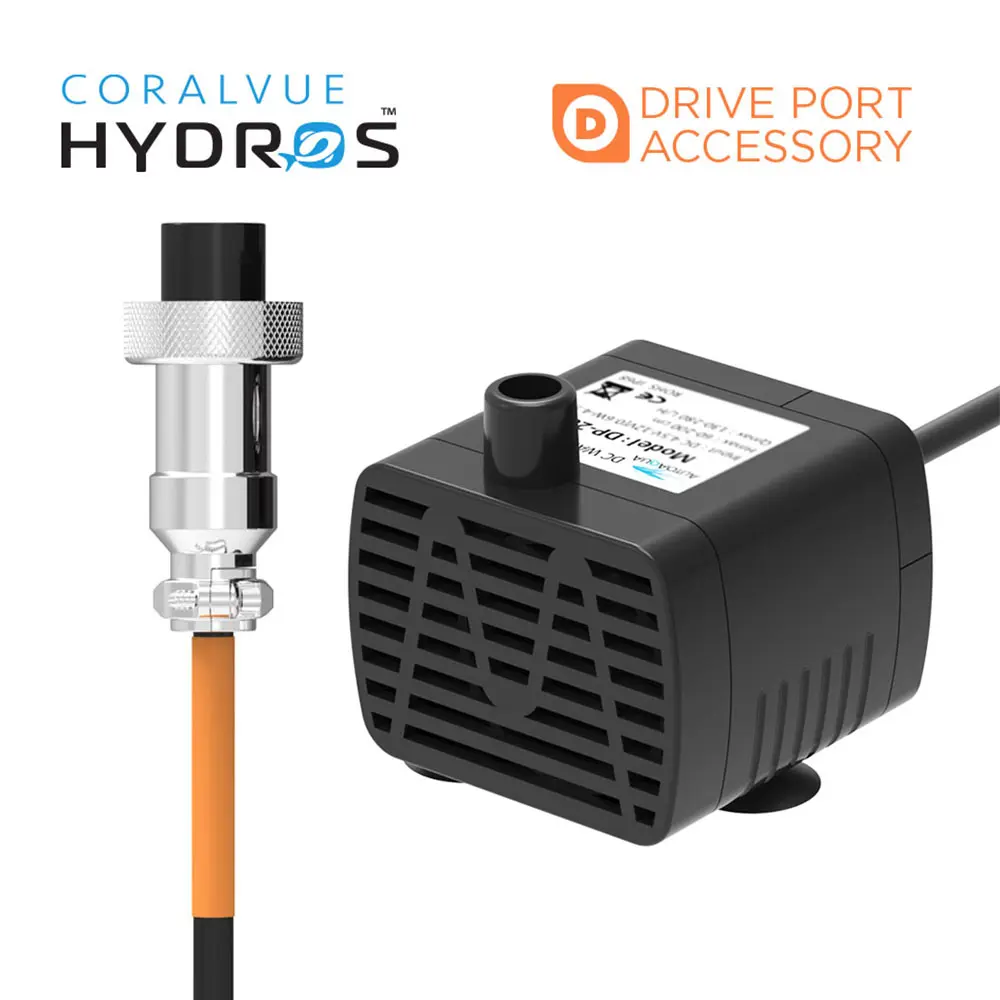

The HYDROS DC Micro Pump uses a GX12 aviation-style connector, so HYDROS Controls maintain their IP65 rating (dust-tight and protected from water spray at any angle).
Powered and controlled by plugging into a Drive Port on the HYDROS Control X2 or Control X4. No other power cord is required.
It is manufactured by AutoAqua, an official HYDROS Technology Partner.
The HYDROS DC Micro Pump is an official HYDROS Accessory manufactured by AutoAqua in Taiwan. Creators of the Smart ATO Micro, AutoAqua is one of the most well-known and trusted makers of ATO systems in the aquarium hobby today. CoralVue has thoroughly tested the DC Micro Pump to ensure seamless compatibility with the HYDROS platform. The product development team at CoralVue engineered the pump, so it connects with a Drive Port on the controller using an aviation-style plug for safer operation. No additional power source is needed to run the pump.
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
