IceCap Liquid Dosing Container, 1.5L
SKU: IC-LCT-S
MSRP: $ 47,34
-
Available Through Authorized Retailer
- Slim Space-Saving Footprint: Optimized square profile maximizes narrow cabinet spaces under your sump, sliding cleanly alongside multi-stage dosing equipment networks.
- Integrated Bottom-Siphon Draw Tube: Built-in rigid internal bottom acrylic straw draws fluids right down to the canister floor, minimizing unspent chemical waste.
- Quick-Connect Push-Fit Bulkhead: Outfitted with an integrated 1/4" push-fit output node (1/4in) that tightly seals standard RO/DI tubing paths without clamping friction.
- Wide Easy-Refill Top Open Opening: Fully removable wide-mouth top allows clean powder replenishment or liquid pouring without requiring separate specialized funnel tools.
- High-Clarity Volumetric Tracking: Transparent side walls provide immediate visibility to monitor remaining liquid supplement reserves from across the fish room.
- Chemically Inert Fluid Stability: Molded using stable, premium plastics that prevent reactive leaching when storing highly concentrated reef buffers or salt blends.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.

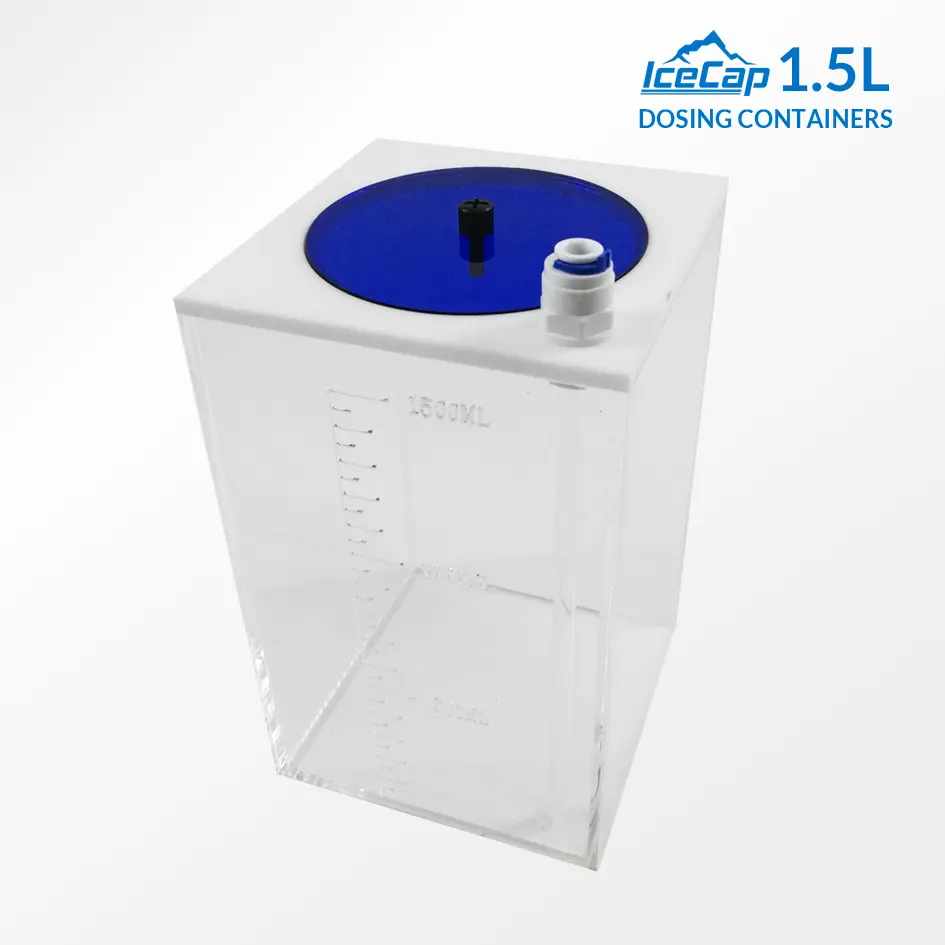

IceCap Small 1.5L Liquid Dosing Storage Container (IC-LCT-S)
The IceCap Small 1.5L Dosing Container (SKU: IC-LCT-S) is an authentic, premium-grade supplement storage reservoir distributed by CoralVue to simplify water chemical management in automated marine reef aquariums and high-tech freshwater planted tanks. Successfully keeping corals or delicate aquatic flora requires a non-stop, consistent addition of fundamental building blocks like Calcium, Carbonate Alkalinity, and Magnesium. Letting these values bounce around or pouring manually from heavy product bottles creates parameter instability that stunts growth. While automated dosing pumps successfully solve the scheduling, feeding them directly from unstable commercial supplement packaging causes cramped cabinets and kinked tubing line path blocks. The IC-LCT-S steps in to provide a rigid, organized, and space-conscious alternative.

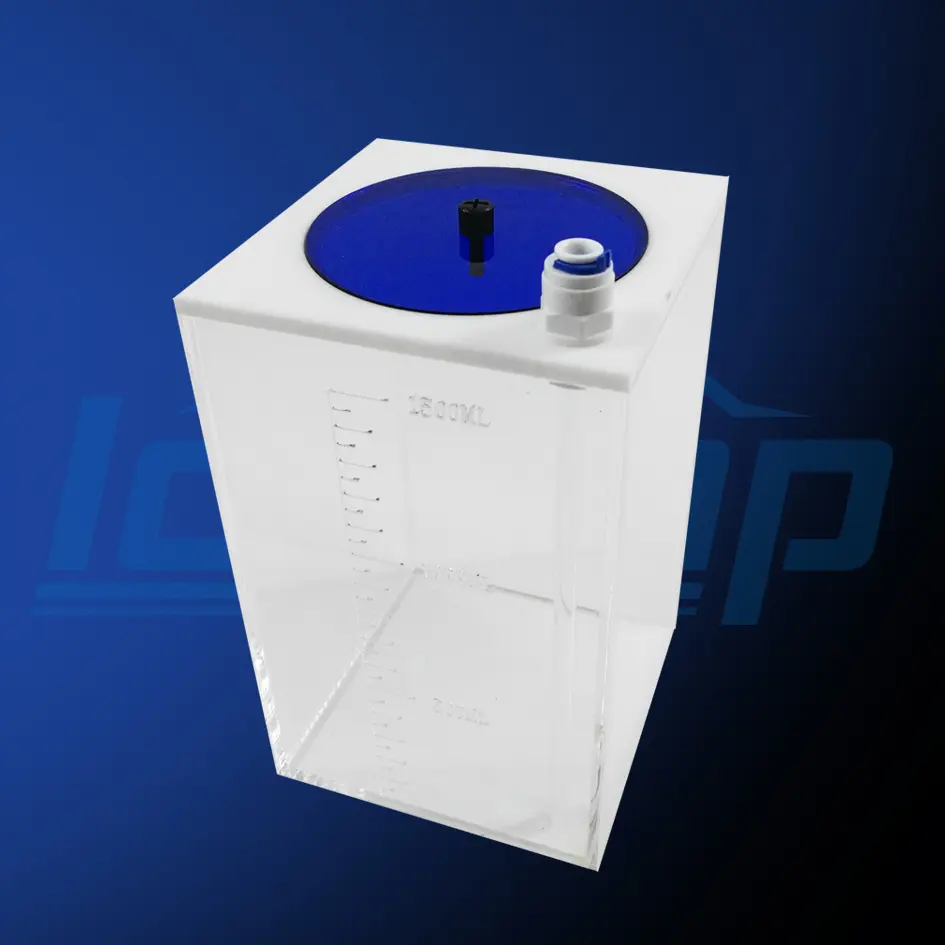

Constructed in a compact 4.3 x 4.3-inch square baseline structure, this 1.5-liter (1500ml) reservoir holds plenty of volume while safely matching narrow, high-density cabinet footprints. The top lid features a wide opening to eliminate spilling during weekly refills. For plumbing ease, a premium 1/4" push-fit bulkhead fitting sits centered directly on the upper cap, running an internal acrylic straw all the way down to the container's bottom floor. Simply push your standard flexible dosing line directly into the top sleeve to form an airtight, leak-proof seal that effectively stops priming failure backpressure. By helping keep your cabinet area completely clean and organized, the IceCap Dosing Container lets you run advanced dosing programs like the Balling or Triton method seamlessly.
Key Features
Prevents Line De-Priming: Airtight top bulkhead gaskets block sneaky air channels from leaking back down into your lines, stopping siphon dropbacks that trick dosing pump calibration.
Optimized Draw-Efficiency: Beveled bottom placement on the internal draw tube ensures your pump siphons every single drop out of the chamber before needing a refill.
Anti-Slide Stability Face: Rigid geometric lines prevent the tip-over hazards typical of round bottles when accidental bumps occur inside tight sump setups.
(Note: This catalog item covers one individual 1.5-liter small dosing canister shell. Perimeter dosing pump nodes, colored line sets, and liquid chemicals are sold under separate item listings).
IceCap Compact Dosing Container Volume Profile
| Container Model Sizing | SKU Part Number | Net Fluid Volume | Physical Housing Footprint Dimensions |
|---|---|---|---|
| IceCap Small | IC-LCT-S | 1.5 Liters (1,500 mL) | 4.3"L x 4.3"W x 7"H |
| IceCap Medium | IC-LCT-M | 2.5 Liters (2,500 mL) | 6.3"L x 4.3"W x 8"H |
| IceCap Large | IC-LCT-L | 5.0 Liters (5,000 mL) | 8.3"L x 4.3"W x 12"H |
What’s Included:
(1) IceCap Small 1.5L Clear Dosing Container Body
(1) Removable Wide-Mouth Container Refill Lid
(1) Pre-Installed 1/4" Push-Fit Tube Bulkhead Node with Bottom-Siphon Straw
Technical Specs:
Official Manufacturing Title: IceCap Dosing Liquid Container 1.5L
SKU / Factory Part Identifier: IC-LCT-S
Total Internal Fluid Capacity: 1.5 Liters (1,500 milliliters / ~50.7 Fluid Ounces)
Total Exterior Physical Dimensions: 4.3 Inches x 4.3 Inches x 7.0 Inches High
Integrated Tubing Interface Port: 1/4-Inch Push-Fit Quick Connection Bulkhead
Primary Material Construction: Non-Toxic Acrylic Mineral Poly-Composite Frame
System Layout Safety Threshold: Reef Safe, Copper-Free, Solvent-Free Extrusion
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Unbox your IC-LCT-S container and rinse the internal chamber with fresh RO/DI water to clear out any packing static or transit dust. Do not clean using household abrasive chemical sprays.
- Pour your prepared liquid supplement (such as a 2-part Calcium mix, soda ash Alkalinity solution, or trace element blend) straight into the wide-mouth opening, filling up to the top neck line.
- Push the lid firmly down over the main container body to establish a snug, secure fit against atmospheric dust and evaporation.
- Take the 1/4-inch outer diameter input line running from your dosing pump and insert it straight down into the top push-fit bulkhead port. Push until you feel the inner lock teeth grab the tubing securely.
- Manually prime your dosing pump until the liquid climbs all the way up the internal straw and fills the flexible line with no remaining bubbles.
- Slide the compact container into its permanent space underneath your cabinet stand, keeping the lines clear of your sump's high-flow water splash zone.
Pro Tips:
- Label the Outside Front of Each Container Clearly with a Paint Pen or Tape. When you line up multiple identical 1.5L IceCap containers under your stand for a full 2-part or 3-part dosing method, the liquids inside will often look exactly the same (clear water-like solutions). Accidentally hooking up your Alkalinity line to your Calcium container will cause intense chemical precipitation that turns your container cloudy and swings your tank parameters rapidly. Always write or tape bright label tags onto the front faces before popping the lines into place.
- Keep the Top Lid Vapor Vent Pinhole Clear of Salt Creep or Crust. Every high-end dosing container features a microscopic breathing hole or loose fit tolerances on the lid rim to allow air to displace the liquid being sucked out by the pump. If you are storing concentrated solutions that easily crust over (like high-alkalinity soda ash), check the lid every few months to make sure dried salt crystals haven't completely clogged this air escape path. If the vent seals shut, your dosing pump will pull a hard vacuum inside the canister, causing the line to choke or the dosing pump rollers to jam under stress.
- Do Not Force-Twist or Leverage Your Tubing When Removing Lines. The built-in 1/4" quick-connect push bulkhead makes hooking up lines incredibly easy, but yank-testing it to pull lines out can crack the acrylic lid housing. To safely release your dosing line, press down evenly on the small plastic collar (the collet) surrounding the tube while pulling the flexible line upward simultaneously. This instantly relaxes the internal metal lock teeth, letting your tubing slide out with zero resistance.
