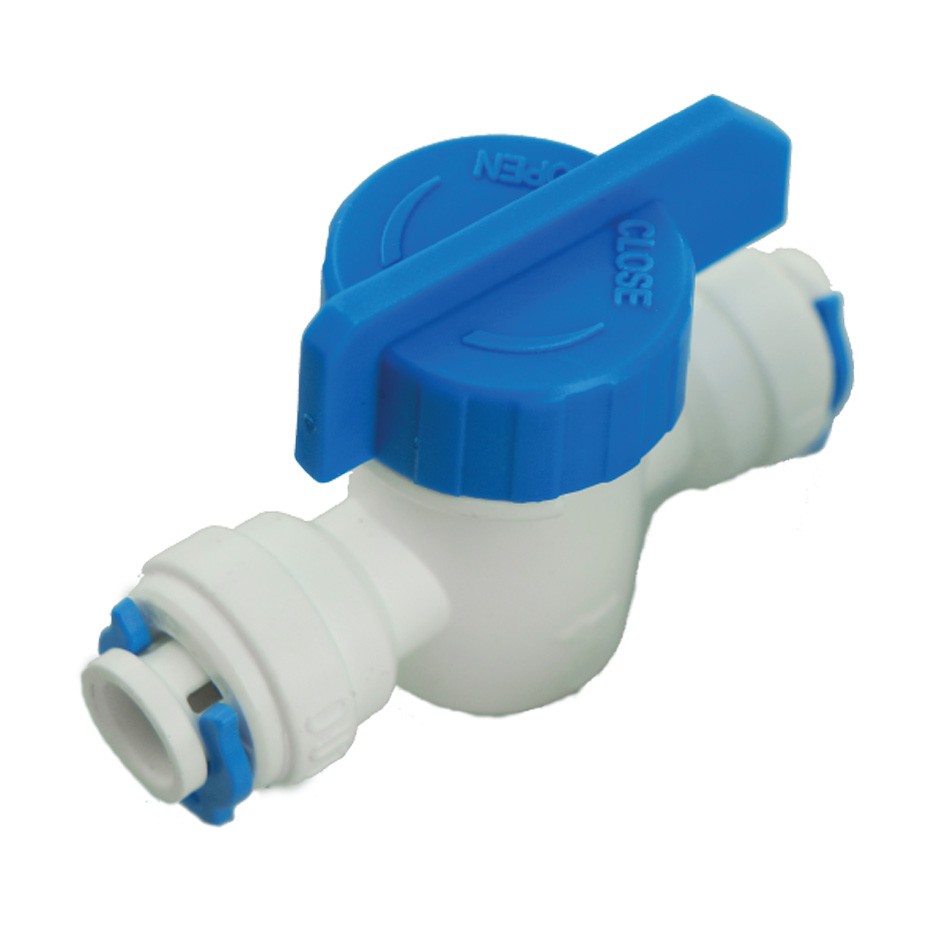

IceCap Reverse Osmosis 1/4in Ball Valve
SKU: IP-RI-QBV1544
- Direct OEM RO/DI Integration: Factory-original manual shut-off ball valve engineered specifically for IceCap 4-Stage, Smart RO/DI, and auxiliary filtration platforms.
- Quarter-Turn Flow Isolation: Smooth, low-effort lever allows instantaneous manual shut-off or opening of pressurized water lines with a simple 90-degree turn.
- Tool-Free 1/4" Push-Connect Ports: Integrated quick-connect collets securely grip standard 1/4-inch outer diameter (OD) polyethylene tubing without wrenches, clamps, or threading.
- High-Pressure Leak-Proof Seal: Precision-machined internal ball and dual elastomeric O-rings safely hold line pressures up to 125 PSI without dripping or weeping.
- Multi-Purpose System Versatility: Ideal for isolating pure water lines, configuring manual membrane flush bypass loops, taking water samples, or locking out reservoir storage tanks.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.

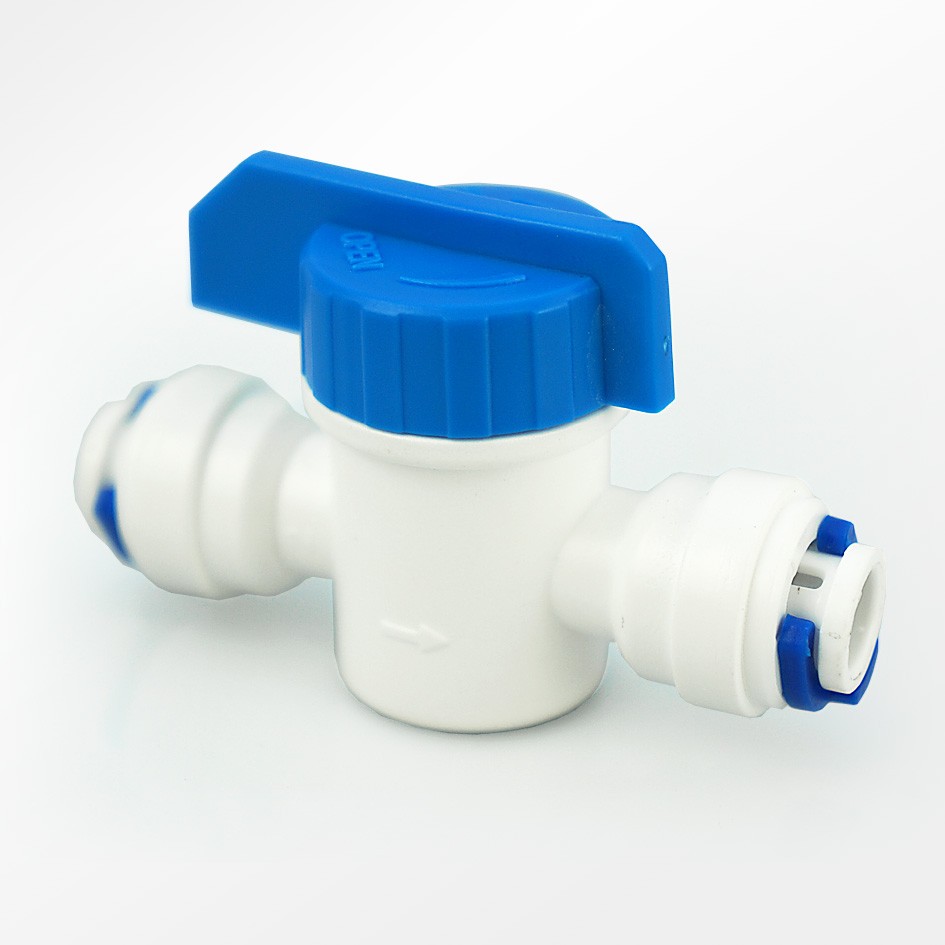

IceCap Reverse Osmosis 1/4-Inch Inline Ball Valve
Controlling water flow and isolating individual stages of an aquarium water purification system is essential for smooth maintenance and flood prevention. The IceCap Reverse Osmosis 1/4in Ball Valve (SKU: IC-RI-QBV1544 / IP-RI-QBV1544) is the official OEM inline shut-off valve engineered specifically for IceCap Reverse Osmosis and RO/DI Systems and universal 1/4-inch water purification lines.
RO/DI systems operate under continuous line pressures ranging from 40 to over 85 PSI. Directing this pressurized water requires valves that can withstand continuous hydraulic loads without binding, weeping, or leaking around the stem. The IC-RI-QBV1544 features an internal acetal ball core sealed within heavy-duty elastomeric seats, paired with built-in 1/4-inch push-fit quick-connect ports on both sides. Turning the ergonomic handle 90 degrees provides an instant, airtight and watertight cutoff. Whether plumbed into the pure product water line to isolate a mixing reservoir, positioned before a deionization canister for easy resin cartridge changes, or routed around a flow restrictor to serve as a manual membrane flush valve, it delivers reliable flow management.
Ideal Replacement & Upgrade Scenarios
If an existing plastic valve has stiffened, cracked around its collet collars, leaks past its stem seal under pressure, or if you are adding new sample ports, manual flush circuits, or reservoir shut-offs to your RO/DI setup, installing an authentic IC-RI-QBV1544 restores smooth, leak-free control.
(Note: Package includes (1) IceCap 1/4-Inch Quick-Connect Inline Ball Valve).
What’s Included:
(1) IceCap Reverse Osmosis 1/4-Inch Inline Ball Valve (IC-RI-QBV1544 / IP-RI-QBV1544)
Technical Specs:
SKU / Factory Part Identifier: IC-RI-QBV1544 (IP-RI-QBV1544)
Port Configuration: (2) 1/4" OD Push-Fit Quick-Connect Ports (Inlet / Outlet)
Body Material: Food-Grade Polyoxymethylene (POM / Acetal Copolymer)
Internal Seal Material: Nitrile (NBR) / EPDM O-Rings
Valve Operation: Quarter-Turn (90-Degree) Manual Lever
Maximum Operating Pressure: 125 PSI at 70°F (21°C)
Operating Temperature Range: 34°F – 140°F (1°C – 60°C)
Primary Compatibility: IceCap 4-Stage RO/DI Systems, IceCap Smart RO/DI System, Standard 1/4" OD Polyethylene / Polyurethane RO Tubing
Installation & Replacement Guidelines:
Shut off the cold-water feed supply to your RO/DI system and relieve line pressure by opening the product output line.
If replacing an existing damaged valve, depress the collet collars firmly toward the valve body on both ends and pull the 1/4-inch tubing straight out.
Inspect the ends of your 1/4-inch tubing. Ensure cuts are square and free of longitudinal scratches or burs (trim with a razor tube cutter if necessary).
Firmly push one tubing end into the inlet port of the new IC-RI-QBV1544 until you feel it pass the internal O-ring and hit the internal stop (approx. 5/8-inch deep).
Push the second tube section into the outlet port until fully seated.
Pull outward lightly on both tubes to ensure the internal locking teeth engage the tubing wall.
Reopen the cold-water feed, inspect the connections for drips, and turn the valve lever perpendicular to the body to confirm complete water shut-off.
Pro Tips:
- Always Cut Tubing Squarely with a Dedicated Cutter. When preparing 1/4-inch tubing for push-connect ball valves, never use household scissors, wire cutters, or utility knives held at an angle. Angled or flattened tube cuts fail to seat evenly against the internal O-ring, creating persistent micro-leaks under pressure. Always use a dedicated razor-style tubing cutter to ensure a flat, 90-degree square edge.
- Plumb as a Manual Membrane Flush Valve. You can easily create a manual membrane flush kit by plumbing the IC-RI-QBV1544 in parallel with your drain line's flow restrictor using two 1/4-inch tee fittings. Opening the ball valve bypasses the restrictor, allowing high-velocity tap water to surge across the membrane envelope for 2 to 3 minutes to rinse away accumulated mineral scale before closing the valve to resume normal water production.
