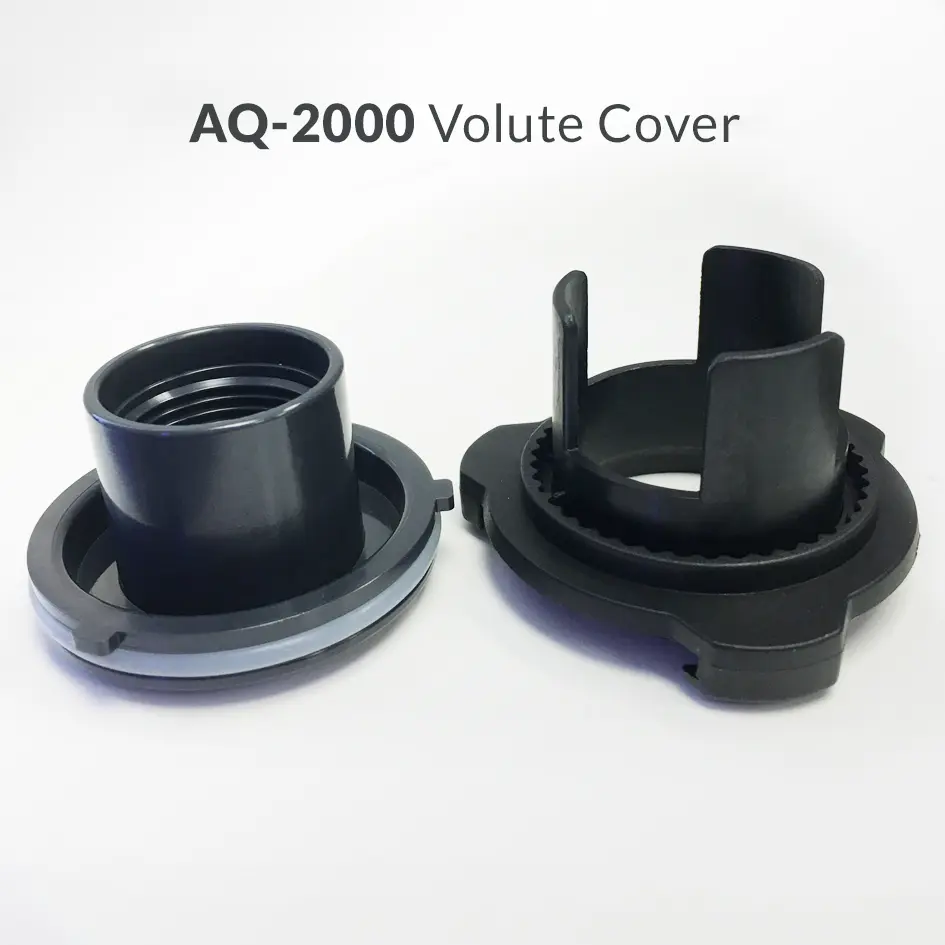

Octo Aquatrance 2000 Volute Cover
SKU: ROP-AQ-VOL-2000
- Genuine OEM Factory Part: Crafted directly by Reef Octopus as an exact drop-in structural match to swap out cracked, warped, or leaking pump faceplates.
- Heavy-Duty Polymer Engineering: Injection-molded from a rugged, marine-grade plastic matrix to resist splitting under continuous system vibrations.
- Hydrodynamically Tuned Intake Eyelet: Minimizes fluid friction during suction, enabling the pump to reach its full factory-rated baseline flow.
- Flanged Outlet Pressure Alignment: Forms a rigid, high-precision seal over the paddle wheel chamber, maximizing vertical head pressure.
- Quick Twist-Lock Alignment: Uses a low-friction locking track design that lets you remove the cover for quick cleaning without tools.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 2000 Replacement Utility Volute Cover (SKU: ROP-AQ-VOL-2000)
The Reef Octopus Aquatrance 2000 Replacement Utility Volute Cover (SKU: ROP-AQ-VOL-2000) is an authentic, structural OEM component distributed by CoralVue to preserve high-velocity water circulation inside marine and freshwater filtration setups. The volute cover—or front pump faceplate—acts as the primary containment seal for the internal spinning propeller assembly. Because return pumps and media reactor feeds operate under active head backpressure, maintaining a completely tight, seamless seal across the motor block housing is critical. Hairline fractures from dropping the pump during cleaning, or worn-down twist-lock tracks from heavy calcium scaling, will cause internal pressure loss, micro-leaks, and rattling—dropping your water column turnover rates significantly.
Molded from an inert, chemical-resistant marine polymer matrix, the ROP-AQ-VOL-2000 features precise internal tolerances custom-tailored to clear the curved utility paddle blades used by the Aquatrance 2000 (18W / 582 GPH) return pump. It acts as a direct factory replacement part to restore peak performance to your baseline water circulation lines or fluidized reactor feeds. Outfitted with precision alignment tabs that lock down firmly against the internal sealing ring, this part serves as a drop-in update to eliminate cavitation hums and keep your sump lines running safely.
Key Features
Restores Peak Head Pressure: Seals the internal water-pushing chamber tightly, enabling the utility block to efficiently clear vertical head limits.
Resolves Cavitation Priming Faults: Creates a perfect hydraulic seal that prevents micro-air gaps from throwing off internal suction lines during restarts.
Glueless Maintenance Access: Twist-lock alignment pins slip smoothly into the pump stator frame, letting you take the pump apart for quick cleaning without tools.
(Note: This retail part contains (1) individual Aquatrance 2000 utility return pump volute cover casing. Sliding front intake debris screens, utility paddle impellers, and internal ceramic shafts are sold under separate product categories).
Reef Octopus Aquatrance Utility Volute Mapping
| Volute Configuration Scale | Material SKU Identifier | Onboard Connection Geometry Profile | Primary Return Pump Engine Match |
|---|---|---|---|
| Aquatrance 1200 Volute | Contact for Availability | High-Pressure Closed Utility Casing | Aquatrance 1200 Utility Return (15W) |
| Aquatrance 2000 Volute | ROP-AQ-VOL-2000 | High-Pressure Closed Utility Casing | Aquatrance 2000 Utility Return (18W) |
| Aquatrance 3000 Volute | ROP-AQ-VOL-3000 | Commercial High-Volume Utility Casing | Aquatrance 3000 Utility Return (35W) |
What’s Included:
(1) Reef Octopus Aquatrance 2000 Injection-Molded Replacement Utility Volute Cover
Technical Specs:
Official Manufacturing Title: Reef Octopus Aquatrance 2000 Volute Cover
SKU / Factory Part Identifier: ROP-AQ-VOL-2000
Structural Housing Material Base: Saltwater-Safe Hardened High-Impact ABS Plastic
Locking Connection Interface: Direct Quarter-Turn Interlocking Tab Ring
Primary Target Engine Match: Specially Calibrated for the Aquatrance 2000 18W Standard Water Return Pump
Operational Fluid Pathway: Closed Fluid Circulation Pressure Chamber (Not an open suction screen)
Unplug your Reef Octopus Aquatrance return or utility pump from its electrical wall outlet. Remove the Aquatrance 2000 motor block from your sump basin and transfer it to a clean workspace.
If present, slide the open slotted plastic front debris screen grid off the mounting tracks of the volute face.
Twist your old, damaged volute cover counter-clockwise roughly 15 degrees to disengage the interlocking ears from the front of the pump block stator frame, and pull it away to expose the spinning paddle impeller.
Check the internal rubber sealing ring tucked inside the pump face rim. Clean the track with a soft towel to clear away any loose salt crust or organic slime. Pro Tip: If your previous volute cracked because of heavy calcium buildup, soak the main pump face in a warm vinegar bath before mounting the new part.
Align the locking tabs of your new ROP-AQ-VOL-2000 volute cover with the open slots on the front of the pump stator.
Press the volute cover forward firmly against the sealing ring, and twist it clockwise until you feel it click into place. Re-mount your front sliding intake screen, connect your plumbing lines, submerge the pump, and restore power.
Pro Tips:
- Do Not Confuse This Product with the Skimmer-Specific Aquatrance 2000S Volute. When overhauling your filtration gear, be careful not to mistake this component for a skimmer pump faceplate. The Aquatrance 2000S skimmer pump uses a specialized volute casing featuring custom-molded intake eyelets and side nipples built to hold venturi air lines. This Aquatrance 2000 Volute Cover features a completely solid, high-pressure closed housing optimized exclusively to channel clean, high-volume liquid water streams through a return line. Always double-check your pump's exact model stamp to guarantee you give your engine block the right replacement shroud.
- Apply a Thin Layer of Reef-Safe Silicone Grease to the O-Ring for a Perfect Seal. When mounting your new ROP-AQ-VOL-2000 cover onto an older pump block, take a moment to pull out the large rubber sealing O-ring and wipe it down with a tiny dab of reef-safe silicone grease. Over years of continuous submersion, rubber seals can slowly dry out and become brittle. Lightly lubricating the ring helps the new volute tabs slide into place smoothly without binding, preventing internal pressure drops or rattling.
- Never Force the Twist-Lock Rings If Calcium Buildup Blocks the Path. If you are taking your pump apart for routine maintenance and find that the volute cover is frozen shut or won't twist into place, stop and do not force the plastic tabs. Forcing a stuck volute will easily snap the locking ears off the plate or tear the tabs on the expensive motor block. Drop the entire pump block into a warm bath of water mixed with citric acid or white vinegar for 30 minutes. The acid safely dissolves the hard calcium scale, letting the parts slide apart and lock back together easily.
