32mm Metric Check Valve
SKU: PVC-CHKVLV-32
- Backflow Protection: Prevents water from siphoning back into the sump during power outages, protecting against floods.
- Metric Precision: Sized specifically for 32mm metric PVC pipe (approx. 1.25" OD), the standard for Reef Octopus return assemblies.
- High-Flow Design: Engineered to minimize head pressure loss, ensuring your return pump operates at maximum efficiency.
- Saltwater Tough: Constructed from industrial-grade grey PVC with high-performance seals, 100% safe for marine environments.
- Reliable One-Way Flow: Features a precision-weighted or spring-assisted internal mechanism for a secure seal even at low pressure.
- Ideal For: 32mm return lines; large-scale reactor feeds; protecting secondary equipment from back-pressure.

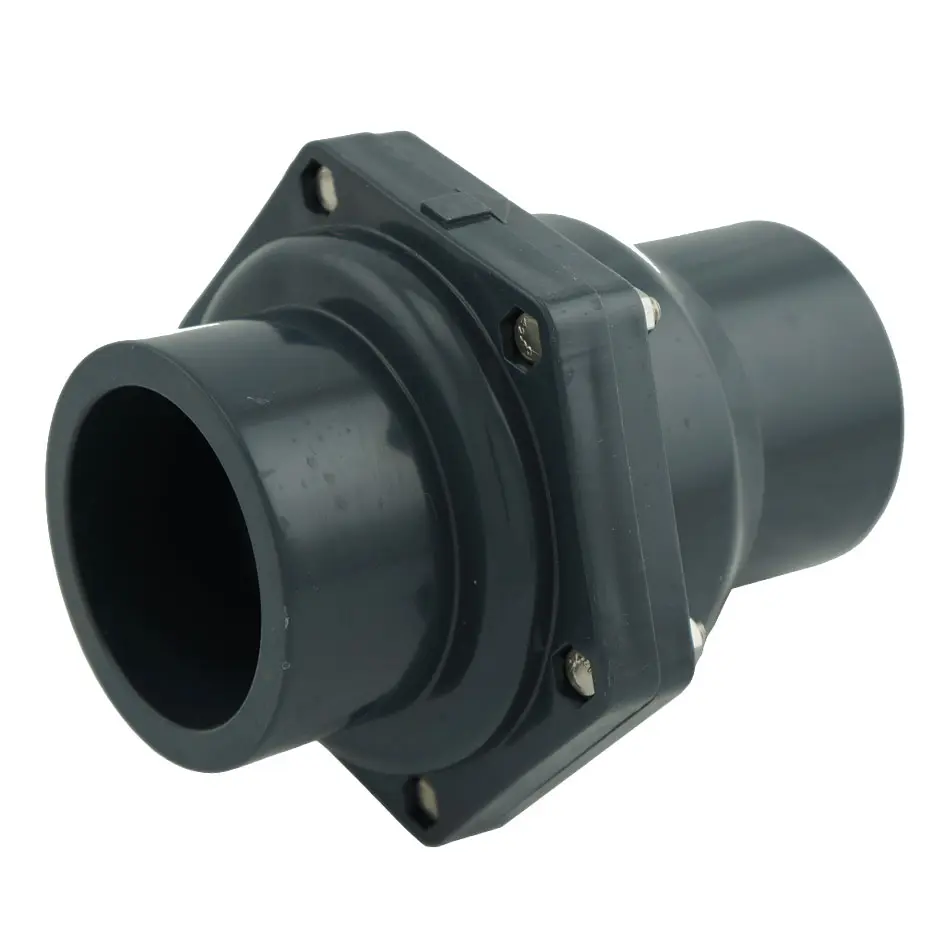

32mm Metric Check Valve
The 32mm Metric Check Valve (Non-Return Valve) is a professional-grade safety component designed for high-performance aquarium and aquaculture systems. Precision-sized for 32mm Metric PVC pipe, this valve is the industry standard for the return plumbing of many Reef Octopus protein skimmers and professional European-spec filtration systems.
In the event of a power outage or pump failure, the 32mm check valve instantly closes, stopping water from siphoning back through the return line into your sump. This critical fail-safe prevents potential overflows and keeps your plumbing lines primed, allowing for an immediate and quiet restart of your life support systems once power is restored. Crafted from industrial-grade grey UPVC, it offers significantly higher durability and a more professional "factory" aesthetic than standard residential plumbing parts.
Key Features
True Metric Calibration: Fits 32mm OD metric pipe—essential for maintaining factory Reef Octopus and European aquarium gear.
Low Opening Pressure: Optimized internal geometry ensures the valve opens with minimal force, maximizing your pump's throughput.
Heavy-Duty Construction: PN16/16-bar pressure rating ensures reliability even in high-pressure commercial pump applications.
Corrosion Resistant: 100% saltwater safe materials that will not rust, degrade, or leach harmful chemicals into your reef.
Socket-Style Connection: Deep slip-fit sockets provide a massive surface area for a permanent, high-strength solvent weld.
Ideal For
Return Pump Outputs: The primary defense against back-siphoning for mid-to-large sized aquariums.
Commercial Manifolds: Protecting independent lines in complex, multi-pump filtration layouts.
Reactor Safety: Preventing backflow from calcium or carbon reactors during pump maintenance.
Images shown are representative of the product family. Materials, sizes, and configurations may vary.
What’s Included:
(1) 32mm Metric PVC Check Valve

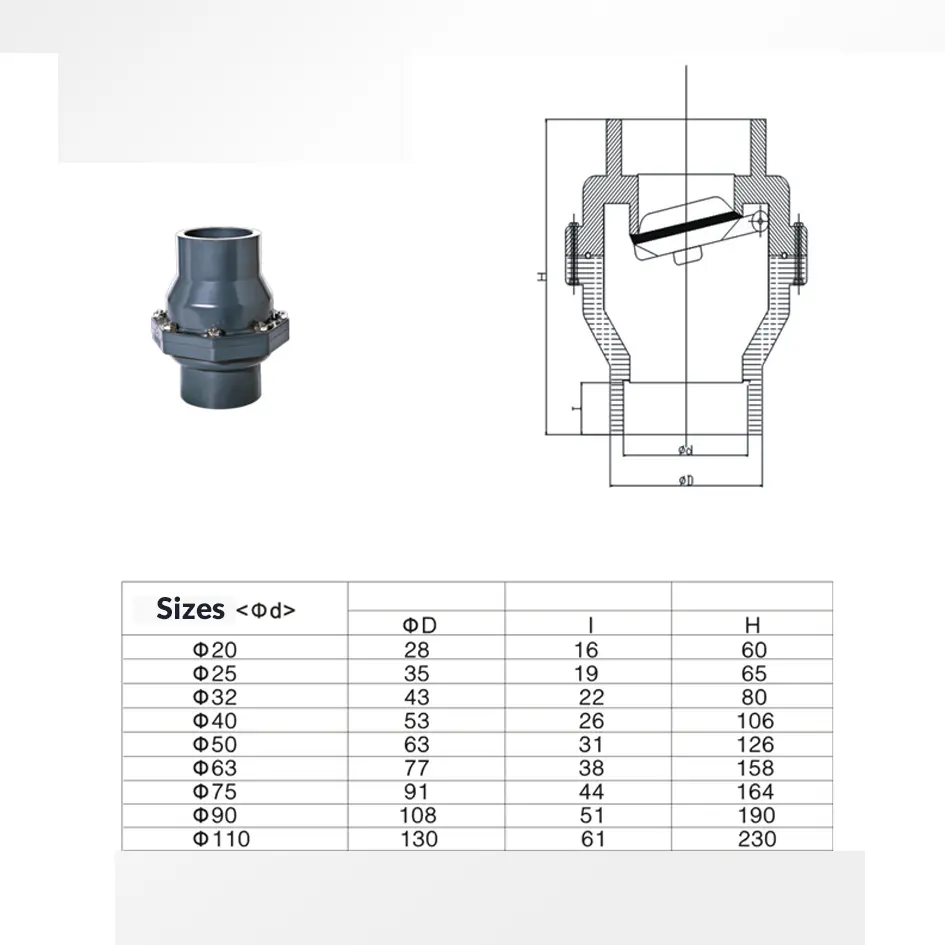

Specifications:
Size: 32mm
Connection Type: Slip x Slip (Socket)
Material: Industrial Grade Grey UPVC
Max Pressure: 16 bar / 232 psi
Minimum Operating Temp: 0°C (32°F)
Maximum Operating Temp: 60°C (140°F)
Compatibility: 32mm Metric Pipe ONLY
- Check the flow direction arrow molded into the side of the valve; ensure it points toward the aquarium.
- Cut the 32mm metric pipe square and remove all burrs with a deburring tool to protect internal seals.
- Perform a dry-fit of the valve in your plumbing run to ensure it is accessible for future maintenance.
- Apply PVC primer and solvent cement to both the pipe end and the valve socket.
- Insert the pipe firmly into the socket and hold for 30 seconds.
Pro Tips:
- For the most reliable long-term seal, install the valve in a vertical position (upward flow), as gravity assists the internal sealing mechanism.
- Confirm Your Metric Size. A 32mm metric valve will not fit 1-inch or 1.25-inch USA Standard Schedule 40/80 pipe. 32mm is approximately 1.26 inches, whereas US 1.25" pipe has a 1.66-inch OD. Always measure your pipe with a caliper to ensure you are using metric components.
- Maintenance is Vital. While check valves are excellent safety tools, they are not infallible. Saltwater environments can lead to calcium buildup or small snails becoming trapped, which may prevent a perfect seal. Periodically inspect and clean the valve to ensure it functions correctly during a power outage.
- Aesthetic Advantage. Use clear PVC primer instead of the traditional purple to keep your grey 32mm fittings looking clean and professional. This matches the factory aesthetic of Reef Octopus equipment for a high-end "industrial" look.For the most reliable long-term seal, install the valve in a vertical position (upward flow), as gravity assists the internal sealing mechanism.
