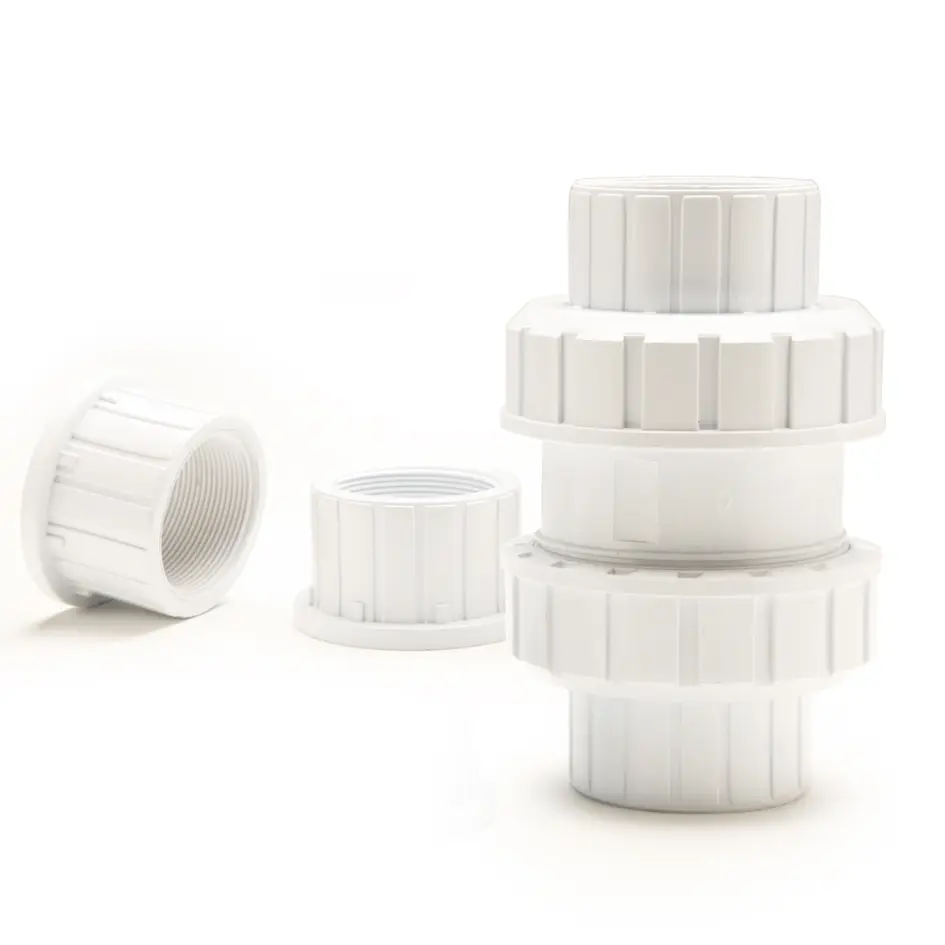

1-1/2in White True Union Ball Check Valve
SKU: RF-8015WST
100% Metal-Free Internal Assembly: Utilizes a custom-weighted, free-floating plastic ball mechanism that relies entirely on reverse fluid pressure to seal, ensuring zero rust or heavy metal leaching in sensitive coral reefs.
Dual True Union Disconnect Casing: Equipped with threaded outer collar nuts on both ends, allowing the main valve core to be extracted instantly for cleaning without disturbing adjacent pipe networks.
High-Flow Schedule 40 Wall Design: Modeled with an enlarged internal chamber to minimize dynamic head loss and micro-turbulence while handling massive return loop turnover.
Reversible Vertical Configuration: Operates with peak sealing efficiency when installed in a vertical orientation, letting gravity pull the internal ball flush against the lower seat during power cuts.
Aquarium & Chemical Grade Safe: Molded from premium, non-leaching white PVC paired with robust chemical-resistant seals to withstand high-salinity marine environments.
CoralVue White True Union Ball Check Valve 1-1/2 Inch Slip x Slip (SKU: RF-8015WST)
The CoralVue White True Union Ball Check Valve 1-1/2 Inch Slip x Slip (SKU: RF-8015WST) is an essential mechanical safety component deployed by professional aquatic engineers and reef tank curators to eliminate backflow hazards and protect filtration sumps from catastrophic overflowing. When an aquarium's primary return pump shuts down—whether due to a routine feeding pause, system maintenance, or a localized power outage—the water suspended in the display tank's return lines immediately reverses direction, siphoning back down into the sump basin below. Without a dependable one-way safety barrier in place, this volume can quickly breach the sump's physical capacity limit, resulting in expensive water damage. The RF-8015WST halts this reverse flow mechanically and instantly, acting as an automated gatekeeper for your system's structural footprint.
Unlike standard hardware-store check valves that rely on internal stainless steel tension springs, the CoralVue RF-8015WST is constructed with a 100% metal-free interior architecture. Metal springs corrode rapidly when exposed to aggressive marine environments, leading to mechanical failure and leaching toxic copper or iron ions into the water column. Instead, this valve utilizes a free-floating, precision-weighted ball mechanism. When fluid flows forward, the ball is pushed up into an internal bypass channel to keep flow clear; the moment backflow begins, gravity and water pressure drive the ball down onto a soft, chemical-resistant seat, sealing the line completely. Backed by a True Union profile, the entire center capsule can be unthreaded effortlessly using standard union collar nuts. This design allows you to clean out organic film or trapped debris without having to saw through your main plumbing header.
Key Features
Protects Sensitive System Volumetrics: Stops reverse siphons immediately to keep your sump's operating lines safe and stable during pump shutdowns.
Easy Mechanical Access: True union ends let you remove the main valve housing easily for rapid maintenance, ensuring your safety check lines remain clear over time.
Reef-Safe Structural Materials: Built with unplasticized PVC housing and chemically inert gaskets, protecting sensitive corals and invertebrates from heavy metal risks.
(Note: This retail SKU contains (1) fully assembled 1-1/2" White True Union Ball Check Valve capsule with (2) standard Schedule 40 socket slip end tailpieces and (2) collar nuts. Rigid plumbing pipes and solvent welding cements are sold under separate product categories).
What’s Included:
(1) CoralVue RF-8015WST 1-1/2" White True Union Ball Check Valve Assembly
(2) 1-1/2" Socket Slip Union Tailpieces with Seating O-Rings
Technical Specs:
Official Manufacturing Title: 1-1/2" True Union Ball Check Valve (White PVC)
SKU / Factory Part Identifier: RF-8015WST
Inlet/Outlet Port Connection Type: 1-1/2" Socket Slip (Hub ports designed to receive standard 1.5" PVC pipe)
Internal Valve Sealing Mechanism: Free-Floating, Precision-Weighted Ball Drop
Internal Metal Components: 0% (Completely Metal-Free and Reef-Safe Structural Design)
Maximum Safe Working Pressure: 150 PSI at 73 Degrees Fahrenheit
Minimum Sealing Backpressure: Requires a minimum of 2-3 feet of water column head pressure to drop and lock the seat fully
Housing Material Matrix: High-Grade Unplasticized Polyvinyl Chloride (White PVC)
Primary Structural Color Finish: Clean Bright White
Official Compliance Standards: ASTM D1784, ASTM D2466, NSF Certified Components
While most of our equipment carries a one-year manufacturer's warranty, consumable products like fish and coral foods are not covered under traditional warranty terms due to their perishable nature and varied storage conditions. However, we fully stand behind the quality of every product we sell. If you experience any issues with your food purchase shortly after receiving it, such as concerns about freshness, packaging integrity, or product quality, please contact us at [email protected]. We're committed to making it right and will work with you to resolve any problems quickly and fairly.
- Examine the outer shell of the valve body to locate the directional flow arrow molded into the plastic. The valve must be oriented so this arrow points in the direction of normal pump flow.
- Position the check valve on a vertical run of pipe directly above your return pump if possible. Vertical mounting allows gravity to assist the internal ball, ensuring a perfect seal during shutdowns.
- Unscrew both large union collar nuts and remove the 1-1/2" slip tailpieces from the valve body before gluing. This prevents solvent cement from accidentally bonding internal parts or gaskets.
- Clean, prime, and glue the tailpieces onto your 1-1/2" PVC pipe runs using standard PVC primer and solvent cement. Allow the joints to dry for 15 minutes.
- Check that the internal rubber seating gaskets are nested flush in their face grooves, insert the central valve body between the tailpieces (checking the flow arrow direction), and hand-tighten the union nuts.
- Open your inline plumbing valves and activate the return pump to verify forward flow. Turn off the pump to test the valve, inspecting the body joints and the internal seat to confirm a drop seal.
- Install Your Ball Check Valve Vertically to Capitalize on Gravity.
CRITICAL MOUNTING ORIENTATION RULE: While ball check valves can technically function on a horizontal line if there is enough backpressure, always mount the RF-8015WST on a vertical section of pipe with the flow arrow pointing upward. In a vertical layout, gravity pulls the internal ball straight down into the center of the sealing seat the instant forward pump pressure stops. This layout ensures a rapid seal with minimal back-siphon lag, preventing backflow before it can gain momentum.
- Never rely on a check valve as your only protection against sump overflows. Check valves are excellent safety backups, but they should never replace proper air-break siphon holes or physical emergency volume margins inside your sump. Small snails, pieces of loose macroalgae, or calcified tube worms can travel up return lines and lodge inside the valve seat, occasionally keeping the ball from closing completely. Always calculate your sump's safety volume to handle the water down to your return nozzles, or drill a small siphon-break hole just below the display tank's waterline.
- Clean Your True Union Valve Core Every Six Months. To ensure the RF-8015WST remains operational when a power outage strikes, make it a habit to unthread the union nuts and inspect the valve body every six months. Over time, a layer of slick bacterial biofilm or calcium carbonate scale can coat the internal chamber walls, which can slow down or jam the ball mechanism. Swabbing the internal track with a soft towel soaked in warm white vinegar clears away this buildup, keeping the ball moving freely for reliable backflow protection.
