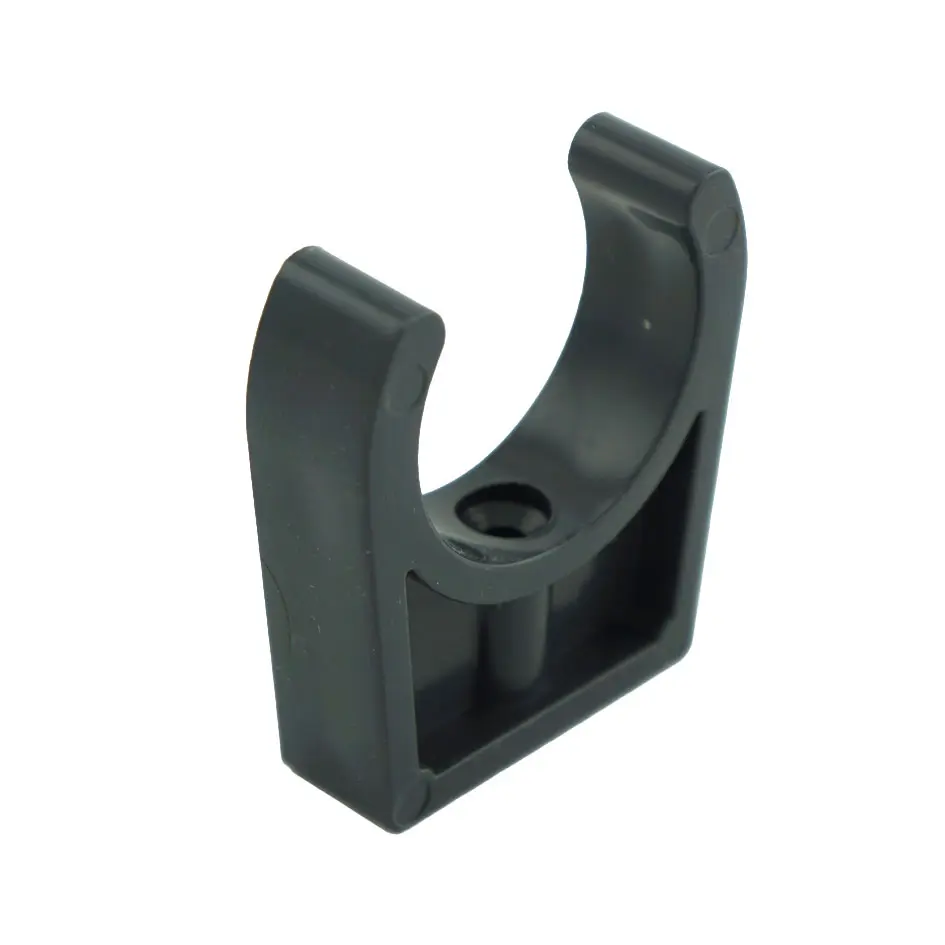

110mm Metric Pipe Carrier
SKU: PVC-PCAR-110
- Structural Support: Provides essential stabilization for heavy 110mm metric piping, preventing sagging and joint stress.
- Metric Precision: Specifically sized to cradle 110mm metric PVC pipe (approx. 4.33" OD), the industrial standard for large-scale Reef Octopus life support.
- Secure Locking: Features a snap-fit or bolt-down locking mechanism to ensure pipes remain seated even during high-pressure water hammer.
- Corrosion Proof: Constructed from high-strength, saltwater-safe technical polymers that will not rust in humid filtration rooms.
- Vibration Dampening: Helps isolate pump vibrations from the wall or filtration rack, leading to a quieter overall system operation.
- Ideal For: Securing main discharge lines; mounting commercial skimmer recirculating loops; organized manifold racks.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
110mm Metric Pipe Carrier
The 110mm Metric Pipe Carrier is a critical structural component designed for the organized and secure installation of large-diameter plumbing in professional aquarium exhibits and industrial aquaculture facilities. Precision-engineered to hold 110mm Metric PVC pipe, this carrier acts as a heavy-duty mounting bracket that anchors your primary life support lines to walls, filtration racks, or ceiling supports.
In large-scale life support engineering, 110mm pipes carry immense weight when filled with water. Without proper support, this weight can cause pipes to sag, putting lethal stress on solvent joints and bulkhead connections. This carrier provides a rigid, professional mounting point that ensures your plumbing remains perfectly aligned and stationary. Constructed from industrial-grade, non-corrosive materials, it is specifically designed to survive the harsh, humid, and salt-heavy environments of a commercial pump room.
Key Features
True Metric Calibration: Custom-contoured to fit the 110mm OD metric pipe used in Reef Octopus commercial-spec filtration.
Professional Organization: Allows for clean, parallel plumbing runs, making it easier to identify and service lines in complex systems.
Heavy-Duty Load Capacity: Designed to support the weight of 110mm water-filled pipes over long horizontal or vertical spans.
Saltwater Safe: 100% non-metallic construction; will not rust, pit, or degrade when exposed to saltwater spray or high humidity.
Adjustable Spacing: The bracket design allows for a slight gap between the pipe and the mounting surface, facilitating easier cleaning and inspection.
Ideal For
Main Exhibit Headers: Securing the primary 110mm return or drain lines to the facility walls.
Commercial Skimmer Support: Anchoring the massive recirculating plumbing on Reef Octopus commercial skimmers to prevent vibration wear.
Industrial Manifolds: Building modular, organized plumbing racks for multi-tank aquaculture systems.

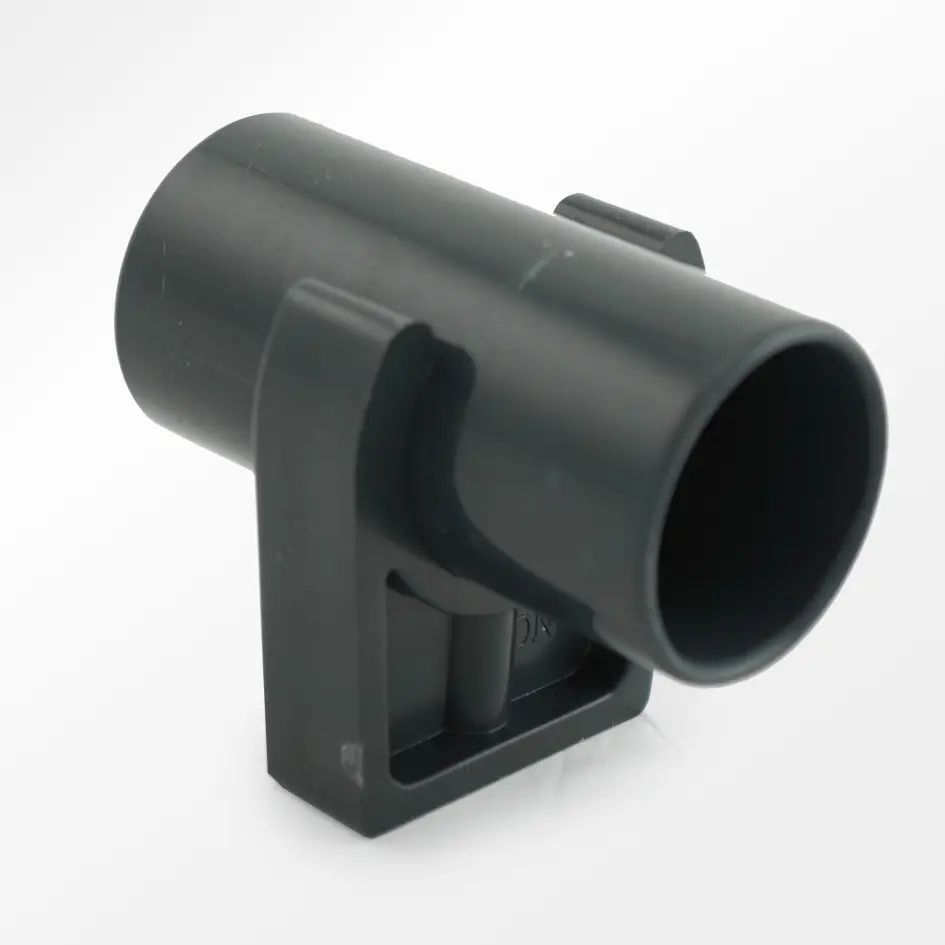

Images shown are representative of the product family. Materials, sizes, and configurations may vary.
What’s Included:
(1) 110mm Metric Pipe Carrier (Bracket)

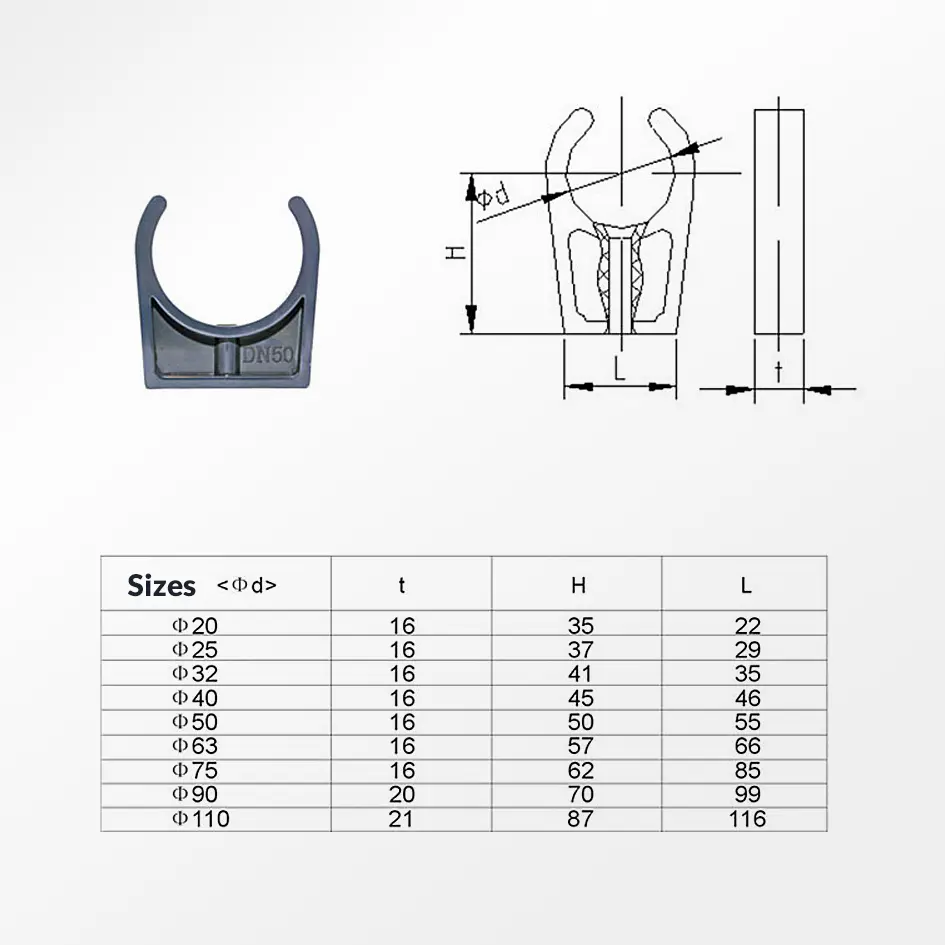

Specifications:
Size: 110mm
Mounting Type: Wall / Rack Mount
Material: High-Strength Industrial Polymer
Compatibility: 110mm Metric Pipe ONLY
- Determine the necessary spacing for your carriers. For 110mm pipe, we recommend a carrier every 3–4 feet on horizontal runs to prevent sagging.
- Mark the mounting holes on your wall or rack, ensuring they are perfectly level.
- Secure the carrier to the surface using appropriate stainless steel hardware (not included).
- Snap or slide the 110mm metric pipe into the cradle of the carrier.
- If equipped with a locking strap or bolt, secure it over the pipe to prevent movement.
- Ensure the pipe is supported at every change of direction (elbows) and near heavy valves or equipment.
Pro Tips:
- Metric vs. Standard 4-Inch. A 110mm pipe carrier is designed specifically for 110mm OD metric pipe (approx. 4.33 inches). It will not fit standard US 4-inch pipe, which has a 4.5-inch OD. Always confirm your pipe diameter before mounting your brackets.
- Vibration Isolation. In systems with high-pressure commercial pumps, minor vibrations can transfer into the building structure. For maximum noise reduction, you can place a thin strip of EPDM rubber or neoprene between the pipe and the carrier to act as a vibration isolator.
- Stainless Hardware is Key. While the carrier itself is non-corrosive, always use Grade 316 Stainless Steel screws or bolts to mount the carrier to your wall or rack. Standard galvanized or zinc-plated hardware will rust quickly in a marine filtration environment.
