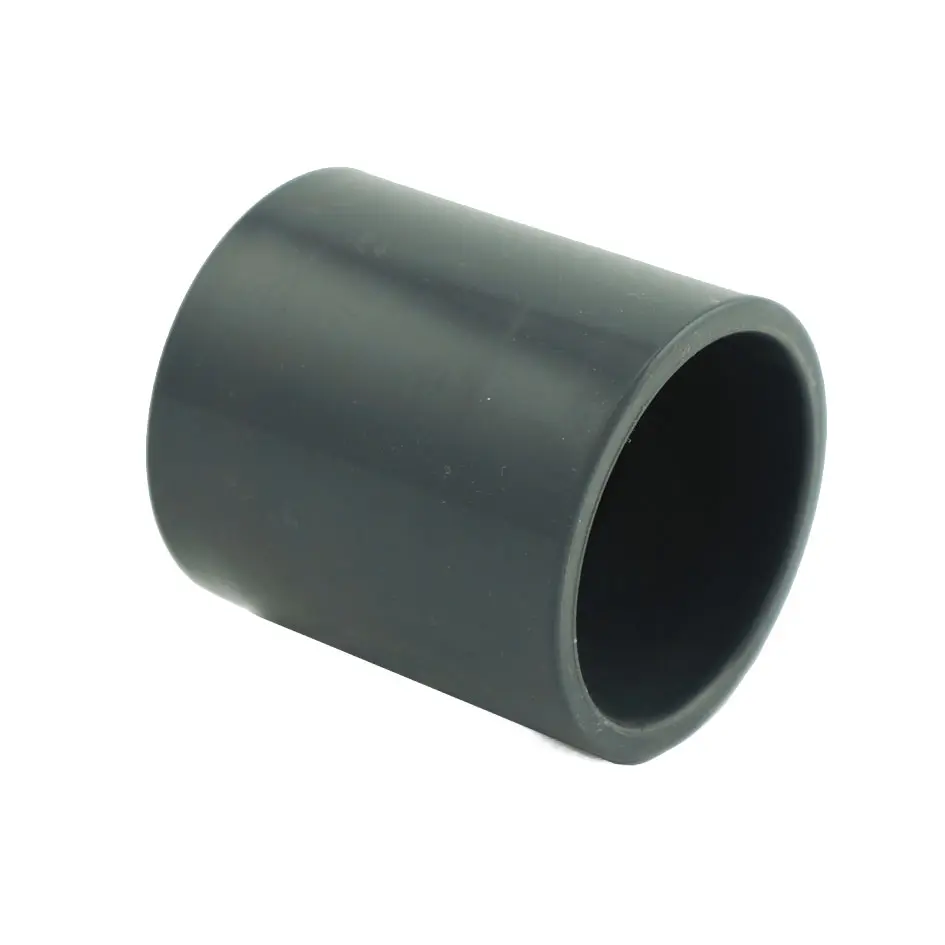

90mm Metric Standard Coupling
SKU: PVC-CPLG-90
- Industrial Grade Connection: Designed to join two lengths of massive 90mm metric pipe with a high-strength, leak-proof solvent weld.
- Metric Precision: Sized specifically for 90mm metric pipe (approx. 3.54" OD), the standard for commercial Reef Octopus discharge and filtration headers.
- Internal Alignment Stop: Features a molded internal bridge to ensure both pipe ends seat at equal depths for maximum structural integrity.
- Commercial Build: Constructed from thick-walled, high-impact grey UPVC for superior pressure and chemical resistance in professional pump rooms.
- Saltwater Proof: 100% non-corrosive and chemically inert; safe for permanent use in high-flow marine exhibits and aquaculture.
- Ideal For: Extending 90mm manifold headers; joining primary return lines; repairing large-diameter commercial plumbing.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
90mm Metric Standard Coupling
The 90mm Metric Standard Coupling is a heavy-duty straight joiner engineered for the permanent connection of large-diameter plumbing in massive aquarium systems, public exhibits, and industrial aquaculture facilities. Precision-molded for 90mm Metric PVC pipe, this fitting is a critical component for extending primary life support lines and high-volume discharge assemblies on commercial Reef Octopus filtration equipment.
In large-scale life support engineering, joints must withstand immense hydraulic pressure and the physical weight of 90mm water-filled pipes. This coupling features exceptionally deep sockets that provide the vast surface area required for a secure solvent weld, resulting in a bond that is effectively as strong as the pipe itself. Manufactured from industrial-grade grey UPVC, it matches the professional "factory" aesthetic of high-end European filtration hardware. The internal center stop ensures perfect alignment during assembly, preventing internal gaps that could cause turbulence or restrict flow in high-performance systems.
Key Features
True Metric Calibration: Fits 90mm OD metric pipe—essential for maintaining factory Reef Octopus and commercial-spec hardware.
Hydraulic Efficiency: The internal bore matches the pipe interior, ensuring zero flow restriction and maintaining optimal water velocity.
Marine Grade Durability: 100% non-metallic; will not rust, pit, or leach chemicals into sensitive aquatic exhibits.
High-Impact Build: Engineered to withstand the vibrations and hydraulic stresses typical of high-performance commercial pumps.
Massive Bonding Surface: Deep socket design provides the necessary contact area for a permanent chemical weld on large-diameter pipes.
Ideal For
Commercial Manifolds: Joining 90mm pipe sections to build robust distribution blocks for multi-tank systems.
Primary Life Support: Extending or repairing 90mm primary return and drain lines.
Filtration Upgrades: Splicing new sections into existing 90mm metric plumbing runs during system expansion.
Images shown are representative of the product family. Materials, sizes, and configurations may vary.
What’s Included:
(1) 90mm Metric Standard Coupling

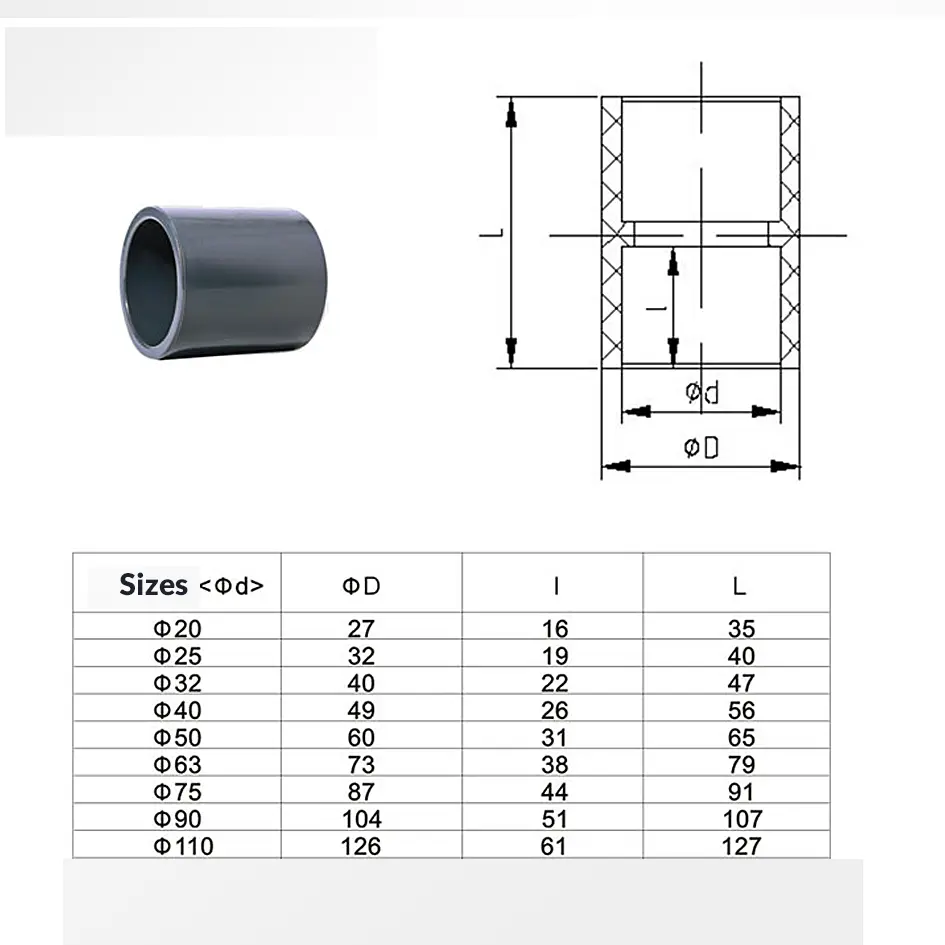

Specifications:
Size: 90mm
Connection Type: Slip x Slip (Socket)
Material: Industrial Grade Grey UPVC
Compatibility: 90mm Metric Pipe ONLY
- Ensure both 90mm metric pipe ends are cut perfectly square and thoroughly deburred.
- Clean the pipe ends and the internal sockets of the coupling with a dedicated PVC cleaner.
- Apply a generous layer of PVC primer to both the pipe ends and the inside of the coupling to soften the UPVC.
- Apply a liberal coat of heavy-duty solvent cement (specifically rated for large-diameter pipe) to both components.
- Push the pipes into the coupling until they hit the internal center stop, giving a quarter-turn to ensure even glue distribution.
- Hold firmly for 60 seconds. Allow at least 8–12 hours to cure before introducing high-pressure water.
Pro Tips:
- Metric vs. Standard. A 90mm metric coupling will not fit standard US 3-inch or 4-inch pipe. 90mm is approximately 3.54 inches, while US 3-inch pipe is 3.5 inches OD and US 4-inch pipe is 4.5 inches OD. Always verify your pipe size with a caliper before beginning a permanent solvent weld.
- Large Diameter Priming. On 90mm pipe, the surface area for the bond is massive. Proper priming is non-negotiable to ensure the solvent cement creates a true chemical weld. Use clear primer to maintain the clean, industrial aesthetic of your grey UPVC fittings.
- The Union Strategy. If you are repairing a 90mm line that is rigid and cannot be pulled apart, a standard coupling will be nearly impossible to slide on. In these scenarios, use a 90mm Metric Union to allow for a "drop-in" repair that can be hand-tightened.
