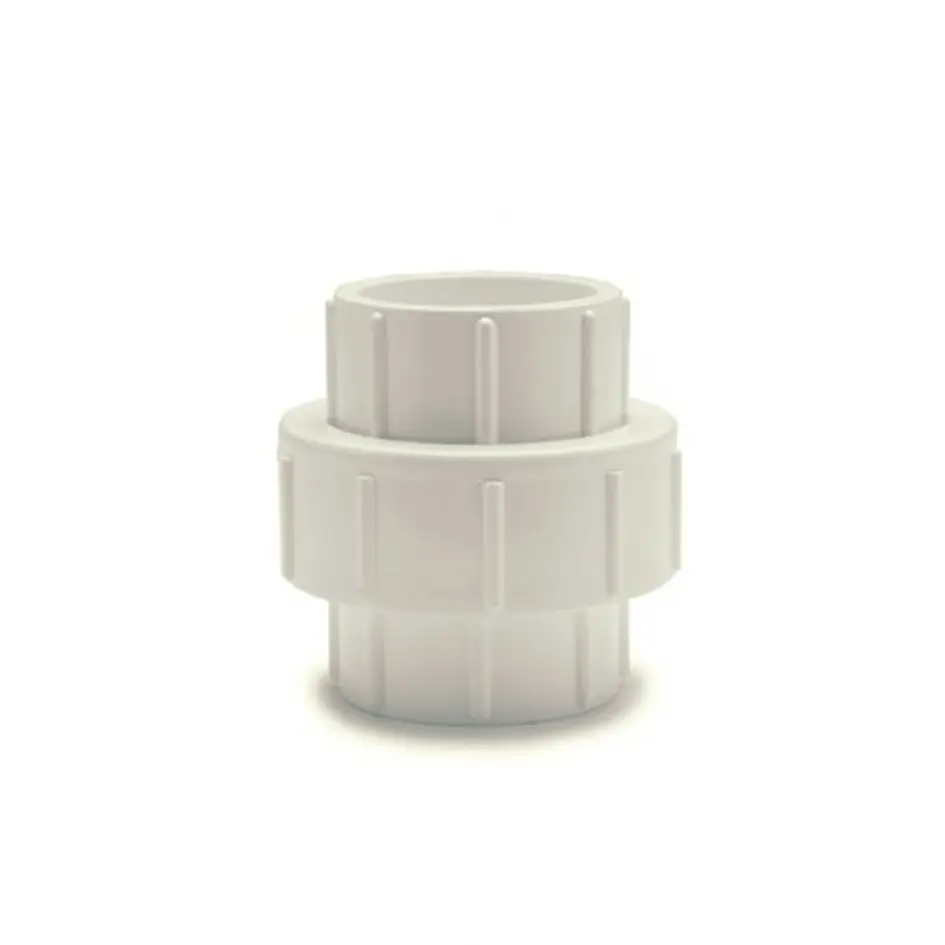

3/4in White Threaded PVC Union
SKU: RF-1207WT
- Standard Schedule 40 Structural Wall: Injection-molded from highly durable, impact-resistant white polyvinyl chloride (PVC) designed for reliable residential and aquatic pressure applications.
- Dual Internal FIP Threading: Precision-cut 3/4" Female National Pipe Thread (NPT) sockets smoothly receive male plumbing adapters for a completely mechanical, tool-free takeaway.
- Leak-Proof Compression Gasket: Equipped with a thick, self-seating internal rubber O-ring that seals tightly under collar pressure to isolate leaking lines and salt creep.
- Three-Piece Service Disconnect Layout: Disassembles cleanly into two independent end-connectors and a central collar locking nut to service pumps or filters easily without sawing lines.
- 100% Aquarium and Reef Safe: Engineered from high-purity, non-toxic polymers that will not leach chemicals or alter sensitive aquatic water parameters.
CoralVue Standard Schedule 40 3/4 Inch Threaded White PVC Union (SKU: RF-1207WT)
The CoralVue Standard Schedule 40 3/4 Inch Threaded White PVC Union (SKU: RF-1207WT) is a foundational mechanical decoupling fitting engineered by top global fluid handling manufacturers to establish quick-release service segments, safeguard plumbing versatility, and protect core equipment loops inside multi-tank marine display aquariums, specialized filtration sumps, and home automation systems. Hard-plumbing standard-diameter return circuits natively using basic socket couplings means that when a secondary return pump fails, or an inline hardware piece needs detailing, the entire pipe run must be physically sawed apart with a pipe cutter. This dynamic three-piece compression union resolves this bottleneck entirely by segmenting standard-format plumbing lines into independent, decoupled service arcs.
Calibrated to withstand residential domestic hydraulic pressures, this fitting features internal 3/4" Female Iron Pipe (FIP / FNPT) threads on both matching terminal collars. The clean white polymer construction indicates a standard Schedule 40 wall thickness profile, blending in perfectly with residential irrigation lines, water treatment setups, and standard domestic plumbing schemes. Nestled safely inside the union's central interlocking track sits a heavy-wall compression rubber O-ring. When the outer threaded locking collar nut is tightened down, it creates an absolute, watertight seal that handles up to 150 PSI of persistent fluid pressure while dampening harmonic motor hums and equipment-induced tremors beneath your system.
Key Features
Eliminates High Re-Plumbing Costs: Allows lightning-fast removal of secondary utility pumps, multi-stage filtration headers, and localized reactors without destroying adjacent lines.
Fixes Post-Glue Misalignments: The rotational swivel action built natively into a loose union body allows you to perfectly adjust downstream piping angles even after nearby lines are locked in.
Resists Aggressive Corrosive Additives: Impervious to continuous salt saturation, liquid chemical dosing paths, and regular equipment cleaning flushes.
(Note: This retail SKU contains (1) assembled 3/4" Schedule 40 threaded union assembly, which includes (2) FIP threaded end connectors, (1) outer collar locking nut, and (1) pre-installed rubber O-ring seal. External male adapters, Teflon thread tapes, and structural PVC pipes are sold under separate product categories).
What’s Included:
(1) Complete CoralVue 3/4" Schedule 40 Threaded White PVC Union Assembly
(1) Factory-Seated Leak-Proof Rubber O-Ring
Technical Specs:
Official Manufacturing Title: 3/4" Schedule 40 PVC Threaded Union (FIP x FIP)
SKU / Factory Part Identifier: RF-1207WT
Inlet Port Connection Profile: 3/4" Female Iron Pipe Thread (FIP / FNPT NPT-Spec)
Outlet Port Connection Profile: 3/4" Female Iron Pipe Thread (FIP / FNPT NPT-Spec)
Material Wall Classification: Standard Schedule 40 (Standard-Wall Configuration)
Internal Gasket Compound: Commercial-Grade Synthetic Rubber O-Ring
Maximum Safe System Pressure: 150 PSI at 73 Degrees Fahrenheit
Maximum System Thermal Tolerance: 140 Degrees Fahrenheit (60°C Max Circuit Cap)
Official Compliance Standards: ASTM F1498, ANSI B1.20.1, NSF/ANSI 14 & 61 Certified Lead-Free
Primary Shell Color Finish: Clean Bright White
While most of our equipment carries a one-year manufacturer's warranty, consumable products like fish and coral foods are not covered under traditional warranty terms due to their perishable nature and varied storage conditions. However, we fully stand behind the quality of every product we sell. If you experience any issues with your food purchase shortly after receiving it, such as concerns about freshness, packaging integrity, or product quality, please contact us at [email protected]. We're committed to making it right and will work with you to resolve any problems quickly and fairly.
- Examine your incoming lines. Ensure the male threaded adapters or fittings you are joining are clean, free of plastic burrs, and match the standard 3/4" NPT format.
- Wrap the male threads of your incoming pipe fittings with 3 to 4 uniform layers of high-density pink or white Teflon thread tape. Spin the tape clockwise along the thread path.
- Separate the union by unscrewing the large central collar nut completely. Set the internal rubber O-ring aside in a clean zip-top bag to protect it from dust.
- Thread your prepared male fittings into the 3/4" FIP ends of the union blocks. Hand-tighten until snug, then use a strap wrench or wrench flats to turn an additional 1 to 1-1/2 turns. Do not over-torque.
- Inspect the internal compression track. Ensure it is entirely clear of tape fragments, re-seat the rubber O-ring firmly back into its circular groove, and line both piping ends up flush.
- Slide the large central union locking nut over the matching flange, thread it onto the receiving body block, and hand-tighten until secure. Turn on your system pumps and inspect for leaks.
Pro Tips:
- Never Apply Liquid PVC Solvent Cement to Threaded Union Ends.
CRITICAL SEPARATION WARNING: This fitting is engineered with FIP internal threads, making it completely a mechanical screw-together connection block. Never apply clear liquid PVC primers or solvent welding glues to these internal threads. Liquid PVC cement breaks down the plastic walls chemically to fuse slip fittings. Applying it to threads will ruin the precision NPT pitch, weld your equipment permanently shut, and completely defeat the purpose of installing a quick-disconnect union.
- Do Not Mix Tape and Pipe Dopes Simultaneously on Plastic Threads. When sealing the threaded connections, choose one thread sealant method exclusively. If you prefer Teflon tape, use tape alone. If you prefer paste-type non-hardening thread sealants, apply dope alone. Combining Teflon tape and paste dope simultaneously on plastic PVC threads creates a slick, over-lubricated tracking layer that can cause you to accidentally drive the male fitting too deep, splitting the 3/4" white union female housing right along the molded seams.
- Inspect and Lubricate the Internal O-Ring During Annual Sump Cleans. Every time you take this union apart for annual return pump maintenance or system flushes, take an extra 30 seconds to slide the rubber O-ring out of its circular track. Wipe away any trapped detritus, calcified mineral scale, or salt creep using a fresh towel soaked in warm vinegar. Apply a microscopic film of pure, reef-safe silicone plumbing grease to the ring before reassembly. This keeps the rubber highly flexible and prevents it from pinching or tearing when you screw the union back together.
