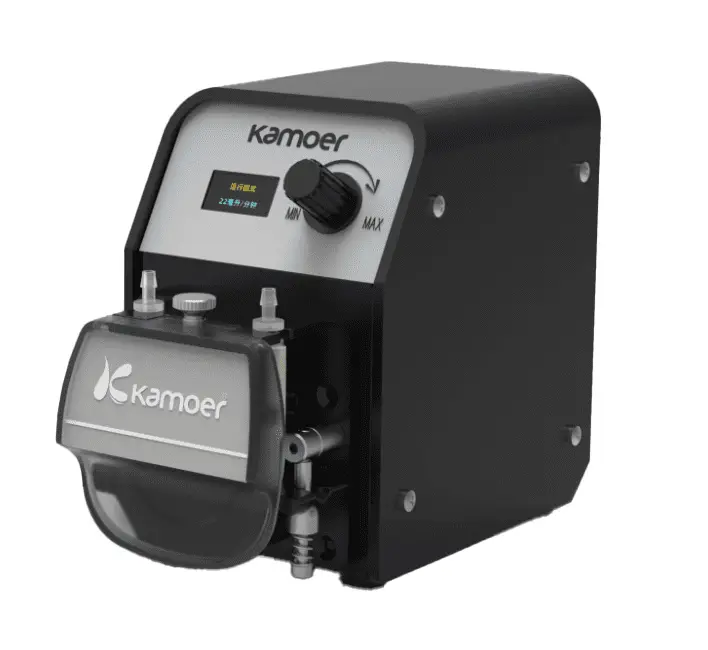

Kamoer FX-STP 3 WiFi Continuous-duty Peristaltic Dosing Pump
SKU: CV-KAM-FXSTP3
MSRP: $ 399,99
-
Available Through Authorized Retailer
- Closed-Loop Stepper Precision: Actively tracks and corrects missed physical motor steps in real-time, maintaining unmatched flow consistency against system backpressure.
- True 24/7 Continuous Operation: Industrial-grade internals are heavily robust and rated for continuous constant duty without overheating or experiencing flow drift.
- Expanded 150 mL/min Output: Offers a wider operational window than legacy versions, adjusting from 1.0 to 150.0 mL/min in ultra-fine 0.1 RPM increments.

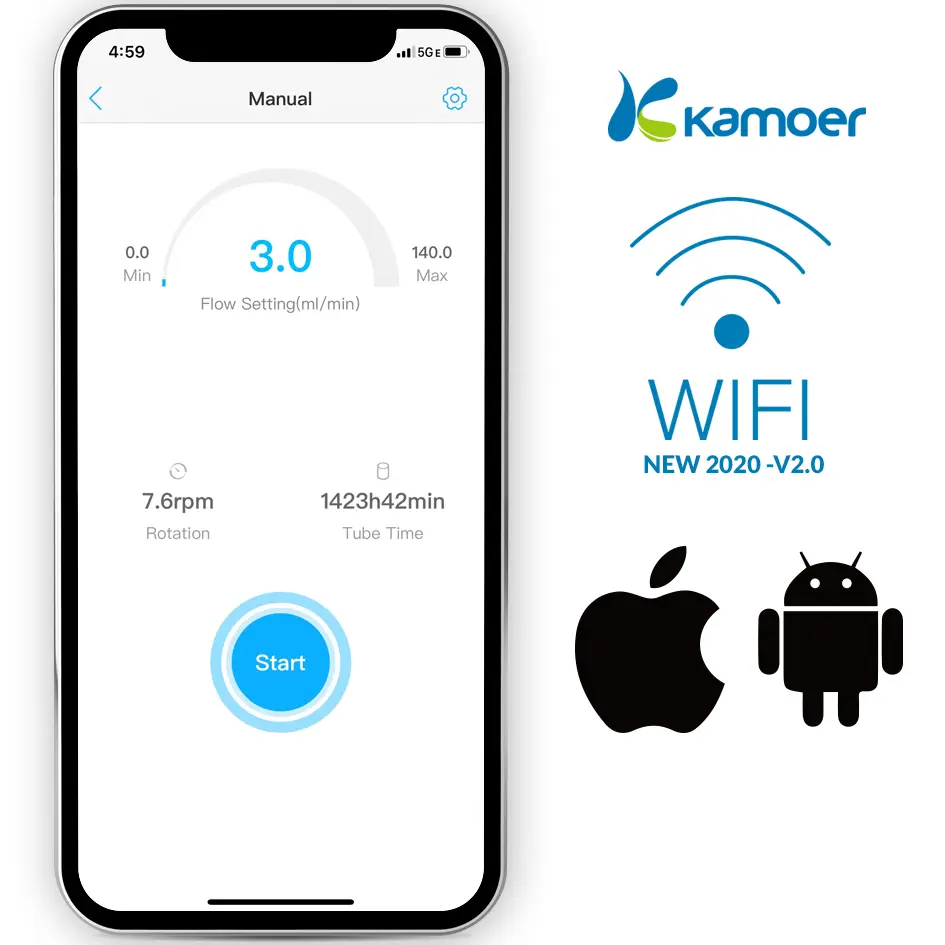

- Intelligent WiFi Cloud Control: Syncs directly to the Kamoer Remote App to let you adjust flow rates, track historical trends, and review pump life status from any smartphone.
- Onboard Dial & LCD Interface: Equipped with a tactile rotary encoder wheel and local display screen, allowing full standalone programming without requiring a phone.
- Tube Wear Lifetime Monitor: Features an integrated usage countdown timer with an automated alarm notification to remind you exactly when internal lines require a fresh replacement swap.
Kamoer
Premier Chinese manufacturer of medical-grade precision peristaltic and diaphragm pumps since 2006.
Kamoer FX-STP 3 Continuous-Duty Peristaltic Pump (SKU: KAM-FXSTP3)
The Kamoer FX-STP 3 Continuous-Duty Peristaltic Dosing Pump (SKU: KAM-FXSTP3) is an authentic, professional-grade fluid management instrument distributed by CoralVue to provide unmatched parameter stability in high-demand marine reef aquariums. While traditional dosing pumps are engineered to run for only a few combined minutes per day to deliver quick bursts of standard supplements, calcium reactors demand something entirely different: a steady, non-stop stream of water 24 hours a day. Gravity valves and basic aquascaping lines frequently clog with salt creep or organic film, forcing reef builders to constantly recalibrate their equipment. The FX-STP 3 overcomes this challenge by using a heavy-duty peristaltic drive that forces water forward at a predictable, high-pressure metered rate.
The defining upgrade of this third-generation unit centers on its advanced Closed-Loop Stepper Motor Drive. In standard open-loop pumps, an unexpected restriction or a shift in system backpressure can cause the motor to drop steps, causing your effluent output to drift lower over time. The FX-STP 3 features integrated position feedback sensors that monitor the motor's rotation, instantly making microscopic speed changes to compensate for resistance. Driven by the redesigned KCS3 3-roller pump head, this high-performance machine delivers up to 150 mL/min with a robust 6,000-hour rated motor lifetime. Fully managed through local controls or over a standard 2.4GHz home WiFi network, it provides a stable environment for hard corals to flourish.
Key Features
Maintains Rock-Solid Alkalinity Control: Eliminates the daily flow variations that cause calcium reactor effluent levels to shift, locking your water chemistry down.
Retains Settings Through Power Losses: Internal flash memory logs your customized flow rate, ensuring the pump safely resumes its exact settings the moment power returns.
Allows Changes on the Fly: The intuitive rotary encoder wheel lets you tweak or increase flow speeds instantly while the pump is running without causing system interruptions.
(Note: This retail package includes (1) fully assembled Kamoer FX-STP 3 main unit, a 24V DC power supply, clear connection tubes, and line reducers. Calcium media and carbon dioxide regulators are sold under separate product categories).
Kamoer Specialty Dosing Pump Sizing Continuum
| Model Classification | Factory SKU Identifier | Primary Operating Mechanism | Max Output Velocity | Intended System Application |
|---|---|---|---|---|
| Kamoer F1 Intelligent Doser | CV-KAM-F1 | Intermittent Standard Stepper | ~33 mL/min Max | Bulk Calcium/Alkalinity Additives |
| Kamoer FX-STP 3 Workhorse | KAM-FXSTP3 | Continuous Closed-Loop Stepper | 150 mL/min Max | Calcium Reactors & Constant Feeds |
What’s Included:
(1) Kamoer FX-STP 3 Main Dosing Unit with KCS3 3-Roller Head Pre-Installed
(1) 24V DC 2A Heavy-Duty External Power Supply Transformer
(1) 1-Meter Length of High-Performance 3.2mm x 6.4mm Internal Silicone Tubing
(1) 1-Meter Length of Heavy-Walled 6.4mm x 9.6mm Outlet Outer Tubing
(1) Straight Reduction Line Adapter Fitting (1/8in to 1/4in)
Technical Specs:
Official Manufacturing Title: Kamoer FX-STP 3 WiFi Continuous-duty Peristaltic Dosing Pump
SKU / Factory Part Identifier: KAM-FXSTP3
Motor Drive Architecture: Automated Closed-Loop Heavy Stepper Array
Adjustable Output Window Scale: 1.0 to 150.0 mL per Minute (1mL/min−150mL/min)
Fine Speed Regulation Resolution: 0.1 RPM Incremental Adjustments
Maximum Drive Power Consumption: 50 Watts (24V DC Output Frame)
Estimated Structural Motor Service Life: 6,000 Operational Continuous Hours
Pump Head Architecture: KCS3 3-Roller Configuration Assembly
Integrated Logic Control Framework: Local Rotary Dial Interface or 2.4GHz App Connectivity
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Unbox your Kamoer FX-STP 3 pump. Mount the heavy metal enclosure onto a secure wall shelf or your aquarium cabinet side wall. Pro Tip: Ensure the pump sits elevated well above your sump's high-water mark to shield the ventilation ports from salt creep or moisture build-up.
- Connect your intake water line to the left barb on the KCS3 head assembly. Route your output line from the right barb directly into your calcium reactor's bottom inlet water manifold. Keep your total line run under 8 feet to prevent excessive backpressure.
- Plug the heavy-duty 24V power block into your wall outlet and route the barrel connector into the pump's rear jack. The onboard LCD screen will illuminate, showing your current flow rate.
- Open your phone's App Store and install the Kamoer Remote App. Follow the step-by-step setup guide to connect the doser to your 2.4GHz home WiFi network for remote monitoring.
- The Speed Calibration Test: Place your output line into a graduated cylinder. Use the onboard rotary wheel or the app menu to run a standard 1-minute test flow. Check the amount of water collected and type the exact volume into your app to calibrate the pump's accuracy profile.
- Press the rotary dial inward to start the pump. Turn the wheel clockwise or counter-clockwise to dial in your required effluent flow rate. The pump will immediately lock on and ramp up to that speed line.
Pro Tips:
- Trust the Automated Wear Timer Over Pure Visual Tubing Inspections. Because continuous duty pumps keep their rollers spinning 24 hours a day, the internal silicone line is subjected to millions of compressions. Even if a line looks perfectly fine from the outside, the inner walls will slowly fatigue over time. Don't wait for a split tube to cause an emergency leak. Keep an eye on the FX-STP 3's built-in digital life timer, and change out your internal lines as soon as the maintenance reminder alerts you.
- Apply a Film of Silicone Lubricant to the Internal Rollers to Suppress Noise. The KCS3 pump head is engineered to run remarkably quiet, but running metal rollers over dense silicone tubing can generate minor friction noise over time. When replacing your inner tubing lines, apply a thin smear of 100% pure food-grade silicone grease across the roller bearings and the tube tracking line. This easy maintenance trick reduces friction wear and keeps the pump running near-silent inside your cabinet.
- Keep an Extruded 1/4" Check Valve on the Intake Line to Eliminate Air Clogs. When drawing water up out of a sump compartment to feed a high-pressure calcium reactor, micro bubbles can sometimes travel up your line and form an air lock. To maintain a steady prime, install a high-quality plastic check valve right at the start of your intake line inside the sump. This simple upgrade stops water from draining backward when you pause the system for maintenance, keeping your line primed for a smooth, instant restart.
