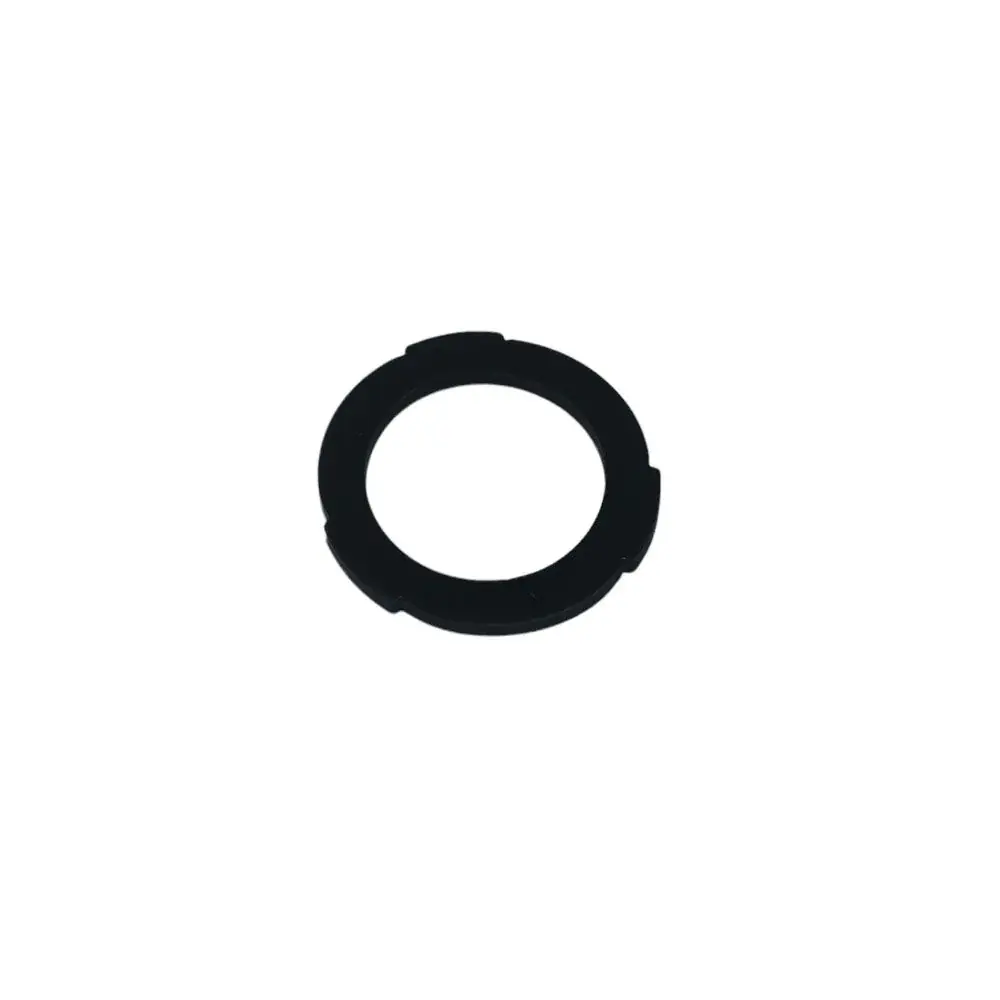

Octo VarioS 2S / 4S Shim
SKU: ROP-VAR24-SHIM
- Genuine OEM Direct Replacement: Authentic factory-spec internal rotor spacing washer designed specifically for small-to-mid-frame Reef Octopus VarioS skimmer pumps.
- Precise Volute Clearance Calibration: Regulates the strict spacing between the spinning pinwheel needle blades and the front volute casing to prevent face friction.
- Ultra-Low Friction Polished Polymer: Fabricated from a high-density, self-lubricating composite material engineered to withstand high-rpm wear.
- Stabilizes Axial Tolerances: Eliminates front-to-back shaft play, stopping the magnetic rotor from chattering or rattling inside the motor housing.
- 100% Inert Reef-Safe Matrix: Completely non-metallic formulation cannot pit, rust, or leach heavy plasticizers into sensitive marine environments.
- Micro-Sized Slide-On Fitment: Slides effortlessly over the polished ceramic axle shaft during routine seasonal pump deep-cleans.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS 2S & 4S Skimmer Pump Impeller Space Shim
The Reef Octopus VarioS 2S & 4S Skimmer Pump Impeller Space Shim (SKU: ROP-V24S-SHIM) is an authentic factory-spec internal spacing washer distributed by CoralVue to maintain micro-precise tolerance parameters inside your fractionating skimmer pump. Unlike standard return pumps that move clear columns of water, skimmer pumps like the VarioS 2S and 4S rely on specialized needlewheel impellers to smash massive pockets of incoming air into dense clouds of microbubbles. To achieve this high-velocity shearing action without grinding the plastic parts down, the spinning pinwheel face must sit exactly a fraction of a millimeter away from the front intake volute face.
This tiny, high-precision structural shim slides right onto the polished ceramic axle shaft, serving as a low-friction mechanical stop buffer between the rotor assembly and the rubber end cushions. Over years of nonstop operation, the continuous physical pressure and fine calcified mineral deposits inside the skimmer can slowly shave down this tiny washer. If this tracking shim wears thin, cracks, or goes missing during a routine cleanup teardown, the entire magnetic rotor will shift out of alignment. This alignment loss results in a harsh rattling sound, scratched volute plastic, and unbalanced spinning forces that can snap the ceramic axle or fry the engine stator entirely. Dropping a fresh OEM shim onto your shaft assembly completely restores pristine internal tracking spacing, keeping your protein skimmer running smooth, silent, and highly efficient.
Key Features
True Factory Sizing Tolerances: Bored out with a flawless internal diameter tailored specifically to slide onto the small-to-mid-frame VarioS ceramic axle shafts.
Anti-Binding Structural Performance: Smooth, low-friction surface finish lets the impeller hub spin at peak velocities without generating localized heat friction buildup.
Saltwater-Inert Resilience: Completely immune to structural calcification, raw waste acids, organic sludges, and aggressive citric acid chemical cleaners.
Note: This replacement component consists of the single internal spacer shim washer only. Pinwheel impellers, ceramic shafts, rubber end caps, and pump bodies are sold separately.
Verified Hardware Compatibility
Reef Octopus VarioS Skimmer Pumps: Form-cut explicitly as the matching internal spacing shim for the VarioS-2S Controllable Skimmer Pump and the VarioS-4S Controllable Skimmer Pump.
(Note: This small-frame hardware is configured for 2S and 4S models. Large-bore systems like the VarioS-6S utilize wider ceramic axle paths and require larger, model-specific replacement shims).
What’s Included:
(1) Reef Octopus Replacement VarioS 2S / 4S Pinwheel Impeller Rotor Space Shim Washer
Note: Fragile ceramic axles, rubber isolation caps, needlewheel impellers, and volute covers are sold separately.
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS 2S / 4S Impeller Shim
SKU / Factory Part Identifier: ROP-V24S-SHIM
Material Matrix Composition: High-Density Self-Lubricating Low-Friction Marine Polymer
Profile Configuration: Micrometric Flat Spacer Shim Ring
Primary Function: Axial Clearance Stabilization & Pinwheel-to-Volute Friction Prevention
- Turn off your pump controller and pull the main AC/DC power supply out of the wall outlet to kill all electricity before handling internal mechanics.
- Disconnect the skimmer's flexible air intake line, uncouple the plumbing unions, and slide the VarioS pump out of your skimmer's mounting track.
- Twist the front volute cover face counter-clockwise to open up the wet impeller chamber, and carefully draw the magnetic rotor out of the motor cavity.
- Note the exact order of the internal pieces on the shaft: ensure you locate the old or worn shim washer positioned right against the base of the rotor hub or rubber cushion.
- Clean the ceramic axle shaft with a soft towel to clear away any stuck-on organic slime, biofilm, or gritty salt crystals.
- Slide the new ROP-V24S-SHIM washer straight onto the ceramic shaft, reinsert the impeller rotor into the motor cavity, secure the volute cover clockwise, and reinstall.
Pro Tips:
- Never Lose Track of This Washer During Maintenance Cleans. Because this spacing shim is exceptionally thin and translucent or small in design, it can easily stick to a layer of wet organic slime on the back of the impeller hub when you pull the pump apart. If you wash the rotor over an open sink without noticing, this tiny shim can easily wash down the drain line. Always disassemble your pump over a secure container or towel to keep this vital spacing ring from going missing.
- Soak the Shaft and Shim in Citric Acid to Prevent Scaling. Because skimmer pumps operate inside dynamic zones with heavy air-stripping currents, calcium carbonate scale will naturally drop out of your saltwater column and bake onto the warm internal ceramic axle and shim surface over time. If left uncleaned for months, this rough crust locks onto the plastic, acting like sandpaper that accelerates structural wear. Every 3 to 4 months, soak the internal wet components in a warm bath of citric acid powder to keep them perfectly smooth.
- Always Confirm the Position of Your Rubber Bushing Caps. When reassembling your VarioS-2S or 4S internal drive assembly after sliding the new shim into position, double-check that the small rubber isolation caps are seated squarely on both the very front and back tips of your ceramic shaft. Operating the skimmer pump without those matching rubber alignment cushions will allow the shaft to float loosely inside the bay, entirely overriding the balancing work of your fresh spacer shim and causing loud vibration rattles.
