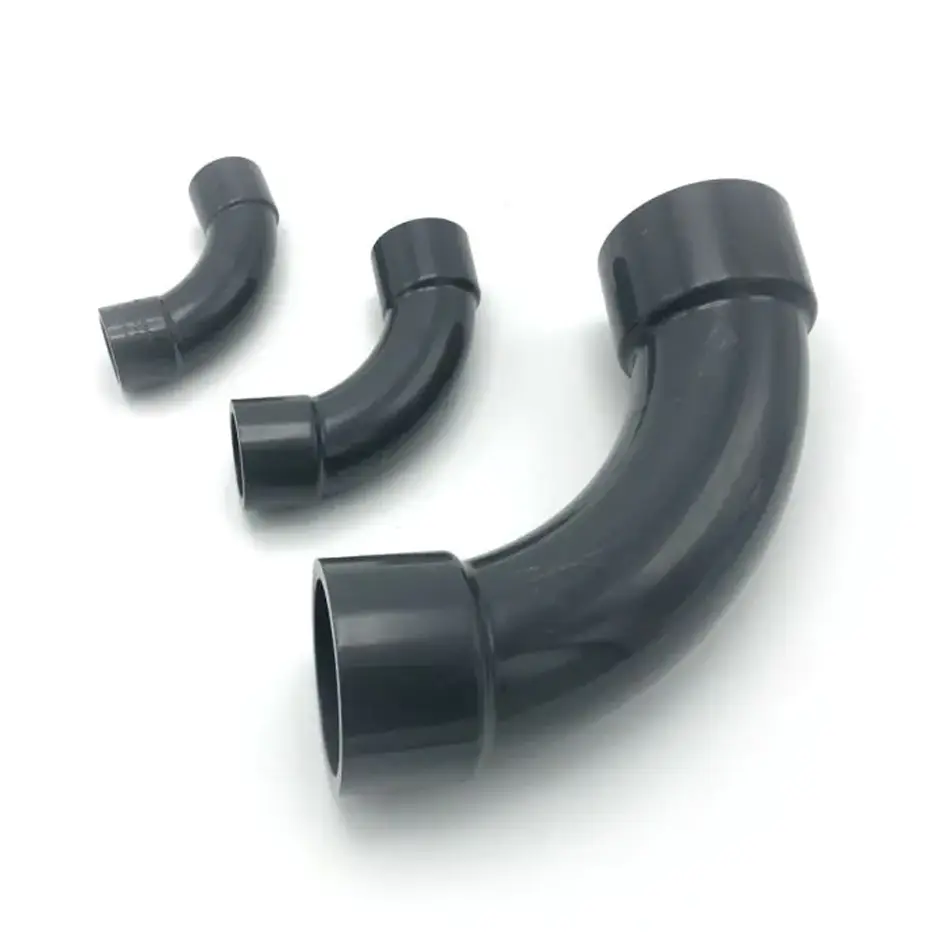

25mm Metric Sweep Elbow
SKU: PVC-SWP-25
- High-Flow Sweeping Radius: Replaces restrictive sharp corners with a smooth, elongated 90-degree curve to minimize return pump head pressure loss.
- Double Slip Sockets: Dual female slip connections are precision molded for permanent, leak-free solvent welds with standard 25mm metric rigid pipe.
- Aquarium-Grade Dark Gray Finish: Clean industrial visual aesthetic aligns perfectly with modern sumps, professional reactor loops, and cabinetry work.
- 100% Reef Safe Construction: Free from volatile heavy metal stabilizers and toxic plasticizers, ensuring absolute safety for sensitive corals, fish, and invertebrates.
- Heavy-Wall Structure: Injection molded from top-tier unplasticized PVC (uPVC) to eliminate structural flex and mute high-velocity fluid noise.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
CoralVue 25mm Metric Sweep Elbow 90-Degree Fitting (SKU: PVC-SWP-25)
The CoralVue 25mm Metric Sweep Elbow (SKU: PVC-SWP-25) is an elite fluid dynamics component engineered to enhance flow rates and optimize pump efficiency within tight marine aquarium plumbing layouts. Standard sharp-angle 90-degree elbows are notorious for causing dramatic pressure drops and localized turbulence as water crashes into the interior walls. This sweeping, long-radius design guides high-velocity water through a smooth, gradual transition, allowing your return system to retain maximum kinetic energy while reducing overall strain on your main circulation pump.
Molded to precise aquaculture tolerances, this dark gray uPVC fitting features a 25mm female slip socket on both ends. It is designed to host standard 25mm metric rigid piping via a traditional solvent-weld connection. By utilizing these sweep elbows on your primary return lines, manifold supply loops, and open-drain drops, you can achieve significantly higher turnover rates without upgrading to a larger, more power-hungry return pump.
Key Features
Friction-Minimized Bore: The smooth internal walls prevent calcium build-up and organic film accumulation, ensuring long-term plumbing efficiency.
Acoustic Dampening: The gradual curve minimizes structural pipe vibration and water crashing noises, contributing to a quieter aquarium cabinet environment.
Premium uPVC Build: Offers exceptional structural resistance against ozone, chemical additives, and highly concentrated marine environments.
(Note: This retail SKU contains (1) individual standalone CoralVue 25mm Sweep Elbow fitting. Solvent primers, cements, and rigid piping are sold under separate product categories).
What’s Included:
(1) CoralVue PVC-SWP-25 25mm Metric Sweep Elbow Fitting
Technical Specs:
Official Manufacturing Title: 25mm Female Slip x 25mm Female Slip 90-Degree Sweep Elbow
SKU / Factory Part Identifier: PVC-SWP-25
Fitting Angle Configuration: 90-Degree Long Radius Sweep Orientation
Fitting Connection Port A: Accepts standard 25mm Metric rigid pipe (Female Slip Receiver)
Fitting Connection Port B: Accepts standard 25mm Metric rigid pipe (Female Slip Receiver)
Primary Material Composition: Heavy-Wall Unplasticized Polyvinyl Chloride (uPVC)
Maximum System Pressure Rating: Up to 150 PSI continuous operational threshold
Maximum Thermal Operating Limit: 140°F (60°C) continuous service capacity
Primary Injection Color Finish: Dark Industrial Gray
While most of our equipment carries a one-year manufacturer's warranty, consumable products like fish and coral foods are not covered under traditional warranty terms due to their perishable nature and varied storage conditions. However, we fully stand behind the quality of every product we sell. If you experience any issues with your food purchase shortly after receiving it, such as concerns about freshness, packaging integrity, or product quality, please contact us at [email protected]. We're committed to making it right and will work with you to resolve any problems quickly and fairly.
- Ensure both 25mm metric rigid pipes are cut perfectly square at a 90-degree angle and completely deburred along the edge.
- Thoroughly wipe down the interior sockets of the sweep elbow and the exterior tips of the mating pipes using a dry cloth to eliminate dust.
- Apply a thin, consistent layer of high-quality PVC primer to the inside of both sweep elbow sockets and the outside of the 25mm pipe tips.
- While the primer is active, apply an even layer of PVC solvent cement over the primed areas.
- Insert the 25mm pipe firmly into the sweep elbow socket until it seats completely against the internal stop, turning it roughly 1/4 turn to distribute the cement evenly.
- Hold the joint under firm pressure for 15 to 20 seconds to prevent the pipe from backing out while the cement sets. Repeat for the second port.
- Let the system cure undisturbed for a full 24 hours before filling it with water or testing it under dynamic system pressure.
- Do Not Attempt to Glue Imperial Pipe Directly Into This Metric Fitting.
CRITICAL AQUARIUM PLUMBING DESIGN TIP: This sweeping elbow is engineered strictly to metric manufacturing specifications. The dual internal sockets accommodate only standard 25mm metric rigid pipe. Do not attempt to force standard domestic 3/4" Schedule 40 or Schedule 80 pipe into these slip ports. The dimensional variances will cause structural joint failure or catastrophic leaks under standard system pressure.
- Accounting for Space Constraints. Due to the optimized, extended radius design that minimizes fluid friction, sweep elbows are physically longer than traditional hard-angle 90-degree elbows. Ensure you map out your cabinet spatial margins in advance, particularly when trying to fit multiple returns or manifold drops into compact sump spaces.
- Laminar Flow Maintenance. To gain the maximum structural benefit of a sweep elbow on your return line, try to allow a straight run of at least 3 to 4 inches of rigid pipe before and after the fitting. This permits the water column to fully stabilize into an efficient laminar flow state, shedding fluid turbulence before entering your bulkheads or display returns.
