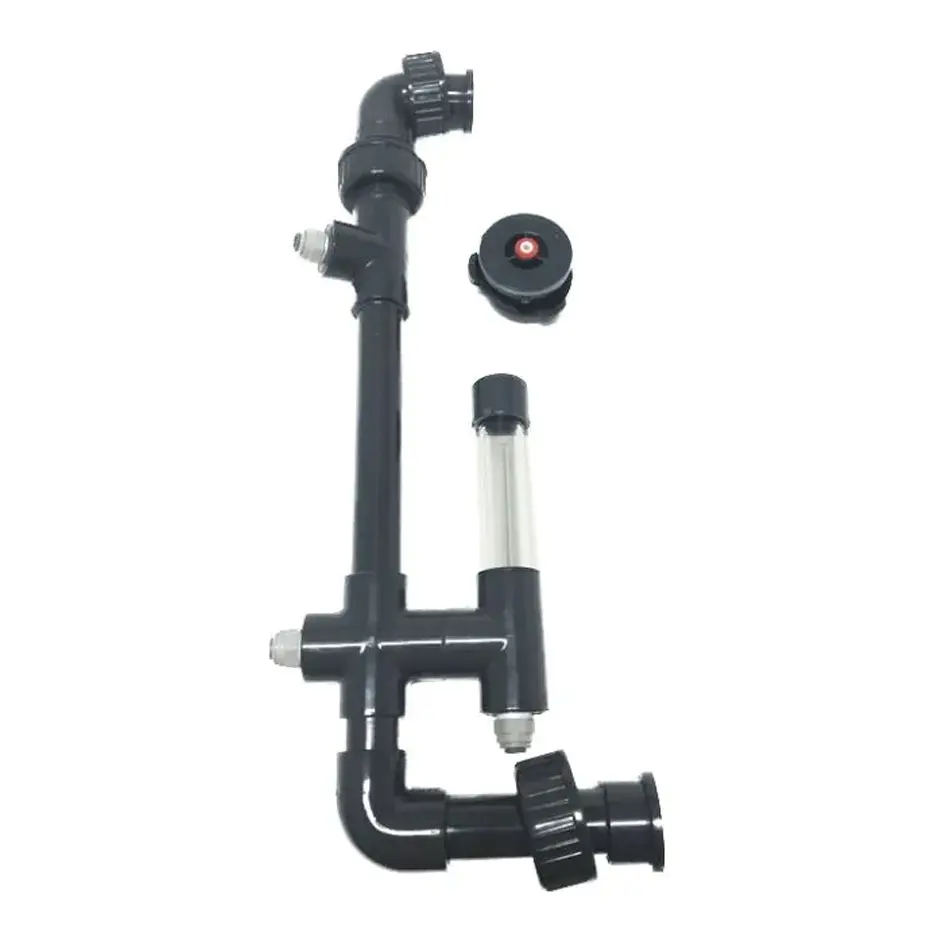

Octo CR-140 Calcium Reactor Plumbing Kit
SKU: ROP-CR140-PK
- 100% Genuine OEM Replacement Kit: Manufactured directly by Reef Octopus as a precise, drop-in layout match to replace brittle or mineral-crusted hard plumbing lines.
- Pre-Assembled Manifold Array: Features the integrated multi-directional intake/discharge connection tee structure configured exactly to line up with factory reactor ports.
- Heavy-Impact Marine PVC Matrix: Molded using thick, pressure-stable black PVC that completely resists brittleness under continuous exposure to acidic, low-pH carbon dioxide environments.
- Low-Friction Threaded Union Nuts: Designed with ergonomic ribbed collar rings to allow effortless hand-tightening without damaging clear acrylic walls.
- Important Pump Compatibility Note: Calibrated exclusively to connect with the Aquatrance 2000 (18W) recirculation pump configuration. Not compatible with legacy OTP engines.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus CR140 Calcium Reactor Replacement Plumbing Kit (SKU: ROP-ACR140-PK)
The Reef Octopus CR140 Calcium Reactor Replacement Plumbing Kit (SKU: ROP-ACR140-PK) is an authentic, structural OEM hard-plumbing overhaul package distributed by CoralVue to preserve high-volume fluid circulation and prevent trace element tracking leaks. Calcium reactors function by continuously circulating aquarium water alongside pressurized carbon dioxide (CO2) within a closed loop, depressing internal pH levels to between 6.5 and 6.8 to cleanly dissolve crushed aragonite coral media. Because the entire internal manifold operates under continuous backpressure and a highly acidic fluid load, structural degradation to plumbing joints over years of operation is common. Hairline stress cracks along the metric union shoulders, split tee tracks from overtightening, or calcium scale freezing up the adjustment collars can cause bypass leaks—disrupting your tank's parameter stability.

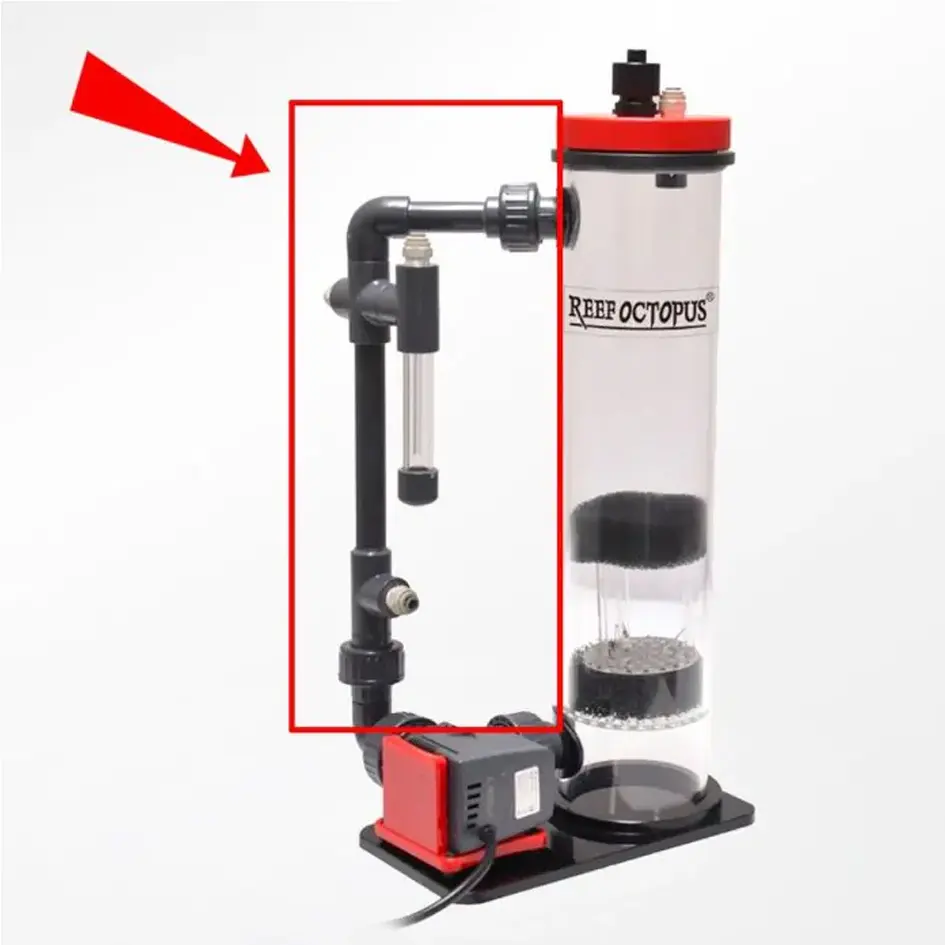

Molded to meet tight factory tolerances, this complete pre-configured plumbing tree slides right over the ports of your Reef Octopus CR140 5.5-Inch Single Chamber Calcium Reactor. The assembly incorporates the primary intake and return bypass tracking, complete with precision-molded union sleeves that clamp down seamlessly over the internal sealing gaskets. By swapping out an old, compromised plumbing array for this genuine factory refresh kit, you instantly eliminate slow, corrosive salt creep forming around the reactor base, quiet down fluid cavitations, and protect the steady, uninterrupted flow needed to keep your aquarium’s alkalinity and calcium lines locked true.
Key Features
Prevents Corrosive Sump Closet Salt Creep: Restores tight, leak-free fluid loops over the reactor chamber, keeping wet cabinet interiors completely dry and protected.
Bypasses Overtightening Stress Fractures: Provides a full structural replacement for hobbyists who accidentally cracked an original connection flange during a media change teardown.
Glueless, Tool-Free Modular Drop-In: Arrives cut and structured to factory scale; simply turn the hand collars to slide the replacement tree right onto your running gear.
(Note: This retail SKU contains (1) complete pre-assembled replacement hard plumbing tree assembly with union nuts. Aquatrance 2000 recirculation pumps, replacement rubber O-ring packs, acrylic reactor bodies, gas lines, and check valves are sold under separate product categories).
Reef Octopus Calcium Reactor Plumbing Grid
| Component Hardware Profile Class | Material SKU Identifier | Onboard Recirculation Pump Match | Target Reactor Cylinder Chassis |
|---|---|---|---|
| CR100 Reactor Plumbing Kit | ROP-ACR100-PK | Aquatrance 1200 (15W Engine) | Classic CR100 4-Inch Single Chamber |
| CR140 Reactor Plumbing Kit | ROP-ACR140-PK | Aquatrance 2000 (18W Engine) | Classic CR140 5.5-Inch Cylinder Array |
| VarioS CR140 DC Plumbing Kit | ROP-VCR140-PK | VarioS-2 CR DC Controllable Pump | VarioS CR140 High-Performance DC Core |
| VarioS CR200 DC Plumbing Kit | ROP-VCR200-PK | VarioS-4 CR DC Controllable Pump | VarioS CR200 Commercial Scale Cylinder |
What’s Included:
(1) Pre-Assembled Reef Octopus CR140 Replacement Metric Hard Plumbing Tree Manifold
Integrated Heavy-Duty Ribbed Plumbing Union Locking Nuts
Technical Specs:
Official Manufacturing Title: Reef Octopus CR140 Calcium Reactor Plumbing Kit
SKU / Factory Part Identifier: ROP-ACR140-PK
Structural Conduit Foundation: Hardened, Chemical-Resistant Low-pH Marine Black PVC
Primary Interface Mechanism: Manual Quarter-Turn Threaded Metric Friction Unions
Recirculation Flow Engineering: Calibrated for High-Volume Reverse-Flow Fluid Updraft Paths
Chassis Platform Compatibility: Form-Fitted strictly for the Reef Octopus CR140 (Aquatrance Pump Models Only)
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
- Unplug the Aquatrance 2000 recirculation pump and shut down your CO2 solenoid feed lines. Disconnect your inlet/outlet effluent feed lines and drain the reactor body completely.
- Locate the union locking nuts holding the old, damaged hard plumbing tree to the side and intake ports of the reactor body cylinder.
- Spin the union nuts counter-clockwise by hand to unlock the connections, and slide the damaged hard-plumbing assembly away from the acrylic body.
- The Critical Gasket Inspection: Inspect the embedded rubber O-rings located inside the receiving collars of the reactor ports. Wipe them clean with a soft rag. Pro Tip: If your original plumbing cracked due to hard mineral scale, take this opportunity to wipe down the rubber gaskets with a thin film of reef-safe silicone grease to keep them flexible and watertight.
- Take your fresh ROP-ACR140-PK replacement plumbing kit and align the cross-section manifold lines with the upper and lower connection ports of the reactor tower.
- Thread each union nut clockwise onto the reactor threads by hand. Tighten until snug. Warning: Tighten entirely by hand. Never use channel locks, wrenches, or metal pliers on the plastic union rings, or you will snap the soft PVC threads or crack the clear acrylic reactor mounts.
Pro Tips:
- Verify Your Pump Model Variant Before Buying This Kit. Because Reef Octopus has produced the popular CR140 platform for many years, there are multiple generational versions out in the wild. This replacement plumbing manifold (ROP-ACR140-PK) is custom-molded to match the modern configuration running the Aquatrance 2000 water pump. If you are attempting to maintain an older legacy CR140 unit from prior to the model shift that runs on the vintage, blocky OTP Pump, the physical lengths and port spacing dimensions are entirely different and this manifold will not align. Verify your pump is stamped with the "Aquatrance" logo before checking out.
- Never permanent-glue or use PVC cement on these modular connections. Even though this replacement plumbing assembly is crafted from standard black marine PVC, it is completely designed to function as a tool-free, friction-sealed loop using the pre-installed union collars. You should never apply permanent PVC solvent cements, purple primers, or thread tape to the reactor ports. The system depends completely on the thick rubber sealing O-rings inside the compression sleeves to maintain its watertight siphon. Gluing these links solid will permanently prevent you from breaking down your reactor for its quarterly media descaling or annual pump impeller service.
- Execute a Citric Acid Circulation Flush Every 6 Months to Prevent Valve Freezing. Because calcium reactors operate by intentionally supersaturating the internal water column with melted calcium carbonate and concentrated magnesium elements, mineral scale will naturally precipitate inside the hot, high-friction zones of your plumbing lines over time. This mineral crust will slowly build up inside the cross-sections of the PVC kit, restricting your fluid updraft velocity and lock-binding the metric threads. Every 6 months, pull the media out and run the reactor inside a separate bucket filled with warm water and citric acid or white vinegar for 2 hours. This safely melts away internal scale, keeping your plumbing tree flowing smoothly and performing at its factory design limit.
