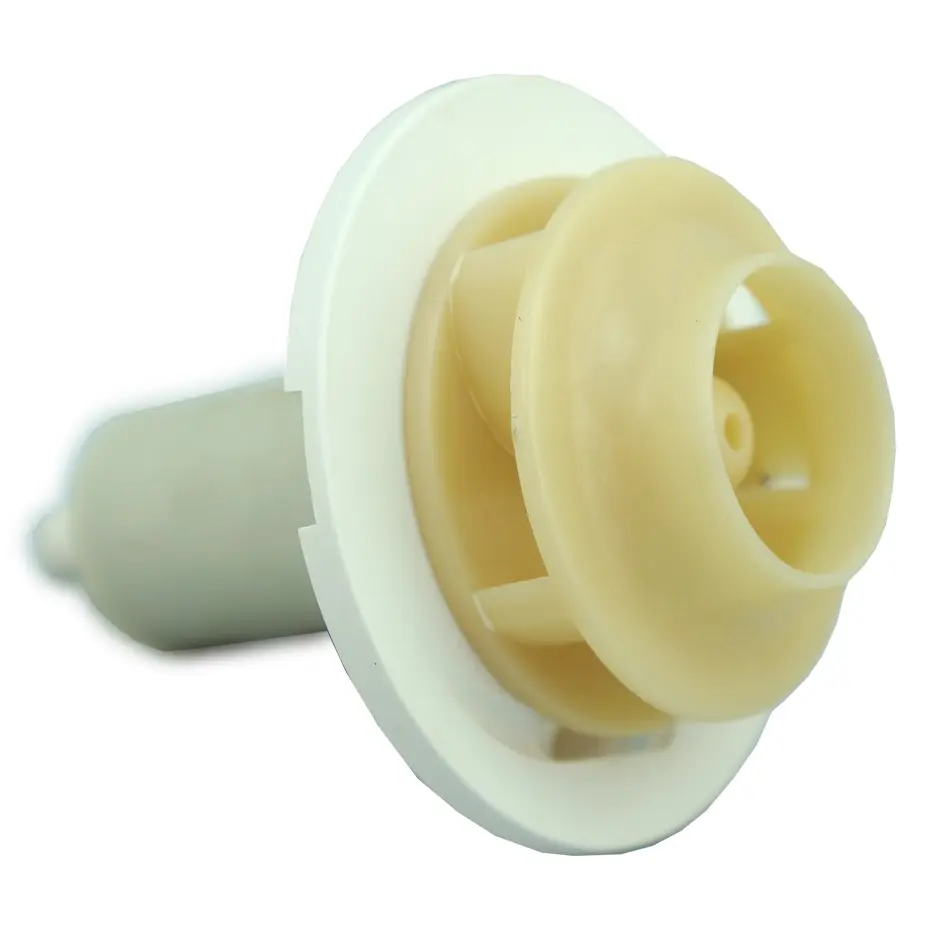

Octo VarioS 2 Water Impeller
SKU: ROP-VAR2-IMP
- Genuine OEM Direct Replacement: Authentic factory-spec water-propelling magnetic rotor assembly engineered explicitly for small-frame 24V Reef Octopus return pumps.
- Hydrodynamically Balanced Water Vanes: Features an open-vane curved blade design optimized to maximize head-height efficiency and GPH velocity in small-to-mid-sized return lines.
- Integrated Blended Magnet Rotor: Heavy-duty, permanent magnet core encapsulated in a seamless protective polymer shell to prevent raw saltwater contact.
- Ultra-Smooth Ceramic Bearing Interface: Includes internal low-friction bearing points built to slide effortlessly over your existing polished ceramic axle shaft.
- Reestablishes Silent Operation: Instantly cures lost flow velocity, pressure drops, and rhythmic chattering sounds caused by aged, scored, or mineral-crusted rotators.
- Drop-In Mechanical Restoration: Slides directly into the center of the pump stator cavity, requiring zero specialized calibration or structural alignment tools.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS 2 & RODC-2500 Replacement Water Pump Impeller (ROP-VAR2-IMP)
The Reef Octopus VarioS 2 & RODC-2500 Replacement Return Pump Impeller (SKU: ROP-VAR2-IMP) is an authentic factory-spec internal drive component distributed by CoralVue to completely revitalize the water-pushing velocity of your small-frame circulation loop. Small-frame 24V controllable DC pumps are the operational core of mid-sized reef filtration systems, running continuously to drive water up through return manifolds or aquarium plumbing networks. Because the intense kinetic strain of moving hundreds of gallons of water per hour rests entirely on the spinning blades of this rotor, the impeller assembly is the hardest-working moving element inside your pump housing.
Over years of continuous aquatic runtime, fine sand grains from the display tank, calcified mineral rings, and loose debris can migrate into the internal wet well of the pump. This debris creates intense friction that slowly pits the plastic vanes, scores the magnetic shell, and stretches out the internal bearing track. When an impeller becomes physically unbalanced or coated in scale, it manifests as a loud, chattering metal rattle, increased operational heat, and a noticeable drop in return flow line pressure. Swapping out a compromised drive core with this genuine OEM replacement immediately realigns your internal tolerances, smoothing out motor rotation and returning your system to whisper-quiet performance.
Key Features
Engineered for Velocity Retention: Stiff, reinforced plastic paddles prevent blade flexing under continuous pressure head loads, ensuring stable water turnover.
Seamless Corrosion-Resistant Encapsulation: Fully shields the strong internal magnets from aggressive saltwater exposure, preventing swelling and structural lockouts.
Dynamic Factory Balancing: Every rotor core undergoes electronic calibration to guarantee perfect axial balance, preserving your pump's internal bearing sleeve.
(Note: This replacement assembly includes the integrated magnetic rotor body and internal bearing sleeves only. Polished ceramic axle shafts, rubber isolation bushings, volute covers, and main pump motor blocks are sold separately).
Verified Hardware Compatibility
Reef Octopus Controllable DC Return Pumps: Sized explicitly as the native matching replacement water impeller for the VarioS-2 Controllable Return Pump and the legacy RODC-2500 Controllable Water Pump (Water/Normal Propeller Configuration).
(Note: This impeller features standard paddle blades meant for moving water. If you are servicing a protein skimmer pump, you require the alternative pinwheel/needlewheel variant. This model is not compatible with larger VarioS 4, 6, 8, or 10 pump frames).
What’s Included:
(1) Reef Octopus Replacement VarioS 2 / RODC-2500 Return Pump Magnetic Impeller Assembly
(Note: Ceramic axle shafts, rubber end cushion bushings, front volute plates, and electronic motor blocks are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS 2 / RODC-2500 Water Impeller
SKU / Factory Part Identifier: ROP-VAR2-IMP
Impeller Profile Configuration: Open-Face Multi-Vane Circulation Water Propeller
Material Composition: High-Flux Magnet Matrix Wrapped in Dense Inert Polymer
Primary Function: Water Kinetic Propulsion, Pressure Stabilization, & Hydraulic Turnover
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Power down your pump controller and pull the main AC/DC power brick from the wall socket to completely eliminate live electricity before handling internal mechanics.
- Disconnect your intake and output plumbing unions, lift the pump out of your sump tray, and twist the front volute cover plate counter-clockwise to open the impeller bay.
- Firmly grasp the front plate of the old impeller and pull it straight out of the motor block cavity. Caution: The internal magnetic pull will resist release—hold tight to prevent pinching your fingers.
- Inspect your existing central ceramic shaft and the deep rear bushing seat to confirm they are completely free of cracks, deep scoring lines, or rough calcium deposits.
- Take your new ROP-VAR2-IMP impeller, align its internal bearing channel over the center axle shaft, and slide it straight back into the open motor cavity carefully.
- Verify the impeller can spin smoothly by hand, line up your rubber housing gasket, secure the front volute cover clockwise, lock your plumbing lines, and restore power.
Pro Tips:
- Mind the Magnetic Snap When Reinserting the Rotor. The permanent magnet integrated into this controllable DC impeller core possesses an exceptionally strong magnetic attraction. When sliding the fresh replacement core back into the metal-lined stator housing, the magnetic pull will aggressively pull the impeller out of your fingertips to snap it inward. Hold the assembly firmly by its plastic front edge and lower it back into the chamber slowly to keep from slamming the ceramic axle or pinching your fingers against the motor wall.
- Perform a Citric Acid Descaling Soak Every Quarter. Because DC pumps create a minor amount of localized thermal energy during continuous operation, calcium carbonate and hard magnesium minerals will naturally drop out of your saltwater column and bake onto the warm walls of the impeller magnet over time. If left uncleaned for months, this rough crust behaves like coarse sandpaper, grinding down your bearings and cutting your GPH velocity. Every 3 to 4 months, soak the rotor in a warm bath of citric acid powder to dissolve the buildup safely.
- Always Check Your Axle Shaft and Bushings Concurrently. When diagnosing a noisy pump layout, don't just replace the impeller core on its own. Take an extra moment to run your fingernail along the length of your central ceramic axle shaft to check for rough scratching, and inspect your rubber alignment bushings for signs of ovalization. Operating a brand-new factory impeller on a warped axle or a chewed-up rear bushing will quickly degrade the fresh bearing walls of your new rotor, shortening its service lifespan prematurely.
