Octo Elite150S Acrylic Volute Cover (VarioS 2S Pump)
SKU: ROP-VAR2-VOL-E150S
- Genuine OEM Direct Replacement: Authentic factory-spec transparent skimmer pump volute chamber faceplate engineered specifically for the Reef Octopus VarioS-2S controllable motor.
- Premium Solid Cast Acrylic: Crystal-clear visual construction allows for immediate monitoring of air-to-water mixture rates and structural impeller blockages.
- Open-Volute Performance Tuning: Custom interior cavity layout built exclusively to optimize fluid fractionating dynamics inside the Elite series reaction columns.
- Airtight Venturi Input Collar: Features a specialized slide-on suction port structured to mate perfectly flush with factory air/water venturi injectors.
- Rotatable Orientation Mount: Seamlessly locks onto your VarioS-2S motor block housing at multiple angles to accommodate tight space-saving sump spaces.
- Bayonet Interlocking Rim Flange: Built with a toolless twist-and-lock configuration, eliminating the need for delicate or corrosion-prone metal screws.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

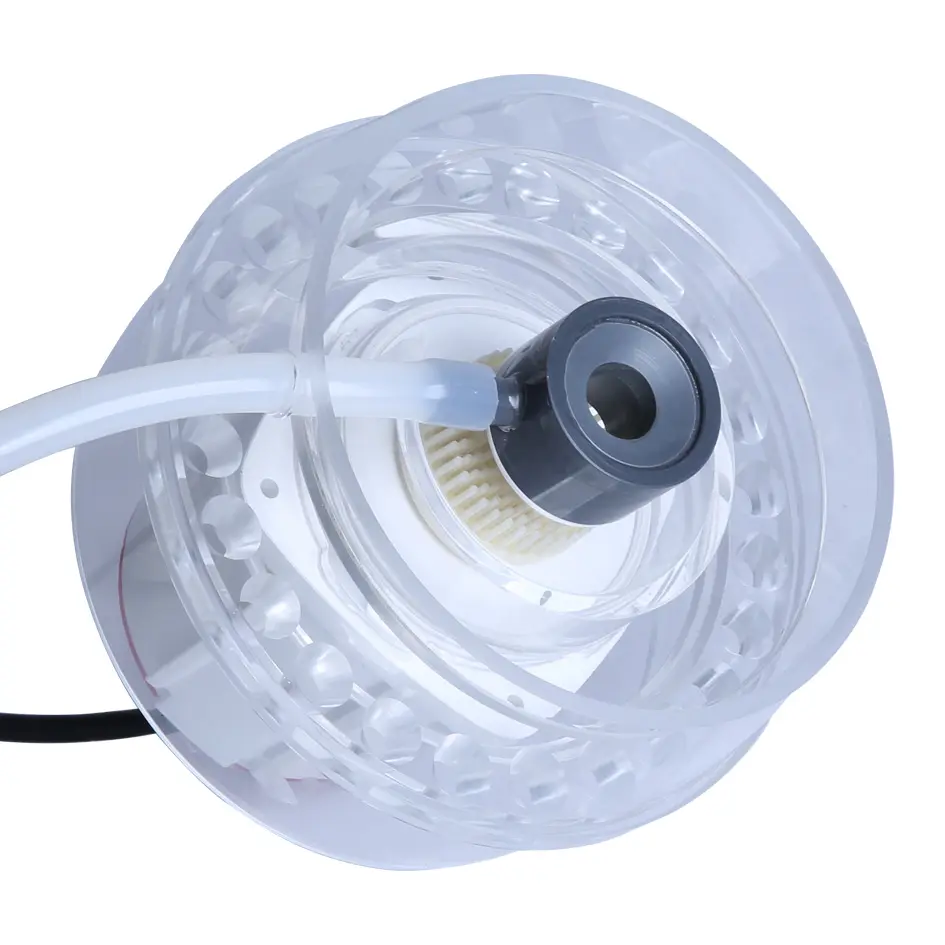

Reef Octopus VarioS-2S Clear Acrylic Volute Cover (ROP-VAR2-VOL-E150S)
The Reef Octopus VarioS-2S Clear Acrylic Volute Cover (SKU: ROP-VAR2-VOL-E150S) is an authentic factory-spec replacement front-enclosure component distributed by CoralVue to maintain the high-efficiency microbubble generation of your premium protein skimmer. Unlike standard return pump volutes that are molded from solid white or gray PVC to push water columns, the flagship Elite skimmer family features an "Open Volute" design optimization strategy. This faceplate is machined entirely from heavy-duty cast acrylic to let you look inside the active wet well, giving you real-time visual tracking of the spinning pinwheel needlewheel impeller, air-induction ratios, and internal cleanliness.
Sitting inside the turbulent base of an Elite 150 protein skimmer, the volute cover manages high-velocity microbubble shearing forces continuously. Over years of nonstop operation, small hitchhiking vermetid snails, loose carbon grains, or stray pieces of substrate can find their way into the pump face, causing deep micro-scratches on the interior walls or cracking the alignment tabs during heavy cleaning sessions. Operating a high-performance controllable DC skimmer pump with a cracked, warped, or loose volute cover undermines the venturi vacuum loop, resulting in a large drop in organic skimming collection, noisy performance, and fine bubbles leaking back into your sump tray. Replacing a worn or compromised faceplate with this original clear acrylic module ensures an absolute, airtight connection to keep your skimmer functioning at peak visual and mechanical capacity.
Key Features
True Elite Series Optimization: Stamped and polished to match the exact internal space restrictions and compression specs required for Elite 150 reaction chambers.
High-Clarity Monitoring Profile: Solid cast construction simplifies diagnostics, letting you spot trapped debris or calcium rings without turning off your filtration line.
Saltwater-Inert Resistance: Fully engineered to withstand high-concentration ozone gas injection, acidic cleaning solutions, and intensive salt scale friction loops.
Thread-Free Slip Porting: Front intake throat slides perfectly into the native Reef Octopus venturi nozzle, maintaining an air-tight seal under constant variable speed transitions.
Verified Hardware Compatibility
Reef Octopus Elite Skimmer Systems: Engineered explicitly as the native clear pump volute faceplate for the Elite 150-S In-Sump Skimmer, Elite 150INT Super Cone Skimmer, and the Elite 150SSS Space Saver Protein Skimmer (all powered by the VarioS-2S Controllable Skimmer Pump).
(Note: This clear volute cover can also be used as a premium alternative for legacy POV-DC1 skimmer configurations tracking the same core dimensions).
What’s Included:
(1) Reef Octopus Replacement VarioS-2S Clear Cast Acrylic Pump Volute Cover Faceplate
CoralVue(Note: Primary rubber housing O-rings, venturi air injection nozzles, pinwheel impellers, and primary pump motor frames are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-2S Pump Acrylic Volute Cover (Elite150sss/POV-DC1)
SKU / Factory Part Identifier: ROP-VAR2-VOL-E150S
Material Matrix Composition: 100% Optical-Grade Premium Cast Acrylic
Mount Interface Style: Interlocking Multi-Point Bayonet Friction Track
Primary Function: Venturi Air Injection Alignment, Impeller Containment, & Open-Volute Bubble Maximization
- Turn off your skimmer's pump controller and pull the primary 24V power brick from the wall socket to completely cut live electricity before handling the unit.
- Disconnect the flexible air silencing intake tube from the venturi throat, and lift the entire VarioS-2S pump out of the bottom of your skimmer body.
- Grip the outer edges of the clear acrylic volute face and rotate it counter-clockwise across the bayonet tracking to release it from the motor frame.
- Extract the primary rubber sealing gasket from the old cover tracking, wipe it clean of any slime, and seat it carefully into the tracking groove of your new ROP-VAR2-VOL-E150S plate.
- Align the clear replacement cover directly over your pinwheel impeller hub, press down evenly, and twist it clockwise until the locks click into place.
- Re-seat the pump into your skimmer base tracking, hook up your flexible air lines, slide the venturi straight into the intake neck, and restore system power.
Pro Tips:
- Never Clean Acrylic with Abrasive Scrub Pads or Hard Brushes. Because this volute face is manufactured from premium clear cast acrylic to provide maximum visual clarity inside your pump bay, never use green kitchen scouring pads, stiff wire brushes, or coarse scrubbers during maintenance. Heavy scrubbing will permanently cloud and scratch the clear plastic walls, destroying your view of the impeller. Always use a soft microfiber cloth, a delicate melamine sponge, or a soft toothbrush to clear away organic film safely.
- Use Only Pure Citric Acid Baths to Dissolve Calcium Build-Up. Given that skimmer pumps create significant air stripping and friction, hard calcium carbonate and magnesium scale will naturally drop out of your saltwater column and coat the clear interior walls of this volute over time. To clean off this rough white crust without scratching the acrylic, soak the volute face in a warm bath of water mixed with pure citric acid powder for 30 minutes. The scale will dissolve completely without degrading or fogging the clear finish.
- Always Confirm the Inner Rubber O-Ring Sits Flush. When twisting your new clear volute cover locked onto the motor block collar, always double-check that the black rubber housing gasket stays flat inside its registration slot. If the ring rolls out of alignment or pinches dry when you twist the acrylic cover closed, it will create a small gap in the pressure track. This gap will bleed fine microbubbles directly out of the side of the pump block, filling your sump with stray air rather than pushing it up the skimmer column. Use a tiny wipe of silicone lubricant on the ring to prevent binding.
