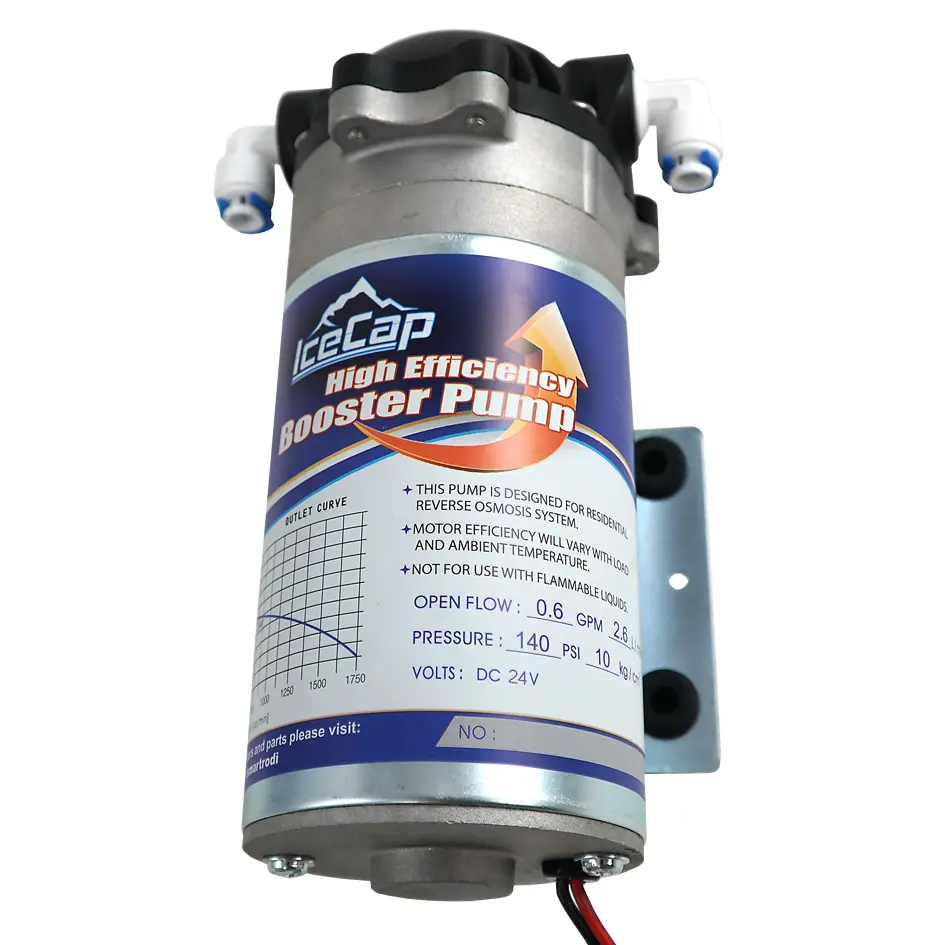

IceCap Reverse Osmosis Replacement Booster Pump
SKU: IP-RI-BP01H
- Direct OEM Smart RO/DI Fit: Factory-original replacement high-efficiency booster pump engineered specifically for the IceCap Smart RO/DI System and standalone IceCap Booster Pump Kits.
- Maximizes Pure Water Production: Elevates low municipal water pressure to optimal reverse osmosis membrane levels (65–85+ PSI), significantly speeding up pure water production per hour.
- Improves Waste-to-Product Ratio: Enhances Thin Film Composite (TFC) membrane rejection efficiency, reducing concentrated wastewater volume sent down the drain.
- Extends DI Resin Lifespan: Boosts primary membrane rejection rate closer to 98%+, lowering product water TDS before it reaches the deionization stage to prevent premature resin exhaustion.
- Core Motor Replacement Assembly: Ships as the direct drop-in pump unit, allowing aquarists to retain their existing mounting bracket, pressure switches, and 24V DC power harness.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
-
Refurbished by CoralVue; verified to factory specifications
-
FREE Shipping on orders over $75.00
-
Backed by a 90-Day Warranty
Replacement High Flow Booster Pump for the IceCap Smart RO/DI System
Key Features
- High-flow booster pump body designed specifically for the IceCap Smart RO/DI System (IC-RI1000).
- OEM replacement for the factory-installed integrated pump in the Smart RO/DI system.
- Pump body only; 1/4" quick-connect fittings and power supply not included and must be sourced or reused separately.
- Not compatible with or interchangeable with the IC-ROBPK universal booster pump kit.
- Not for use as a standalone add-on to standard 4-Stage IceCap RO/DI systems.
Ideal For:
- Existing IceCap Smart RO/DI System (IC-RI1000) owners whose factory booster pump has failed or reached end of life.
- Smart RO/DI system owners who want to keep their system running rather than replacing the full unit.
What’s Included:
(1) IceCap Reverse Osmosis Replacement Booster Pump (IP-RI-BP01H / IC-RI-BP01H)
(Note: Quick-connect elbow fittings, mounting hardware, and power adapter sold separately)
Technical Specs:
SKU / Factory Part Identifier: IP-RI-BP01H (IC-RI-BP01H)
Pump Type: High-Pressure Bypass Diaphragm Booster Pump
Operating Voltage: 24V DC
Working Current: Approx. 1.2A – 2.0A
Minimum Feed Pressure: 20 PSI
Target Boost Pressure: 65–85+ PSI
Port Type: Threaded Female NPT Ports (compatible with standard 1/4" OD push-connect male fittings)
Primary Compatibility: IceCap Smart RO/DI System (100 GPD), IceCap Booster Pump Kit, universal 50–150 GPD reverse osmosis units
WARRANTY
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 90-days
- Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Installation & Replacement Guidelines:
Shut off the cold water supply valve feeding the RO/DI system and unplug the electrical power adapter.
Open the filtered water output line or pressure tank valve to relieve residual line pressure.
Disconnect the 2-pin DC power lead connecting the old pump to the system wire harness or pressure switches.
Depress the release collets on the input and output quick-connect elbow fittings and remove the 1/4-inch RO tubing.
Unscrew and remove the old pump from its mounting plate or the Smart RO/DI frame.
Thread the quick-connect elbow fittings out of the old pump head and inspect their threads. Apply 2 to 3 wraps of Teflon tape before threading them securely into the new IP-RI-BP01H pump ports.
Fasten the new booster pump to the mounting plate using vibration-dampening rubber grommets.
Reconnect the RO feed line to the pump inlet and the membrane feed line to the pump outlet.
Connect the DC electrical wiring leads, slowly turn on the tap water feed, inspect the fittings for drips, and restore electrical power.
Pro Tips:
- Never Run the Booster Pump Without Water Supply. Booster pumps are positive-displacement pressure multipliers, not self-priming suction pumps. Always confirm that incoming tap water pressure is at least 20 PSI and that pre-filter sediment and carbon blocks are not clogged before powering on the pump. Running the pump dry causes rapid friction heat that destroys internal diaphragm seals.
- Wrap Male Threaded Fittings with PTFE Tape. When transferring or installing 1/4-inch NPT elbow connectors into the booster pump head, wrap the threads with 2 to 3 layers of plumber's PTFE tape. Hand-tighten the fittings and turn an additional 1 to 1.5 turns with a wrench. Avoid over-tightening, which can fracture plastic pump head ports.
