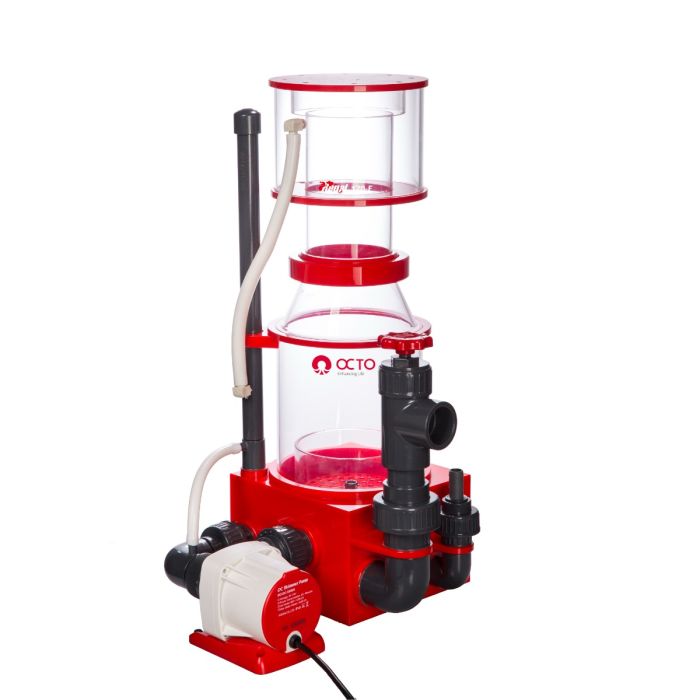

Regal 170EXT Recirculating Protein Skimmer

SKU
REGAL-170EXT

External Recirculating Skimmer Rated for Aquariums up to 300 Gallons

Footprint: 14.1″ x 11.8″ | Reaction Chamber: 7″ | Height: 23″
Controllable Pump: Reef Octopus RODC 3500s

170-EXT / Advanced Control Recirculating Protein Skimmer

The new and innovative Reef Octopus Regal 170-EXT recirculating protein skimmer supplies powerful filtration for aquariums up to 300 gallons where absolute control is necessary. The Reef Octopus Regal 170-EXT is constructed of high-quality cast acrylic that disassembles completely for cleaning. Its hybrid conical body naturally stabilizes and concentrates the organic rich foam as it rises.

RODC Skimmer Pump This Regal skimmer is quipped with a new generation Reef Octopus controllable Direct Current DC-3500S pinwheel recirculating skimmer pump which is the latest in variable speed flow technology and allows for refined control, enhanced performance and efficiency. The vast majority of skimmer pumps available to hobbyists are alternating current "AC" pumps (the type of power that comes out of your wall outlet).  Direct current pumps have several key advantages over traditional AC pumps.  Most notably, you can control the rotational speed of the motor, thus electronically control air and water flow rates into the skimmer.  Now the user can have the skimmer process more or less water just by the push of a button!!!



Bioload Handling

(Excluding sump)

  • Heavy
  • Medium
  • Light
  • 140 gallons
  • 200 gallons
  • 300 gallons
  • Latest in DC Controllable Technology
  • Variable Speed RO-DC 3500s Skimmer Pump
  • Detachable Controller with Waterproof Union
  • The Best in Recirculating Design
  • 7in Solid Constructed Hybrid (1/2 cone) Skimmer Body
  • High Volume Air Intake
  • Quiet and Energy Efficient Operation
  • Body Drain

Enhanced Control

This controller allows users to select between five preset speeds indicated by five lit LEDs.  The controller also features a feed/service and an On/Off button.  When the feed button is pressed, the skimmer pump shuts down and will automatically reactivate after 10 minutes.  Press the feed button a second time to resume normal operation. RO DC pumps feature a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.

The pump and controller are connected via a waterproof 3-conductor union.  The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90-degree intervals, meaning users can output water vertically (up or down) as well as horizontally.

Technical Specs

Hybrid Body: 7in
Footprint: 14.1in x 11.8in
Neck Size: 4in
Total Height: 23in
Output Size: 40mm / 1.25in
Output Height: 7.6in

Note: Requires Feed pump with a recommended feed rate of 1.5-2x system volume.

Suggested 300-600gph

Pump Information

Reef Octopus Variable Speed RODC 3500s Pinwheel Pump
Power Consumption: 25-40watts
Voltage: DC 24V
Air Draw: 800-1200lph / 28-42 SCFH*

*Air and water results will vary depending on aquarium setup
