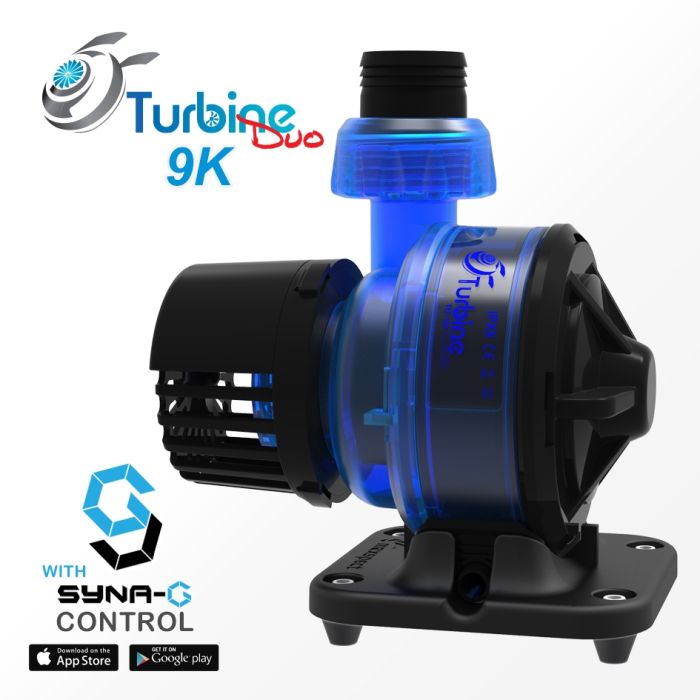

Maxspect Turbine Duo 9K

  • SKU: MAX-TD-9K

Multi Application and Expandable Water Pump

The first water pump that is configurable to the typical single input/output pump configuration as well as a dual input/output for additional flow reaching 2500gph!

Available Output Configurations

Single IN/OUT - Flow: 1,320gal    |    Head: 9ft    |    Wattage: 45w
Double IN/OUT -  Flow: 2,500gal    |    Head: 8ft    |    Wattage: 68w
Combined IN/OUT -  Flow: 2,250gal    |    Head: 7.5ft    |    Wattage: 68w


Features
Overview

The First Expandable DC Water Pump

The Maxspect Turbine Duo is the first EXPANDABLE water pump available for both freshwater and marine hobbysts.

It is capable of pushing 1,300 GPH using a single output or, best of all, add a second intake and output to the same pump and increase your flow to 2,500 GPH!  That is a total of 1,250 GPH per output.  Even better, combine the two outputs into a single output (adapter included) and get 2,250 GPH from a single output!

Versatile and Multi-purpose

The dual output design makes the Turbine Duo an ideal pump for multi-purpose applications such as a return pump(s) AND feed manifolds.  Or use the pump as a return pump AND media reactor OR chillers OR UV, etc

Compact Performance

The Turbine Duo features three (3) separate configurations. I can replace two "regular" pumps.  Break down the pump to a ultra compact powerhouse using far less space within your sump.

Outstanding Efficiency

The Turbine Duo offers high performance while consuming less energy than the competition.  It is incredibly quiet!

Complete Set of Accessories

Each Turbine Duo comes with a complete set of adapters and accessories for simple to install to almost any system right out of the box.
MORE DETAILS

Turbine Duo 9k Water Pump Specifications

Type: Internal Return / Flow Pump

Max Flow: 2,500gph
Max Head:13ft

Voltage: 24v DC
Wattage: 8-66w
Dimensions: 5.5 x 3.8 x 5.7in
Weight: 2.65lbs

Included Fittings

Intake x2: Intake screens w/ shield, 1in PVC slip fitting, nut, seal
Output x2: 3/4in PVC slip fitting, 1/2-3/4 tansitional barb fitting, 1-1 1/4 stepped barbfitting, nut, seal
Y-Tubing: Y Tube, 1in PVC slip fitting, 1-1 1/4in stepped barb fitting, nut, seal
Dual Outlet: Volute, Propeller

Duo Output Flow Specifications

Zero Head

Max Flow: 2,500gph
Max Wattage: 68
Max Head: 8ft

5 Ft Head

Max Flow: 1,200gph
Max Wattage: 60w
Efficiency: 26 G/w

Single Output Flow Specifications

Zero Head

Max Flow: 1,320gph
Max Wattage: 45
Max Head: 9ft

5 Ft Head

Max Flow: 925gph
Max Wattage: 40w
Efficiency: 24 G/w

Combined Output Flow Specifications

Zero Head

Max Flow: 2,250gph
Max Wattage: 68
Max Head: 7.5ft

5 Ft Head

Max Flow: 1,320gph
Max Wattage: 60w
Efficiency: 24 G/w
